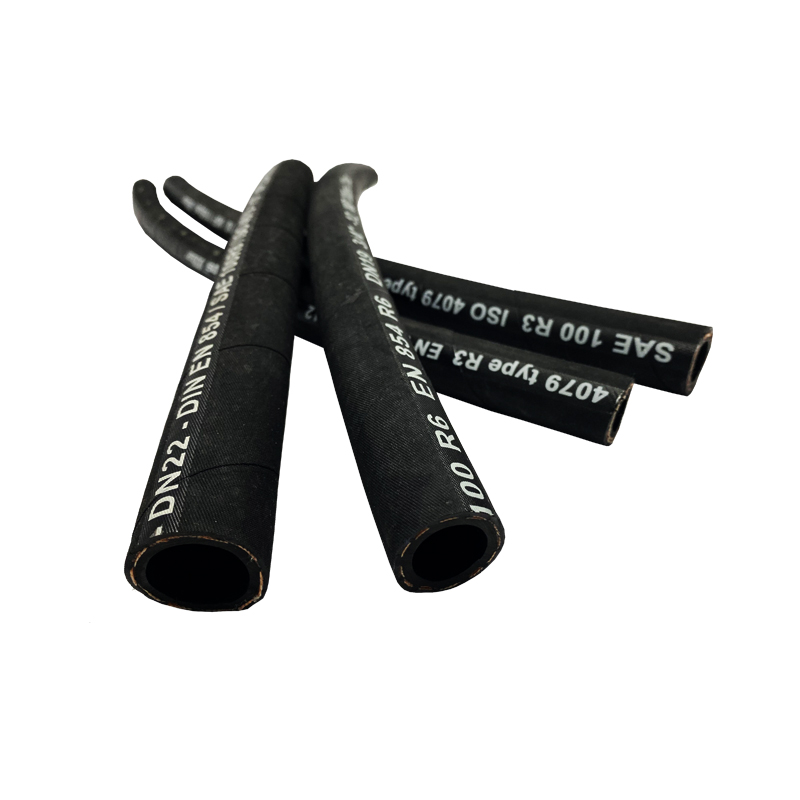

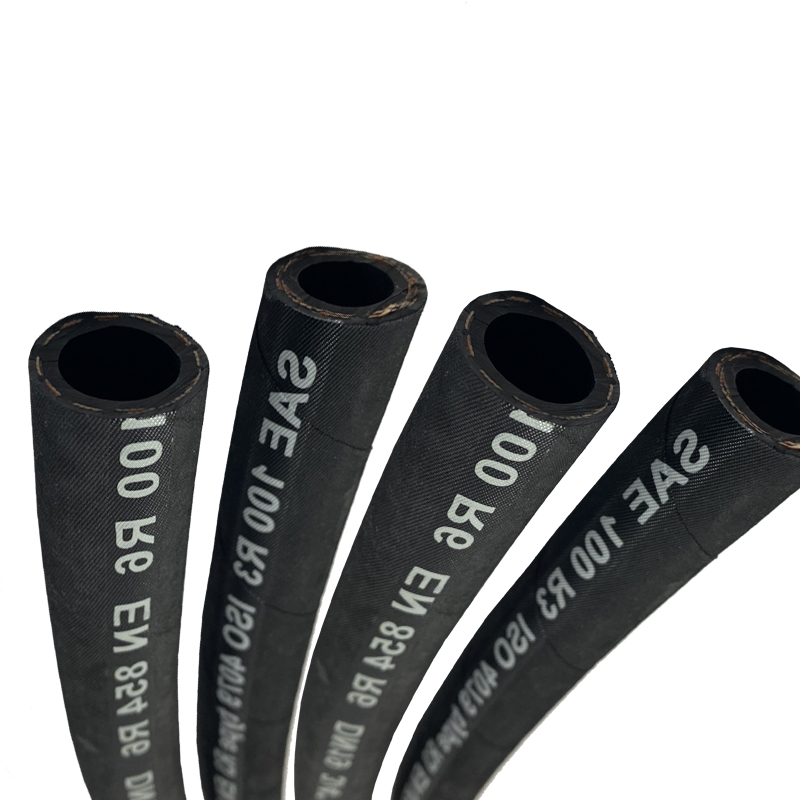

Hydraulic hose SAEJ517 100R6, this is the hose was reinforced by the one layer of the high tensile synthetic fiber braided. It can meet the low pressure request machines and equipment. We produce the hydraulic hose R6 based on the EATON standard, with the high speed braiding machine Germany.
Key Features:
EN/DIN and New SAE rated working pressure
Flame resistant property of the cover compoud, MSHA approved
Hydraulic hose R6
OEM layline brand logo
|
Part No. |
I.D. |
O.D. |
W.P |
B.P |
B.R |
W.T |
|||
|
Dash |
Inch |
mm |
mm |
MPa |
PSI |
MPa |
PSI |
mm |
kg/m |
|
R6-03 |
3/16″ |
4.8 |
11.0 |
3.5 |
507.5 |
14 |
2030 |
50 |
0.111 |
|
R6-04 |
1/4″ |
6.4 |
12.5 |
2.8 |
406 |
11.2 |
1624 |
65 |
0.132 |
|
R6-05 |
5/16″ |
7.9 |
14.0 |
2.8 |
406 |
11.2 |
1624 |
75 |
0.153 |
|
R6-06 |
3/8″ |
9.5 |
15.7 |
2.8 |
406 |
11.2 |
1624 |
75 |
0.179 |
|
R6-08 |
1/2″ |
12.7 |
19.5 |
2.8 |
406 |
11.2 |
1624 |
100 |
0.249 |
|
R6-10 |
5/8″ |
15.9 |
22.9 |
2.4 |
348 |
9.6 |
1392 |
125 |
0.308 |
|
R6-12 |
3/4″ |
19.1 |
26.0 |
2.1 |
304.5 |
8.4 |
1218 |
150 |
0.357 |
Application:
Low pressure line, return lines, drain lines.
It is suitable for delivering petroleum or water-based hydraulic fluids and it is mainly used in low pressure conditions.
Our Company:
Sinopulse is a market-leading hydraulic hose manufacturer in China.
We offer hydraulic hoses that can do high performance and stand the hardest working environment. Our hoses can work in both high and low pressures and are suitable for a variety of applications.
We meet SAE 100 and DIN standards, we also have ISO and MSHA certificate.
Our reinforced hoses can fit a wide variety of adapters and fittings.
Our hydraulic hose is designed for use with petroleum- and water-based hydraulic fluids. It can handle gasoline, diesel fuels, mineral oils, glycol, lubricating oils and more.
Hydraulic hoses handle high pressures in many different fluid-power applications, from agriculture to heavy equipment operations.
We can also make hydraulic assembly for our clients. The length of finished assemblies is hydraulic hose with crimp fittings pre-attached. We customize the type of hose, length,and fitting to create the perfect assembly for your project.
