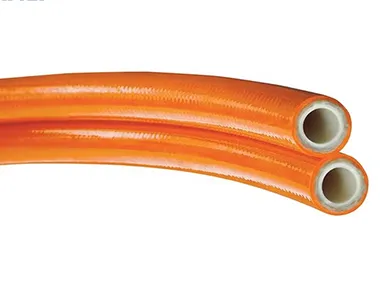

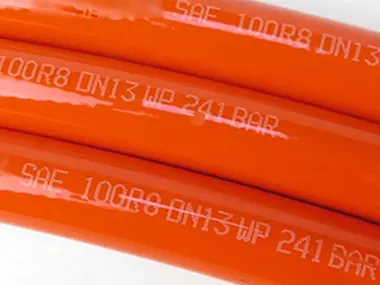

Construction
Tube: PA (polyamide).
Reinforcement: Two high tensile synthetic yarn braided.
Cover: High flexibility nylon or thermoplastic, MSHA accepted.
Temperature
- -40℃ to +100 ℃ (intermittent 110°C).
Application
Mineral and biological oils, water-glycol based, water, lubricants. MSHA and ISO9001:2015 and GOST and SGS Approved.
| Size | Inside Diameter | Outside Diameter | Working Pressure | Bursting Pressure | Bend Radius | Weight | Length | ||||
| Dash | mm | Inch | mm | mm | bar | psi | bar | psi | mm | kgs/m | m |
| R8N-02 | 3.2 | 1/8" | 3.4-3.6 | 10.2 | 354 | 5133 | 1416 | 20532 | 20 | 0.09 | 90-110 |
| R8N-03 | 4.8 | 3/16" | 4.6-5.4 | 13.1 | 345 | 5003 | 1380 | 20010 | 40 | 0.120 | 90-110 |
| R8N-04 | 6.4 | 1/4" | 6.2-7.0 | 15.9 | 345 | 5003 | 1380 | 20010 | 50 | 0.160 | 90-110 |
| R8N-05 | 7.9 | 5/16" | 7.7-8.5 | 17.0 | 300 | 4350 | 1200 | 17400 | 65 | 0.175 | 90-110 |
| R8N-06 | 9.5 | 3/8" | 9.3-10.1 | 19.0 | 276 | 4002 | 1104 | 16008 | 75 | 0.190 | 90-110 |
| R8N-08 | 12.7 | 1/2" | 12.3-13.5 | 22.7 | 240 | 3480 | 960 | 13920 | 102 | 0.300 | 90-110 |
| R8N-10 | 15.9 | 5/8" | 15.5-16.7 | 25.0 | 185 | 2683 | 740 | 10730 | 150 | 0.360 | 45-55 |
| R8N-12 | 19.1 | 3/4" | 18.6-19.8 | 29.0 | 135 | 1958 | 540 | 7830 | 180 | 0.370 | 45-55 |
| R8N-16 | 25.4 | 1" | 25.0-26.4 | 34.0 | 100 | 1450 | 400 | 5800 | 230 | 0.490 | 45-55 |
