Key Features:
EN/DIN and New SAE rated working pressure

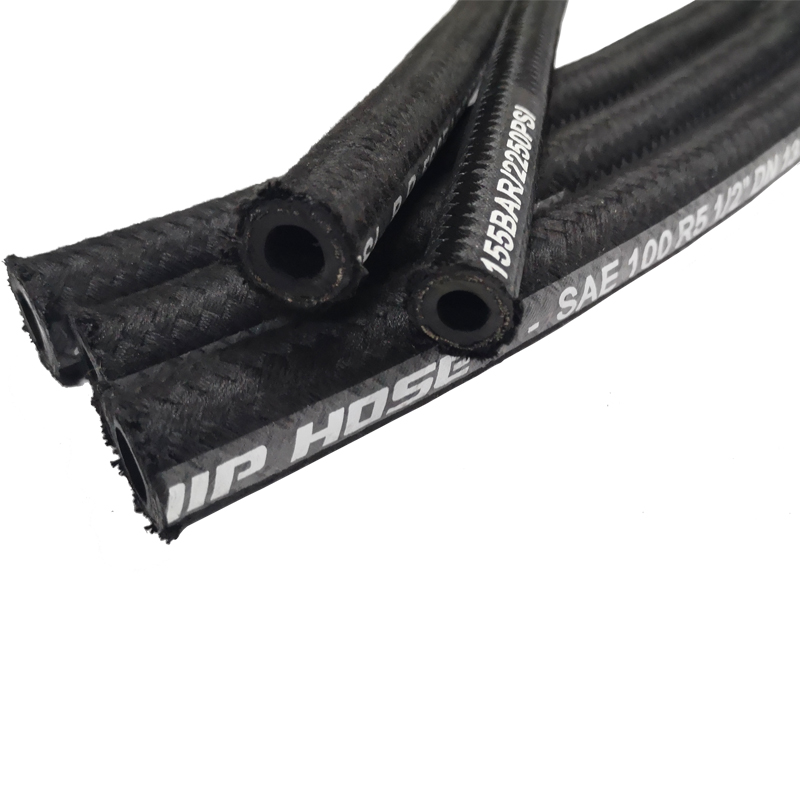

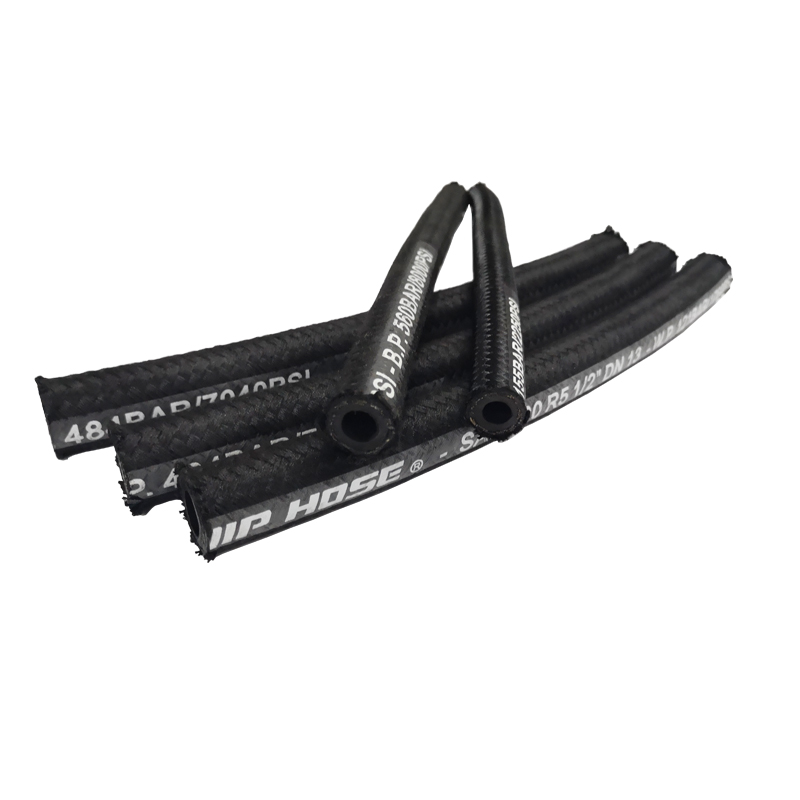

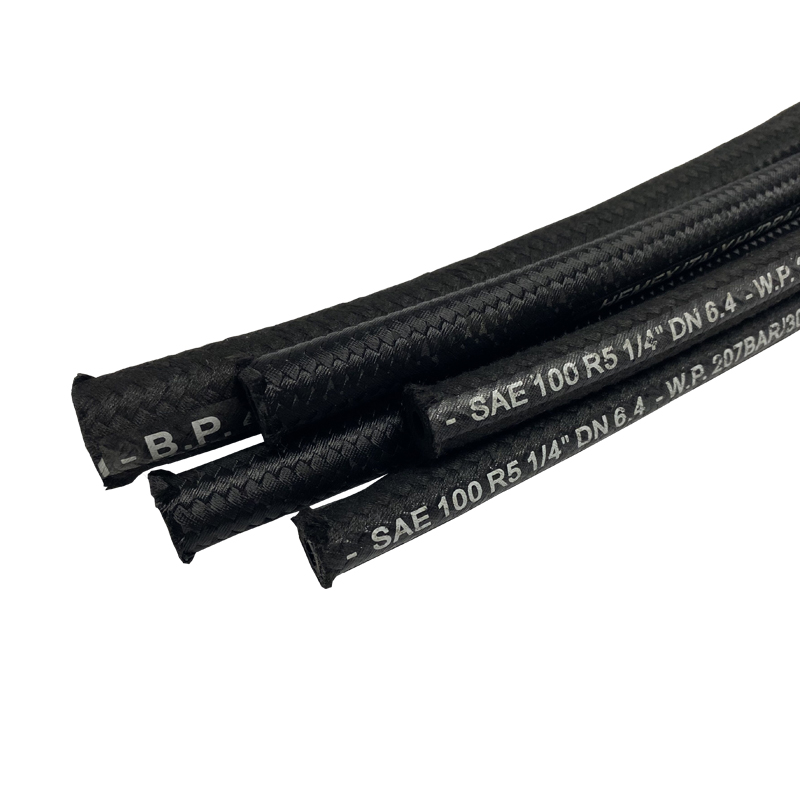

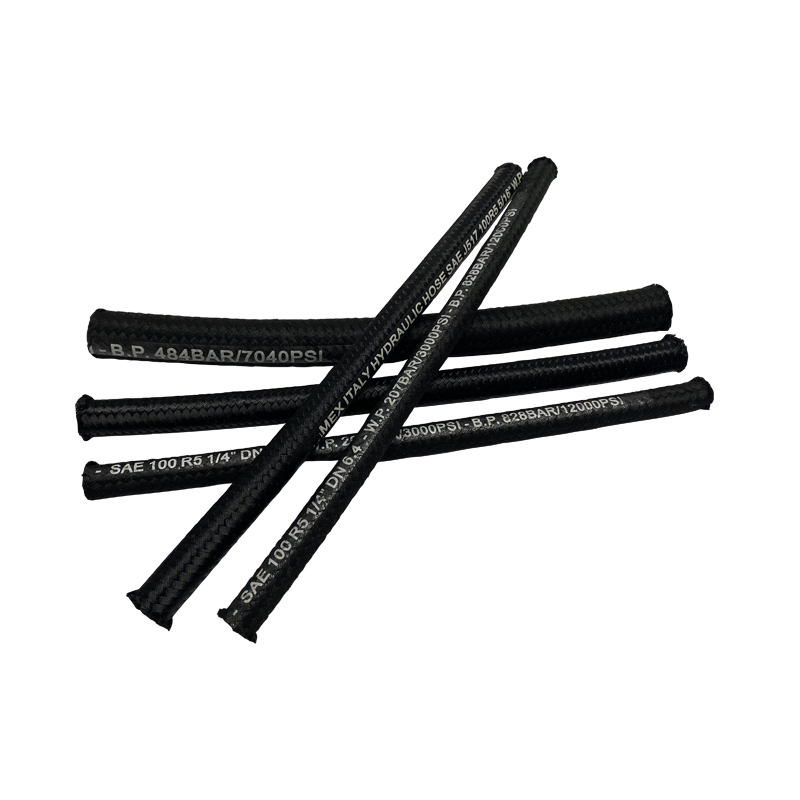

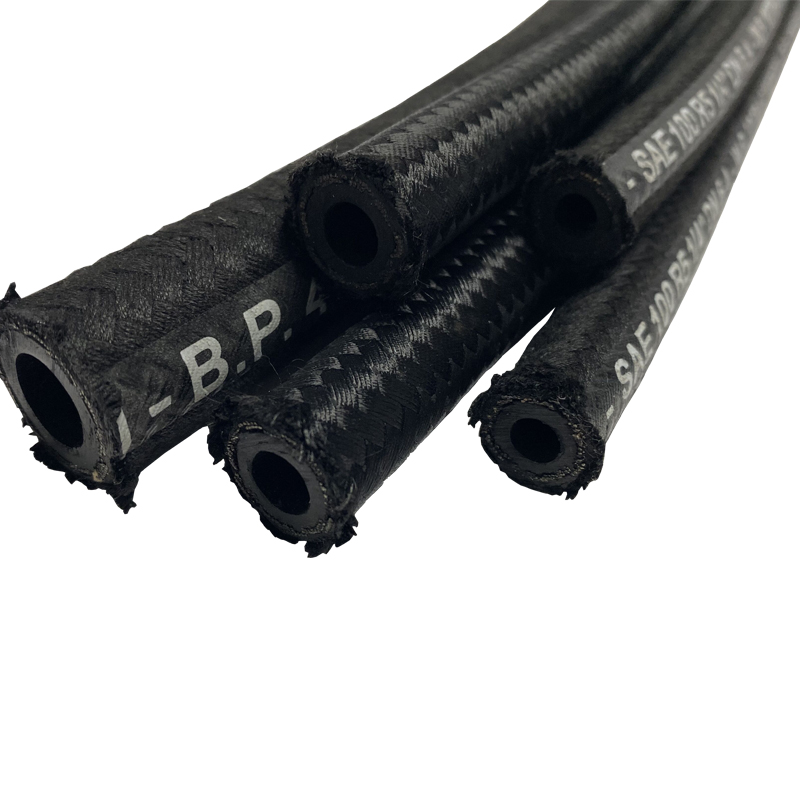

Hydraulic hose R5
Flame resistant property of the cover compoud, MSHA approved
FRAS, MSHA, ISO approved
OEM brand hose layline
|
Part No. |
I.D. |
O.D. |
W.P |
B.P |
B.R |
W.T |
|||
|
Dash |
Inch |
mm |
mm |
MPa |
PSI |
MPa |
PSI |
mm |
kg/m |
|
R5-03 |
3/16″ |
4.8 |
13.0 |
20.7 |
3000 |
82.8 |
12000 |
75 |
0.228 |
|
R5-04 |
1/4″ |
6.4 |
14.6 |
20.7 |
3000 |
82.8 |
12000 |
85 |
0.258 |
|
R5-05 |
5/16″ |
7.9 |
17.0 |
15.5 |
2250 |
62 |
9000 |
100 |
0.327 |
|
R5-06 |
13/32″ |
9.5 |
19.3 |
14.0 |
2000 |
56 |
8000 |
115 |
0.385 |
|
R5-08 |
1/2″ |
12.7 |
23.2 |
12.1 |
1760 |
48.4 |
7040 |
140 |
0.543 |
|
R5-10 |
5/8″ |
15.9 |
27.2 |
10.3 |
1500 |
41.2 |
6000 |
165 |
0.659 |
|
R5-14 |
7/8″ |
22.2 |
31.4 |
5.5 |
800 |
22 |
3200 |
185 |
0.704 |
|
R5-18 |
1-1/8″ |
28.6 |
38.1 |
4.3 |
630 |
17.2 |
2520 |
230 |
0.945 |
|
R5-22 |
1-3/8″ |
34.9 |
44.5 |
3.5 |
508 |
14 |
2000 |
265 |
1.077 |
|
R5-29 |
1-13/16″ |
46.0 |
56.4 |
2.4 |
350 |
9.6 |
1400 |
335 |
1.593 |
|
R5-38 |
2-3/8″ |
60.3 |
73.0 |
2.4 |
350 |
9.6 |
1400 |
610 |
2.583 |
|
R5-48 |
3″ |
76.2 |
90.5 |
1.4 |
200 |
5.6 |
800 |
840 |
3.462 |
Suitable for oil or water based hydraulic fluids.
It is suitable for impacted medium pressure hydraulic petroleum-based oils, lubricating oils, overheating lubricating oil and water & air piping, such as air brake, power steering, fuel filter, turbocharger and oil cylinder of heavy commercial vehicles.
Our Company:
Sinopulse is a market-leading manufacturer of hydraulic hoses and fittings with about 20 years experience.
Our hydraulic hoses can deliver high presure oil and stand the hardest working environment.
Each of our hydraulic hose is in compliance with stringent industry standards such as DIN EN and SAE 100.
Our steel wire reinforced rubber hose can fit in a range of adapters and fittings.
Hydraulic hose is designed to be used with petroleum and water based hydraulic fluids. It can handle gasoline, diesel fuels, mineral oils, glycol, lubricating oils, etc.
Hydraulic hose works in high pressure environment applications, from agriculture, manufacturing to all kinds of heavy equipment operations.
We can also make hydraulic assembly for customers. The finished assemblies are hydraulic hoses with crimped fittings pre-attached. We customize the type of hose, length,and fittings to create the perfect assemblies for you.
We have a large hydraulic hose range, which can satisfy your different applications.
SAE100 R1AT/EN 853 1SN (ONE STEEL WIRE BRAIDED HYDRAULIC HOSE)
SAE100 R2AT/EN853 2SN (TWO STEEL WIRE BRAIDED HYDRAULIC HOSE)
DIN 20023/EN 856 4SP (FOUR STEEL WIRE SPIRAL HYDRAULIC HOSE)
DIN 20023/EN 856 4SH (FOUR STEEL WIRE SPIRAL HYDRAULIC HOSE)
SAE100 R12 (FOUR STEEL WIRE SPIRAL HYDRAULIC HOSE)
SAE100 R13 (FOUR OR SIX STEEL WIRE SPIRAL HYDRAULIC HOSE)
SAE100 R15 (SIX STEEL WIRE SPIRAL HYDRAULIC HOSE)
EN 857 1SC (ONE STEEL WIRE BRAIDED HYDRAULIC HOSE)
EN857 2SC (TWO STEEL WIRE BRAIDED HYDRAULIC HOSE)
SAE100 R16 (ONE OR TWO STEEL WIRE BRAIDED HYDRAULIC HOSE)
SAE100 R17 (ONE OR TWO STEEL WIRE BRAIDED HYDRAULIC HOSE)
SAE100 R3 / EN 854 2TE (TWO FIBRE BRAIDED HYDRAULIC HOSE)
SAE100 R6 / EN 854 1TE (ONE FIBRE BRAIDED HYDRAULIC HOSE)
SAE100 R5 (FIBER BRAIDED COVER HYDRAULIC HOSE)
SAE100 R4 (HYDRAULIC OIL SUCTION HOSE)
SAE100 R14 (PTFE SS304 BRAIDED)
SAE100 R7 (ONE WIRE OR FIBRE BRAIDED THERMOPLASTIC HOSE)
SAE100 R8 (TWO WIRE OR FIBRE BRAIDED THERMOPLASTIC HOSE)
