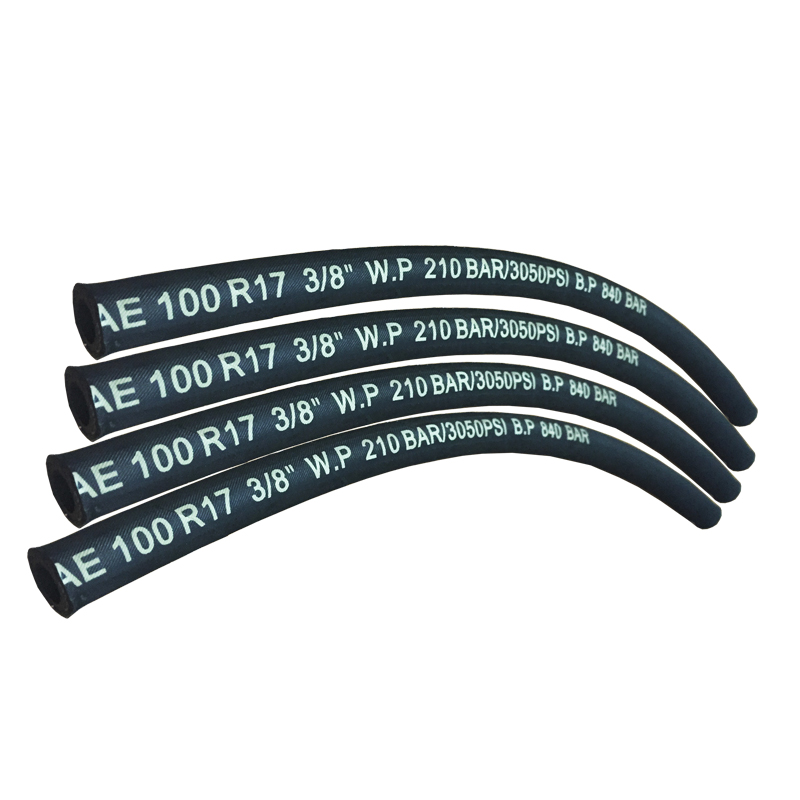

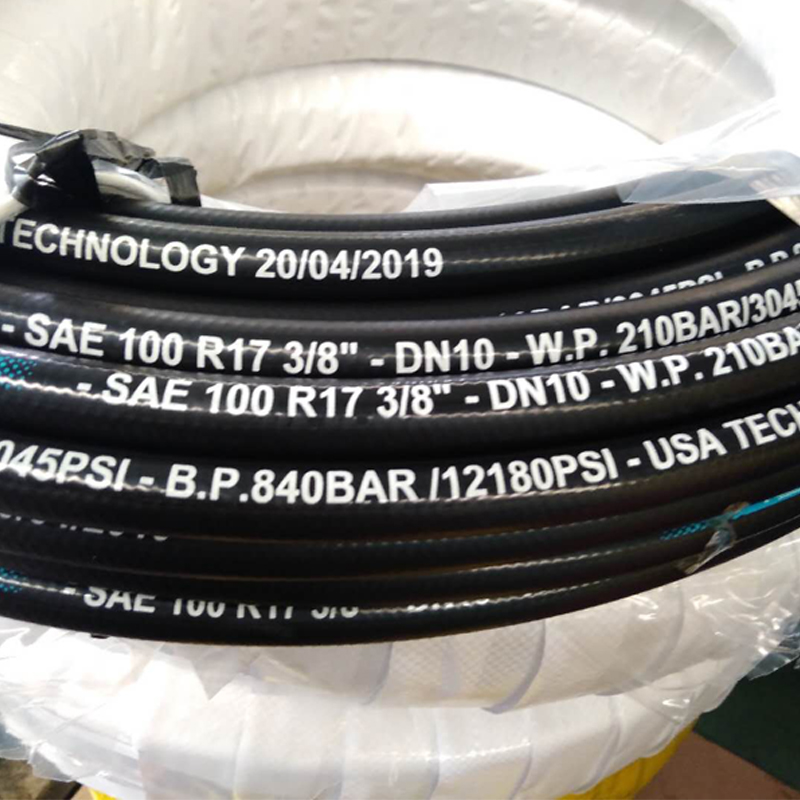

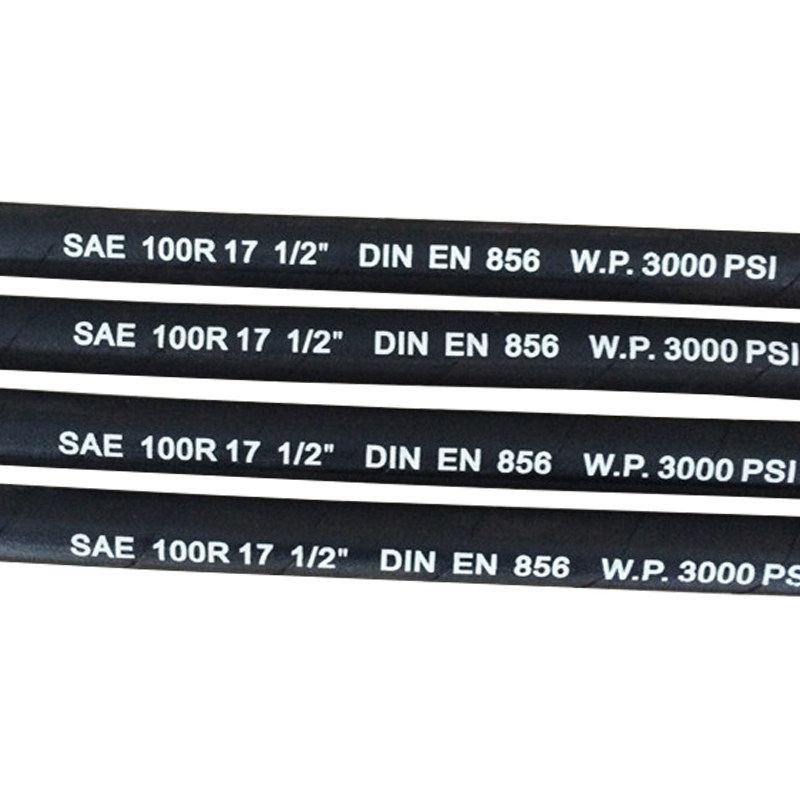

SAE100 R17 Compact Wire Braided Hydraulic Hose

SAE100 R17 Compact Wire Braided Hydraulic Hose

Short Description:

Structure:
Tube: Oil resistant synthetic rubber
Reinforcement: One braid of high tensile steel wire(1/4″-½”); Two braid of high tensile steel wire(5/8″-1″)
Cover: Black, abrasion and weather resistant synthetic rubber, MSHA accepted.
Temperature: -40℃ to +100 ℃


DOWNLOAD PDF

Product Detail

Product Tags

HYDRAULIC HOSE 1SN-7-factory-1

Key Features



Key Features:

EN/DIN and New SAE rated working pressure

Flame resistant property of the cover compoud

MSHA approved

Smooth covery FRAS approved

Hydraulic hose R17

Brand hose layline OEM

HYDRAULIC HOSE 1SN-9-layline
hydraulic hose sae100 r17-1
HYDRAULIC HOSE 1SN-2
HYDRAULIC HOSE 1SN-11-how to order hose assembly

Product Parameter



Part No.

I.D.

 O.D.

W.P

B.P

B.R

W.T

Dash

Inch

mm

mm

MPa

PSI

MPa

PSI

mm

kg/m

R17-04

1/4″

6.4

13.2

21.0

3045

84

12180

50

0.200

R17-05

5/16″

7.9

15.0

21.0

3045

84

12180

55

0.230

R17-06

3/8″

9.5

17.0

21.0

3045

84

12180

65

0.290

R17-08

1/2″

12.7

21.1

21.0

3045

84

12180

90

0.380

R17-10

5/8″

15.9

25.9

21.0

3045

84

12180

100

0.640

R17-12

3/4″

19.1

30.3

21.0

3045

84

12180

120

0.800

R17-16

1″

25.4

38.6

21.0

3045

84

12180

150

1.280

Application:

High pressure hydraulic application and to replace R1 where higher pressure and a more flexible hose is required.

SAE 100R17 Compact hydraulic rubber hose has smaller bend radius and is ideal for tight routing where hose space is limited. It provides continuous working pressure for mining equipment, logging equipment, material handling and farm tractor.

Product Advantage



Sinopulse is our registered brand, has sold to about 60 countries. We are engaged in manufacturing hydraulic hose, industrial rubber hose and hose fittings in China.

Our factory was founded in 2001 since when we have more than 20 years experience in this industry.

Our products passed the ISO9001:2008 certification and MSHA, meet the international standard SAE J517 and DIN EN. We also surpport hose layline and brand customized. OEM accepted.

Advanced technology, excellent quality, strict quality control, professional service and good reputation are the resons why our clients satisfied with our team.

hydraulic hose sae100 r17-4

Product Production Process


HYDRAULIC HOSE 1SN-6-production line-2
HYDRAULIC HOSE 1SN-8-TESTING

More Products



We have a large hydraulic hose range, which can satisfy your different applications.
SAE100 R1AT/EN 853 1SN (ONE STEEL WIRE BRAIDED HYDRAULIC HOSE)
SAE100 R2AT/EN853 2SN (TWO STEEL WIRE BRAIDED HYDRAULIC HOSE)
DIN 20023/EN 856 4SP (FOUR STEEL WIRE SPIRAL HYDRAULIC HOSE)
DIN 20023/EN 856 4SH (FOUR STEEL WIRE SPIRAL HYDRAULIC HOSE)
SAE100 R12 (FOUR STEEL WIRE SPIRAL HYDRAULIC HOSE)
SAE100 R13 (FOUR OR SIX STEEL WIRE SPIRAL HYDRAULIC HOSE)
SAE100 R15 (SIX STEEL WIRE SPIRAL HYDRAULIC HOSE)
EN 857 1SC (ONE STEEL WIRE BRAIDED HYDRAULIC HOSE)
EN857 2SC (TWO STEEL WIRE BRAIDED HYDRAULIC HOSE)
SAE100 R16  (ONE OR TWO STEEL WIRE BRAIDED HYDRAULIC HOSE)
SAE100 R17  (ONE OR TWO STEEL WIRE BRAIDED HYDRAULIC HOSE)
SAE100 R3 / EN 854 2TE (TWO FIBRE BRAIDED HYDRAULIC HOSE)
SAE100 R6 / EN 854 1TE (ONE FIBRE BRAIDED HYDRAULIC HOSE)
SAE100 R5 (FIBER BRAIDED COVER HYDRAULIC HOSE)
SAE100 R4 (HYDRAULIC OIL SUCTION HOSE)
SAE100 R14 (PTFE SS304 BRAIDED)
SAE100 R7 (ONE WIRE OR FIBRE BRAIDED THERMOPLASTIC HOSE)
SAE100 R8  (TWO WIRE OR FIBRE BRAIDED THERMOPLASTIC HOSE)

HYDRAULIC HOSE 1SN-12-OTHER PRODUCTS

Shipping and After-sales


HYDRAULIC HOSE 1SN-5
HYDRAULIC HOSE 1SN-10-customer feedback


Detailed Explanation of SAE 100 R17 Compact Wire Braided Hydraulic Hoses



As a leading hydraulic hose manufacturer, SINOPULSE delivers precision-engineered SAE 100 R17 hydraulic hoses designed for high-performance in space-constrained industrial applications. These compact hoses combine robust steel wire braiding with optimized dimensional specs, ensuring reliable pressure resistance and flexible installation. Below is a detailed breakdown of their technical parameters.



Pressure and Structural Specifications



SAE 100 R17 hoses are built to handle medium to high-pressure hydraulic systems, with working pressure ratings ranging from 207 bar (3000 PSI) for ¼" diameter models to 172 bar (2500 PSI) for 1" diameter variants. The burst pressure exceeds 621 bar (9000 PSI), providing a safety factor of 4:1, critical for preventing catastrophic failures in demanding environments like mining machinery or hydraulic presses. This strength comes from single or double layers of high-tensile steel wire braiding: smaller diameters (¼"–½") use a single braid, while larger sizes (⅝"–1") employ a double braid for enhanced reinforcement.



Dimensional and Flexibility Features



Available in diameters from ¼" to 1", these hoses feature a compact design that minimizes installation bulk. The minimum bend radius is optimized for tight spaces, ranging from 50 mm (2") for ¼" hoses to 150 mm (6") for 1" hoses—up to 30% smaller than standard hoses in similar pressure classes. This flexibility allows seamless routing in complex machinery, such as excavator arms or robotic hydraulic systems, without compromising flow efficiency. The outer layer, constructed from abrasion-resistant black synthetic rubber, offers protection against mechanical wear while maintaining flexibility for dynamic movements.



Temperature and Fluid Compatibility



SINOPULSE SAE 100 R17 hoses operate reliably across a wide thermal range, from -40°C (-40°F) in freezing industrial environments to +100°C (212°F) in moderate high-heat applications. The oil-resistant inner rubber layer is compatible with mineral-based hydraulic fluids, including petroleum oils, water-glycol emulsions, and biodegradable fluids, ensuring long-term resistance to swelling or degradation. Additionally, the hoses meet MSHA (Mine Safety and Health Administration) standards for flame resistance, making them suitable for use in hazardous mining and tunneling operations.



Quality and Certification Standards



Every hose undergoes rigorous testing to ensure compliance with SAE 100 R17 specifications, including:



Impulse Testing: at least 500,000 cycles at 1.5 times the working pressure to verify its fatigue resistance
Ozone Resistance: Exposure to 50 pphm ozone for 72 hours without cracking
Burst Pressure Testing: Conducted at 3x working pressure to verify safety margins



As a trusted manufacturer, SINOPULSE guarantees precision in every parameter, from wall thickness (ranging 2.0–4.0 mm) to overall diameter (9.5–28.5 mm), ensuring seamless integration with standard fittings like JIC 37°, BSPP, or NPT.



For custom configurations or detailed SAE 100 R17 hose specifications, contact our engineering team. We provide tailored solutions for length, end fittings, and marking requirements, ensuring your hydraulic system operates at peak performance.


The main difference between SAE 100R16 and SAE 100R17 hydraulic hoses lies in the structural design and usage scenarios.

SAE 100R16 usually adopts a double-layer steel wire braid structure, which is designed for higher working pressures and more severe working conditions, while R17 hydraulic hose is a lighter alternative with the same working pressure rating but allows the use of a single-layer steel wire braid structure. For large-diameter hoses, a double-layer steel wire braid structure can also be used to ensure pressure resistance.

In addition, SAE 100R17 hoses have smaller bending radius requirements, better flexibility and installation convenience, and are suitable for space-constrained equipment and mobile applications. Therefore, R17 can be used as a lightweight alternative to R16 on the premise of meeting pressure requirements.
