Manufacturing Process

With the highest quality raw materials rigorously tested and approved, we proceed to the manufacturing phase. This next step in our process is where precision engineering and advanced technology converge to transform these superior materials into reliable, high-performance products.

01

Rubber Mixing Center
02

Pre-production Tests
03

Steel wire joint
04

Extrusion
05

Reinforcement Layering
06

Cloth Wrapped or Plastic Cover
07

Vulcanization
08

Delivery from storage

1.Rubber Mixing Center

The process begins with the preparation of the rubber compound. Various ingredients, including natural or synthetic rubber, fillers, plasticize, and curing agents, are mixed to create a homogeneous compound with the desired properties. Our automatic mixer with PLC is an innovative equipment in the industry that is capable of fully automated work and keeps output weight tolerances to within 0.2 grams, which gives us confidence that the rubber we use is the best quality in the industry.

2.Pre-production Tests

Before the mixed rubber put into production, it is hugely essential to test each batch meticulously along with steel wires with procedures for the properties:
•Hardness: We strictly require the inner hose rubber to reach a Shore A hardness of 85 or above, Shore A 65-72 for outside rubber, and Shore A 80-85 for middle rubber.
•Tensile: Each batch of rubber and steel wire should be tested for high tensile. 12 Mpa for inner hose rubber, 8 Mpa for outside rubber, and 16 Mpa for middle rubber. The tensilbe tolerance of steel wires must be under 1%, to assure the working pressure and burst pressure.
•Adhesion: In our laboratory, we perform vulcanization on inner tube rubber and outer rubber with steel wire reinforcement. We then test the adhesion between the rubber and the steel wire to ensure the steel wire does not separate from the rubber.
•Simulated Vulcanization: We take samples from each batch of mixed rubber and perform vulcanization in the laboratory to obtain data—a curve. This curve, displayed on the computer, indicates the properties of the rubber at different time points. Through this experiment, we can ensure that the rubber remains within controllable parameters during actual vulcanization.

3.Steel wire joint

The steel wire or textile fibre used as the reinforcement layer in hydraulic hoses plays a decisive role in the quality of the hoses. At our production center, we utilize high-speed stranding machines from Germany to strand the raw material steel wire or fabric. Unlike the mainstream traditional machines used in the industry, our advanced stranding machines ensure that each strand of wire is perfectly equal in length. This means there are no splices in the steel wires within each hydraulic hose, preventing the rubber from being pushed through the hose during use. This common issue often leads to hose leakage.

4.Extrusion

Extruding the inner rubber is a critical process, so we handle it with great care. Regularly replacing the mandrels ensures that the inner diameter of the extruded hose meets the required specifications. The well-tested rubber, along with the mandrel, is fed into the extruder. we adopted the cold feding extruder, lower temperature will not change the rubber physical form， At the same time, a laser device used to detect concentricity ensures that the wall thickness of the hose is consistent， after extruding, we designed the extremely fast water circulation cooling system，it can help the rubber tube cool down quickly and maintain better shape.

5.Reinforcement Layering

After the initial extrusion, the hose undergoes reinforcement layering. High-strength materials such as steel wire or textile fibers are braided or spiraled around the extruded rubber tube. The steel wires are placed on the braiding machine, where the machine automatically braids them according to the design requirements. We used the high speed braiding and spiral machine with Germany technology, the whole group equipment controlled be PLC, we can check each braiding and spiral process from the screen, if there are any braiding or spiral error, the alarm system will warn us , it will 100% reduce the unqualified hoses. Besides, the braiding process utilizes either parallel or spiral techniques to interlace multiple strands of steel wires together at specific densities and structures. This creates a reinforcement layer with extremely high tensile strength and durability.

6.Cloth Wrapped or Plastic Cover

After extrude the outside rubber tube and before vulcanization, we need to wrapping the cloth tape or extrude the plastic tube over the outside tube, Apply a certain amount of pressure to the outer rubber layer to ensure tight fit between the layers of the hose and prevent defects such as bubbles and delamination. During the whole wrapping and dis-wrapping, we all used the PLC controlled system.

7.Vulcanization

The hose is then subjected to a vulcanization process, which involves heating the hose in a controlled environment. This heat treatment causes the rubber to cure, enhancing its elasticity, strength, and durability. Vulcanization ensures that the hose can maintain its shape and resist defo

Raw Materials

Additionally, we perform adhesion tests to evaluate the bond strength between the rubber layers and the steel wire reinforcement. Ensuring strong adhesion between these materials is essential for the structural integrity and performance of our hydraulic hoses. This comprehensive testing process ensures that the cut edges of our hydraulic hoses are exceptionally smooth and precise, which is vital for reliable and safe operation.

Technical Support

Our Production Center

With our 45,000 m² production center, manufacturing process is designed to ensure the highest quality and reliability of our products. From sourcing the finest raw materials to rigorous final inspections, every step is meticulously controlled.

We always seek to implement the best manufacturing techniques available to ensure optimal working conditions and world-class performance. We deliver on our promise through our cutting-edge equipment and experienced technicians.

Raw Materials Control

Our commitment to excellence begins with the meticulous selection of raw materials. We understand that the foundation of a superior product lies in the quality of its components, which is why we go to great lengths to source only the finest raw materials.

We partner with trusted and reputable suppliers who adhere to our stringent standards for quality, sustainability, and ethical practices. JSR Corp. and LG Chem Ltd. have been our partners for a long time in supplying high-quality synthetic rubber. Our steel wires are sourced from N.V. Bekaert S.A , XINGDA , DAYE most famous domestic brand, and the carbon black is supplied by Cabot Corp and LONGXING which are worldwide industry leaders. We prioritize materials that are not only of the highest quality but also environmentally friendly and responsibly sourced.

After these high quality raw rubbers finished mixing process in our cutting-edge mixer with PLC, we meticulously test each batch of rubber and steel wire for tensile strength and durability in our cutting-edge raw materials testing laboratory. This rigorous testing process ensures that only the highest quality materials are used in our production. By verifying the tensile strength and robustness of these critical components, we guarantee that our hydraulic hoses are exceptionally reliable and capable of withstanding demanding conditions.

Beyond tensile strength and durability tests, our laboratory also simulates the vulcanization temperatures of rubber to ensure optimal curing. We conduct extensive tests on rubber for its resistance to aging, ozone, and abrasion. These tests are crucial for assessing the longevity and resilience of the rubber under various environmental conditions.

Additionally, we perform adhesion tests to evaluate the bond strength between the rubber layers and the steel wire reinforcement. Ensuring strong adhesion between these materials is essential for the structural integrity and performance of our hydraulic hoses. This comprehensive testing process ensures that the cut edges of our hydraulic hoses are exceptionally smooth and precise, which is vital for reliable and safe operation.

Every batch of raw material that comes out of the laboratory is subject to multiple approvals before it is put into production. We believe that fully qualified raw materials are the cornerstone of our commitment to quality.

Quality Control

Quality control is an important aspect of ensuring reliability and performance of hydraulic and industrial hoses. As a leading manufacturer of hydraulic and industrial hoses, Sinopluse understands the importance of maintaining strict quality control measures to meet the diverse needs of its customers.

Hydraulic hoses play a vital role in transporting hydraulic fluid within hydraulic systems, and industrial hoses are designed for a wide range of applications, including transporting air, water and chemicals. The performance and durability of these hoses are critical to the smooth operation of machinery and equipment in various industries. Therefore, it is imperative for manufacturers like Sino to maintain high quality standards.

Sinopulse's commitment to quality control begins with the selection of raw materials. The company carefully sources high-grade materials in compliance with industry standards and norms. This ensures that the hose can withstand the harsh conditions found in industrial environments. By using high-quality materials, Sinopluse guarantees the durability and reliability of its hoses.

In addition to using high-quality materials, Sinopluse implements rigorous testing procedures throughout the manufacturing process. Each production stage is closely monitored to ensure that the hoses meet the required quality standards. This includes testing tensile strength, flexibility, and resistance to pressure and temperature changes. By conducting thorough testing, Sinopluse can detect any potential problems early and take corrective measures to maintain product quality.

In addition, Sino adheres to international quality management standards and maintains the highest level of quality control. The company is ISO 9001 certified, demonstrating its commitment to continuously meeting customer requirements and improving customer satisfaction through an effective quality management system. This certification reflects Sinopluse's commitment to providing products that meet the highest quality standards.

Sino also invests in advanced manufacturing technology and equipment to ensure precision and accuracy in the production of hydraulic and industrial hoses. By utilizing cutting-edge technology, the company can maintain tight tolerances and produce hoses of uniform quality. This technological advantage allows Sinopluse to provide hoses with the best performance and longer service life.

In addition, Sino attaches great importance to continuous improvement and innovation of quality control processes. The company regularly reviews and updates its quality control procedures to incorporate the latest advances in the industry. This proactive approach allows Sinopluse to stay ahead of the curve and consistently deliver hoses that exceed customer expectations.

Overall, Sinopluse’s unwavering commitment to quality control makes it a trusted manufacturer of hydraulic and industrial hoses. Sinopluse ensures that its hoses meet the highest quality benchmarks by prioritizing the use of high-quality materials, implementing stringent testing protocols, adhering to international quality standards, leveraging advanced technology and continual improvement. Customers can rely on Sinopluse to provide the durable, reliable and high-performance hose critical to their industrial applications.

Warranty

Sinopluse is a well-known hydraulic hose factory that prides itself on providing high-quality products to its customers. With a commitment to excellence and innovation, Sinopluse has become an industry leader, offering a wide range of hydraulic hoses for a variety of applications. The company's commitment to quality and customer satisfaction is reflected in its rigorous manufacturing processes and adherence to international standards.

When purchasing hydraulic hose, customers often look for reassurance in the form of a warranty. Sino understands the importance of offering a warranty to instill confidence in its products. The company offers a comprehensive warranty on its hydraulic hoses, insuring customers against any manufacturing defects or malfunctions. This warranty demonstrates Sinopluse’s confidence in the durability and reliability of its products, giving customers peace of mind and reinforcing the company’s commitment to quality.

Sino's warranty on its hydraulic hoses reflects the company's commitment to customer satisfaction and product excellence. A warranty gives customers confidence that the product they are investing in is reliable and long-lasting. In the unlikely event of a manufacturing defect or malfunction, customers can rely on the warranty for necessary repairs or replacements, demonstrating Sinopluse's commitment to supporting its products and ensuring customer confidence.

Overall, Sinopluse’s warranty on its hydraulic hoses is a testament to the company’s strong commitment to quality, reliability and customer satisfaction. Sino focuses on innovation and excellence, constantly setting industry standards for hydraulic hoses to ensure that customers' investments are protected. The comprehensive warranty offered by Sino solidifies the company's position as a trusted leader in the hydraulic hose market, giving customers peace of mind when choosing Sino as their preferred supplier.

Returns & Exchange Policy

Sinopluse is a leading supplier of high quality hydraulic hoses and fittings, offering a wide range of products to meet the needs of a variety of industrial applications. Sinopuse's hydraulic hoses and fittings are trusted by industry professionals for their durability, performance and reliability. The company's commitment to excellence is reflected in its comprehensive returns and exchanges policy, ensuring customer satisfaction and peace of mind.

Sinopluse's hydraulic hoses are engineered to withstand high pressures and extreme conditions, making them ideal for heavy industrial machinery and equipment. The company's accessories are designed to provide secure connections and leak-free performance, ensuring the integrity of hydraulic systems. Whether it's hydraulic hose, couplings or industrial hose, Sinopluse's products are designed to provide exceptional performance and longevity, and are backed by a solid return and exchange policy.

Sino understands the importance of customer satisfaction and stands behind the quality of its products. In the unlikely event that a customer is not completely satisfied with their purchase, the company offers a hassle-free return and exchange policy. Customers can rest assured that if they have any issues with their hydraulic hoses or fittings, they will receive immediate help and support. Sino 's commitment to excellence extends beyond its products to include its customer service and support.

Sino's return and exchange policy is designed to provide customers with flexibility and peace of mind. Whether it's a product defect, sizing issue, or any other reason for a return, the company ensures a smooth and efficient exchange or refund process. Sino's commitment to customer satisfaction is reflected in its transparent and customer-friendly returns and exchanges policy, which reflects the company's commitment to providing a positive experience to its valued customers.

Simply put, Sinopluse's hydraulic hoses and fittings are synonymous with quality, performance and reliability. The company's comprehensive return and exchange policy further emphasizes its commitment to excellence and customer satisfaction. Focused on delivering superior products and outstanding customer support, sinopluse sets the standard for hydraulic solutions in the industrial sector. Customers can rely on Sinopluse's product quality and reliable return and exchange policy guarantees, making it the first choice for all hydraulic hose and accessories needs.

Case

Huge Quantity of Hydraulic Assemblies

We successfully completed a significant project that highlighted our production capabilities.
View More
Hydraulic Hoses in Heavy Machinery Projects

We pride ourselves on providing top-tier hydraulic solutions for heavy machinery.
View More
Twin Line Hydraulic Hoses for Underwater Crushers

Sinopulse specializes in supplying sophisticated hydraulic systems that succeed in the most challenging conditions.
View More
Customized Hydraulic Hoses for Extreme Cold Conditions

Sinopulse takes pride in providing high-quality hydraulic solutions that are suited to the specific needs of tough settings.
View More

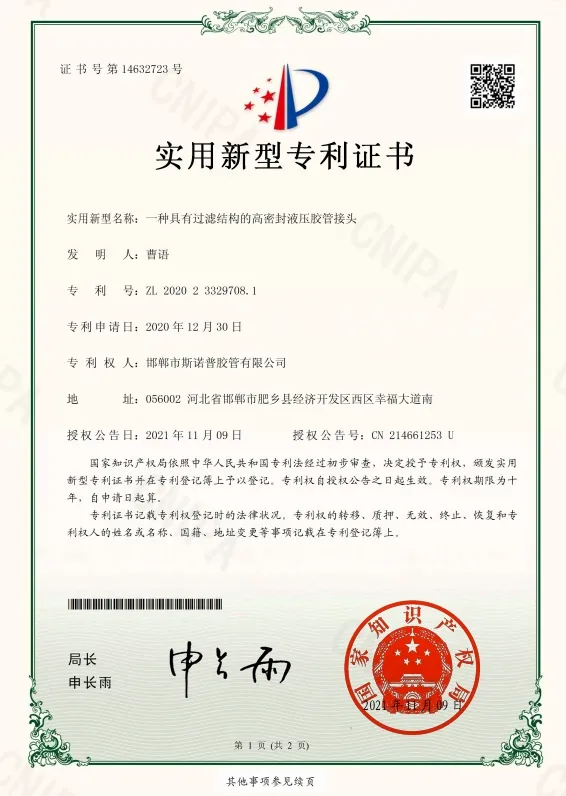

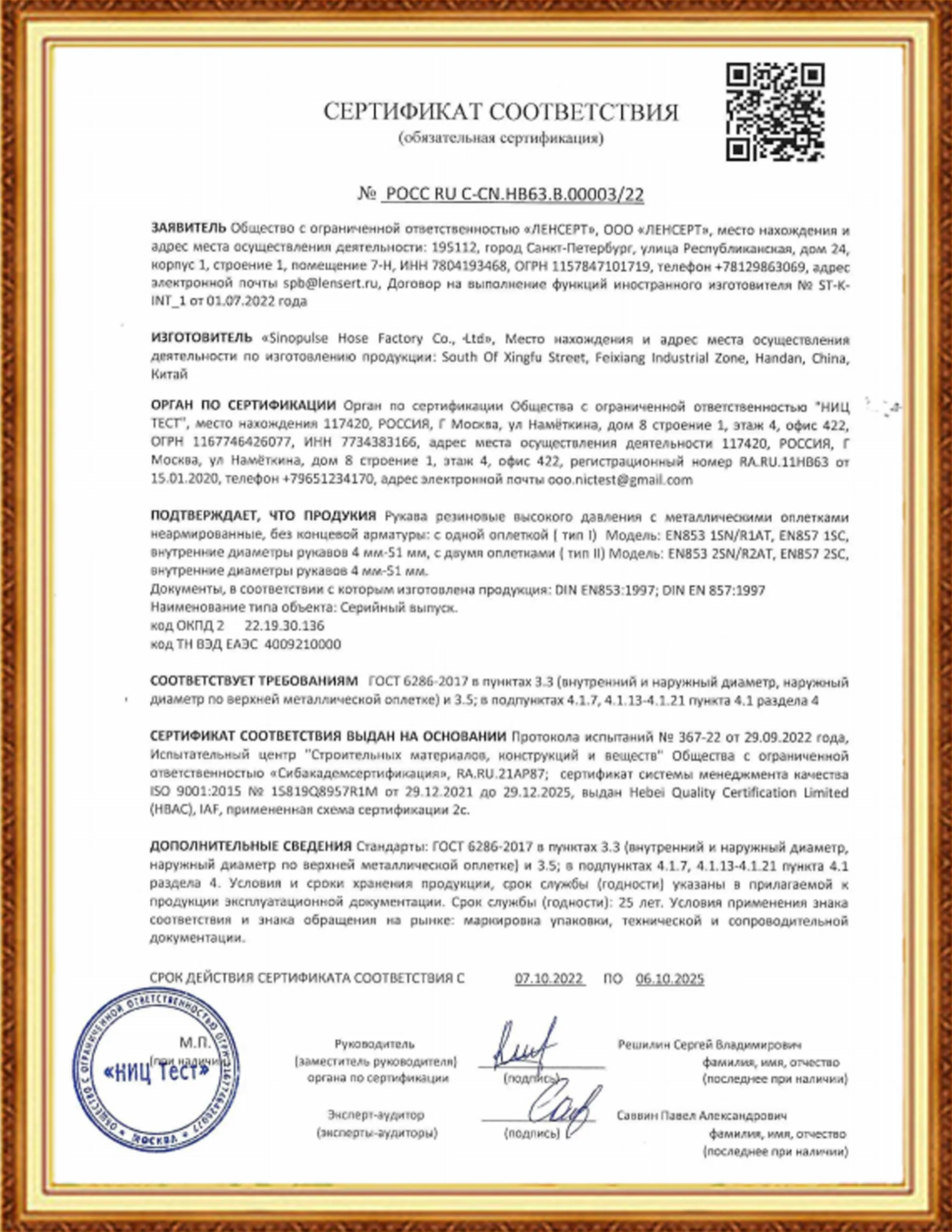

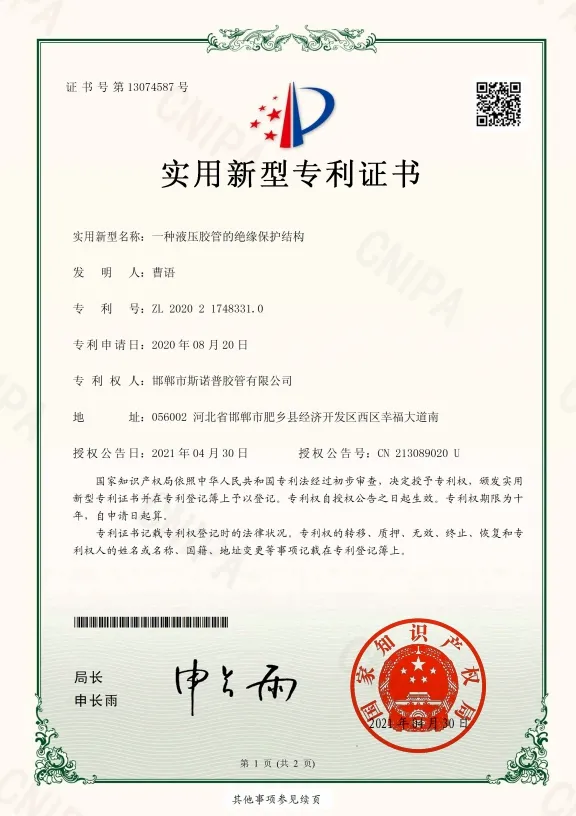

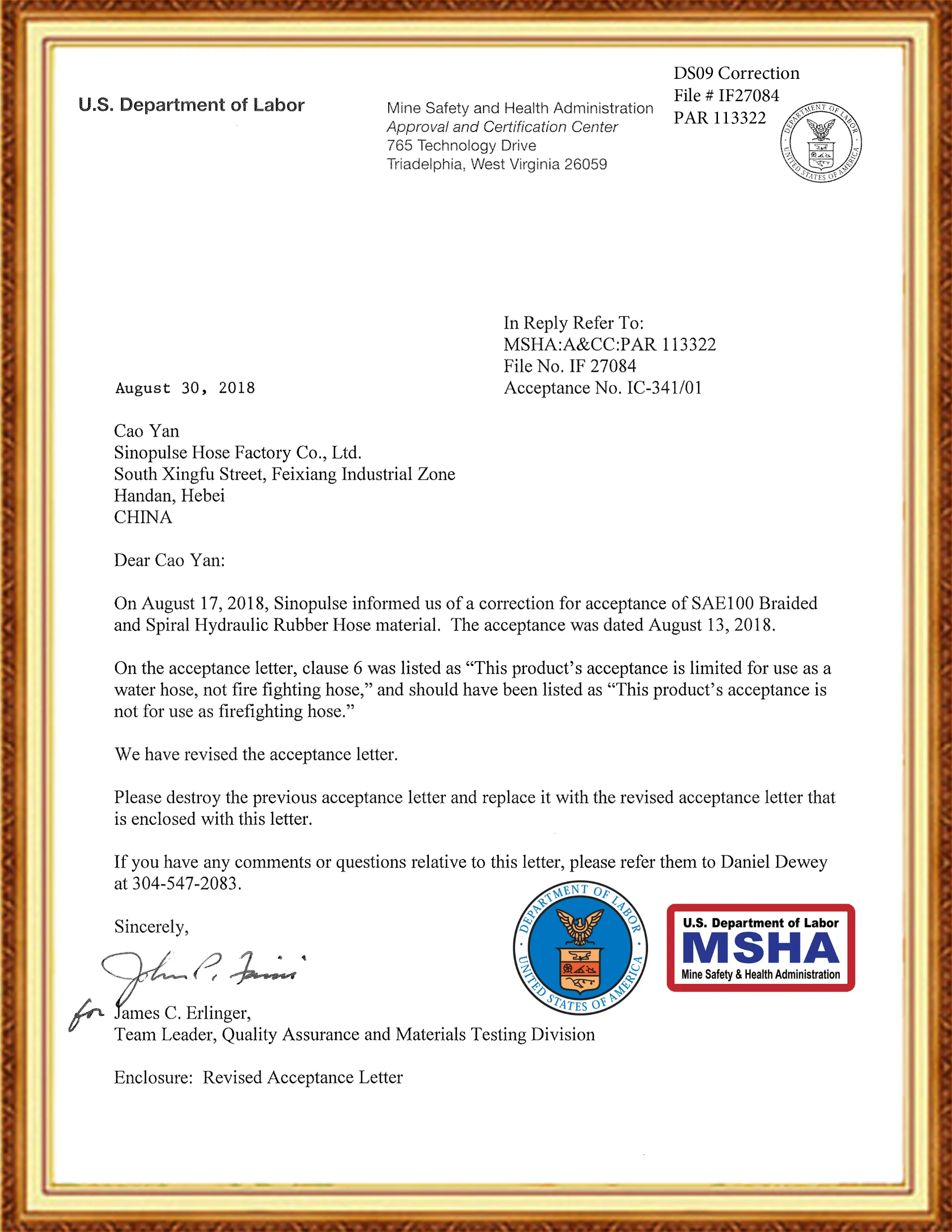

Certificates
