EN/DIN and New SAE rated working pressure
Flame resistant property of the cover compoud

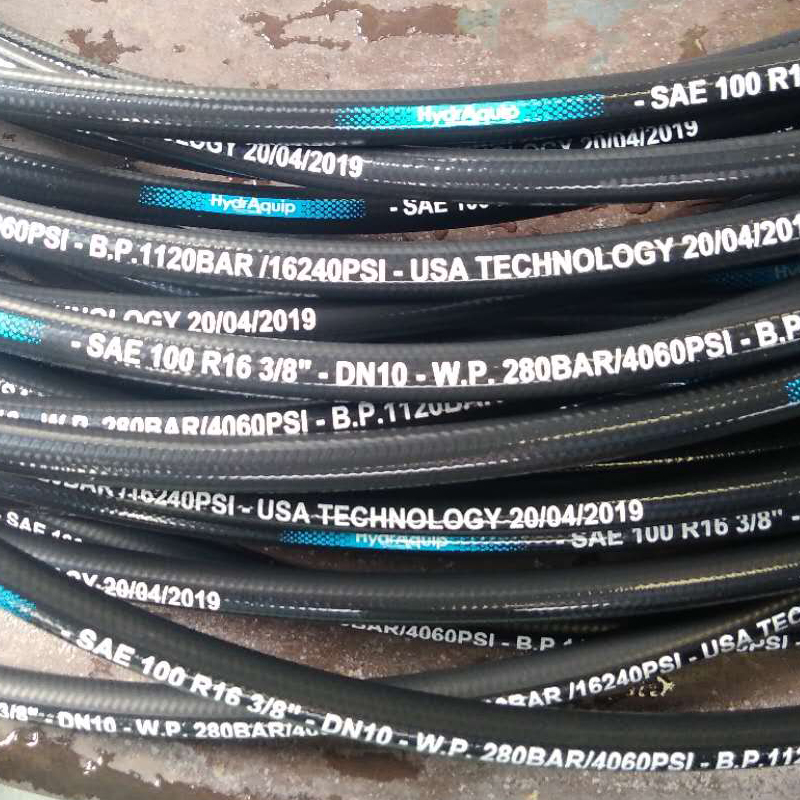

Hydraulic hose R16
MSHA and ISO approved
OEM brand
|
Part No. |
I.D. |
O.D. |
W.P |
B.P |
B.R |
W.T |
|||
|
Dash |
Inch |
mm |
mm |
MPa |
PSI |
MPa |
PSI |
mm |
kg/m |
|
R16-04 |
1/4″ |
6.4 |
13.5 |
35.0 |
5075 |
140 |
20300 |
50 |
0.200 |
|
R16-05 |
5/16″ |
7.9 |
15.1 |
30.0 |
4305 |
119 |
17255 |
55 |
0.230 |
|
R16-06 |
3/8″ |
9.5 |
17.1 |
28.0 |
4060 |
112 |
16240 |
65 |
0.290 |
|
R16-08 |
1/2″ |
12.7 |
20.4 |
25.0 |
3550 |
98 |
14210 |
90 |
0.380 |
|
R16-10 |
5/8″ |
15.9 |
23.8 |
19.0 |
2780 |
77 |
11165 |
100 |
0.640 |
|
R16-12 |
3/4″ |
19.1 |
27.6 |
16.0 |
2275 |
63 |
9135 |
120 |
0.800 |
|
R16-16 |
1″ |
25.4 |
35.4 |
14.0 |
2030 |
56 |
8120 |
150 |
1.280 |
Application:
High pressure hydraulic application and to replace R2 where higher pressure and a more flexible hose is required.
SAE 100R16 compact high pressure hydraulic rubber hose has priority when you choose hydraulic hoses for narrow routing spacing, it is applied for backhoe, farm tractor, forklift truck, dump truck, mobile equipment. It is also widely used with petroleum base hydraulic fluids within -40 °C to +100 °C.
Our Company:
Sinopulse is a market-leading hydraulic hose manufacturer from China. Our factory is located in Handan city, Hebei province, China.
We not only manufacture high quality hydarulic hoses, but also export hydraulic fittings and ferrules, crimping machine, as well as other industrial hoses like PVC hose, pneumatic hose, water&air hose, etc.
Our hydraulic hoses are designed to perform in both high and low pressures, and also suitable for many kinds of applications.
Each of our hydraulic hose is in compliance with stringent industry standards SAE100 and DIN EN. We also have passed the ISO and MSHA certificates.
Our reinforced hoses can fit in a wide range of adapters and fittings.
Hydraulic hose is used with petroleum and water-based hydraulic fluids. It handles so many fluids including gasoline, diesel fuel, mineral oil, glycol, and lubricating oil, etc.
Hydraulic hose can handle high pressure in many fluid-power applications, from agriculture and manufacturing to a variety of heavy equipment operations.
We also make hydraulic assembly for our customers if they require. The hose type, length and fittings can all be customized. Contact us freely if any interest!
We have a large hydraulic hose range, which can satisfy your different applications.
SAE100 R1AT/EN 853 1SN (ONE STEEL WIRE BRAIDED HYDRAULIC HOSE)
SAE100 R2AT/EN853 2SN (TWO STEEL WIRE BRAIDED HYDRAULIC HOSE)
DIN 20023/EN 856 4SP (FOUR STEEL WIRE SPIRAL HYDRAULIC HOSE)
DIN 20023/EN 856 4SH (FOUR STEEL WIRE SPIRAL HYDRAULIC HOSE)
SAE100 R12 (FOUR STEEL WIRE SPIRAL HYDRAULIC HOSE)
SAE100 R13 (FOUR OR SIX STEEL WIRE SPIRAL HYDRAULIC HOSE)
SAE100 R15 (SIX STEEL WIRE SPIRAL HYDRAULIC HOSE)
EN 857 1SC (ONE STEEL WIRE BRAIDED HYDRAULIC HOSE)
EN857 2SC (TWO STEEL WIRE BRAIDED HYDRAULIC HOSE)
SAE100 R16 (ONE OR TWO STEEL WIRE BRAIDED HYDRAULIC HOSE)
SAE100 R17 (ONE OR TWO STEEL WIRE BRAIDED HYDRAULIC HOSE)
SAE100 R3 / EN 854 2TE (TWO FIBRE BRAIDED HYDRAULIC HOSE)
SAE100 R6 / EN 854 1TE (ONE FIBRE BRAIDED HYDRAULIC HOSE)
SAE100 R5 (FIBER BRAIDED COVER HYDRAULIC HOSE)
SAE100 R4 (HYDRAULIC OIL SUCTION HOSE)
SAE100 R14 (PTFE SS304 BRAIDED)
SAE100 R7 (ONE WIRE OR FIBRE BRAIDED THERMOPLASTIC HOSE)
SAE100 R8 (TWO WIRE OR FIBRE BRAIDED THERMOPLASTIC HOSE)
