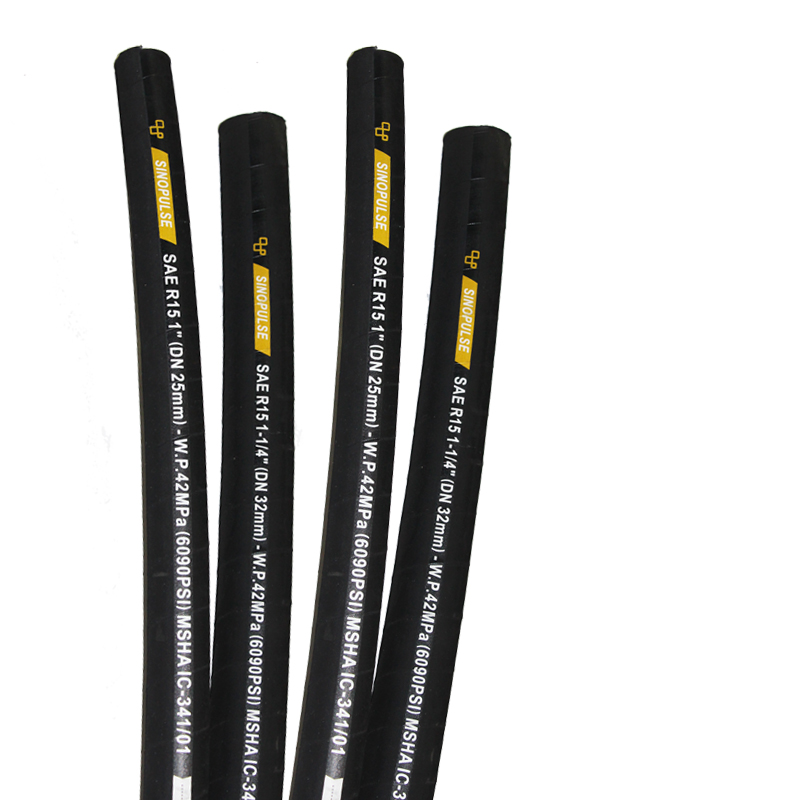

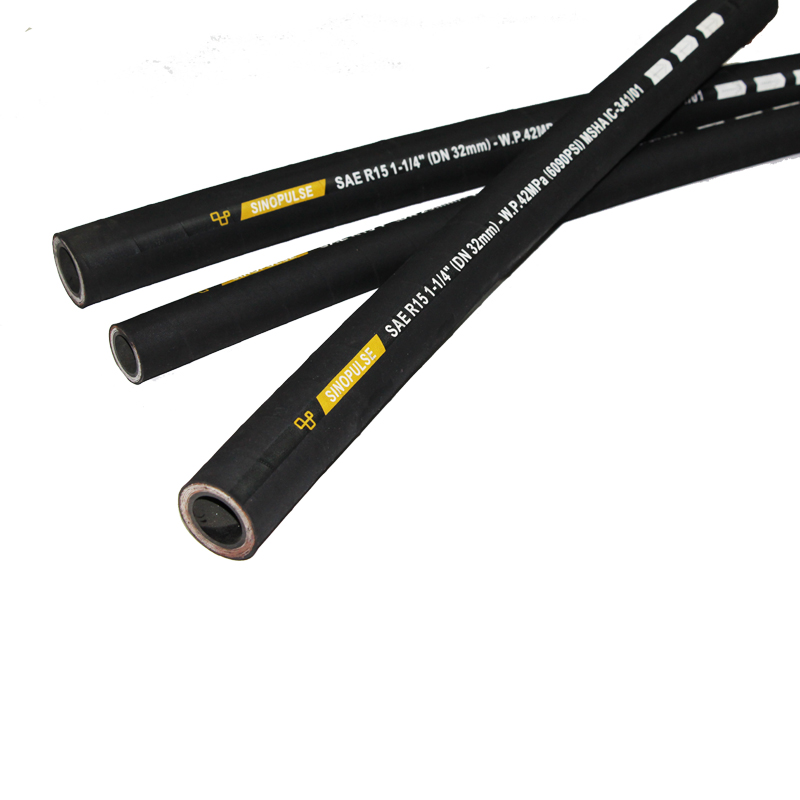

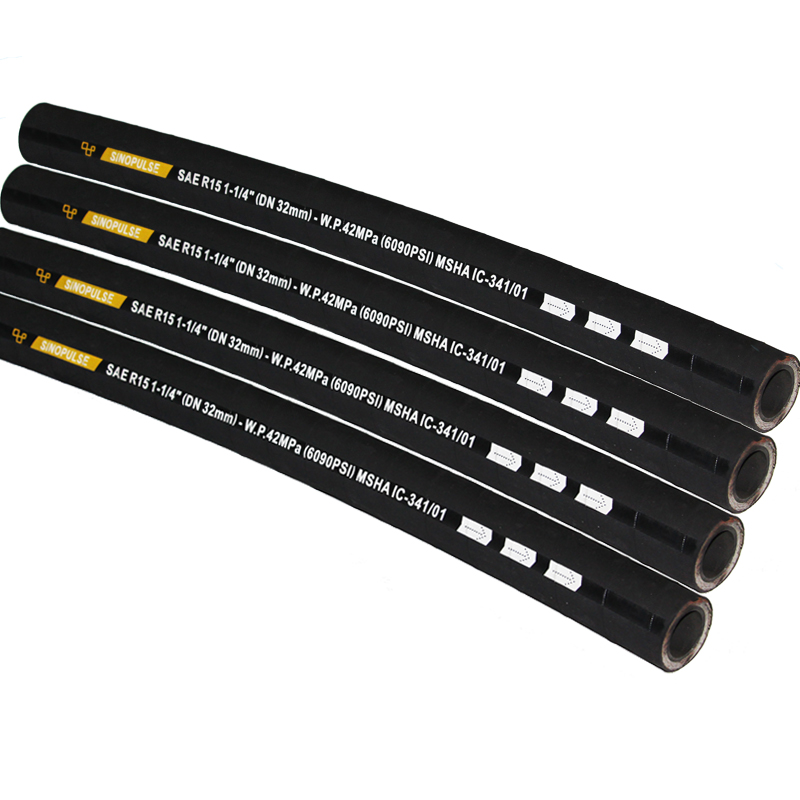

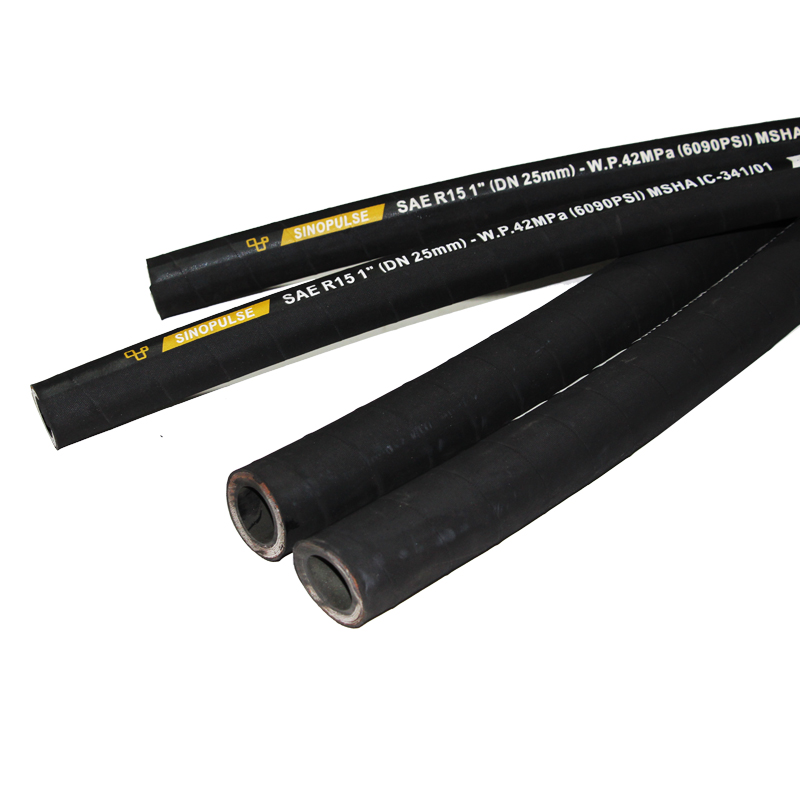

Hydraulic hose SAEJ517 100R15, this is the hose was reinforced by six steel wire multiple spiral and with the middle rubber and a braid of textile material. This hose can be used under 121℃, and supper high pressure such as the construction machines, mining and he high performance industrial market.
Key Features:
EN/DIN and New SAE rated working pressure
Flame resistant property of the cover compoud, MSHA approved
Hydrualic hose R15
OEM layline
|
Part No. |
I.D. |
O.D. |
W.P |
B.P |
B.R |
W.T |
|||
|
Dash |
Inch |
mm |
mm |
MPa |
PSI |
MPa |
PSI |
mm |
kg/m |
|
R15-12 |
3/4″ |
19.1 |
31.8 |
42.0 |
6090 |
168 |
24360 |
265 |
1.472 |
|
R15-16 |
1″ |
25.4 |
39.2 |
42.0 |
6090 |
168 |
24360 |
330 |
1.984 |
|
R15-20 |
1.1/4″ |
31.8 |
50.0 |
42.0 |
6090 |
168 |
24360 |
445 |
3.519 |
|
R15-24 |
1.1/2″ |
38.1 |
58.2 |
42.0 |
6090 |
168 |
24360 |
530 |
4.499 |
|
R15-32 |
2″ |
50.8 |
72.0 |
35.0 |
5075 |
140 |
20300 |
640 |
6.449 |
Application:
Very high pressure applications subject to surge of flexing such as construction equipments, mining and the high performance industrial market.
Hydraulic system service with petroleum & water based fluids, for general industrial service.
Hydraulic system with petroleum based fluids for low temperature applications.
Our Company:
Sinopulse is a professional manufacturer for hydralic hose.
We offer hydraulic hoses which have high performance and stand hard working environment. Our hoses are designed to perform in different level pressures and suitable for different applications.
Our hydraulic hoses meet SAE 100 and DIN standards. We also have ISO and MSHA certificates.
Our reinforced rubber hoses can fit a wide variety of adapters and fittings.
Hydraulic hose is used with petroleum and water-based hydraulic fluids. It can deliver gasoline, diesel fuels, lubricating oils, mineral oils, glycol and so on.
Hydraulic hoses handle high pressure fluid-power applications, from agriculture and manufacturing to all variety of heavy equipment operations.
We also do hydraulic assembly for customers with crimp fittings pre-attached. Customize the type of hose, length,and fitting to create the perfect assembly for your project.
We have a large hydraulic hose range, which can satisfy your different applications.
SAE100 R1AT/EN 853 1SN (ONE STEEL WIRE BRAIDED HYDRAULIC HOSE)
SAE100 R2AT/EN853 2SN (TWO STEEL WIRE BRAIDED HYDRAULIC HOSE)
DIN 20023/EN 856 4SP (FOUR STEEL WIRE SPIRAL HYDRAULIC HOSE)
DIN 20023/EN 856 4SH (FOUR STEEL WIRE SPIRAL HYDRAULIC HOSE)
SAE100 R12 (FOUR STEEL WIRE SPIRAL HYDRAULIC HOSE)
SAE100 R13 (FOUR OR SIX STEEL WIRE SPIRAL HYDRAULIC HOSE)
SAE100 R15 (SIX STEEL WIRE SPIRAL HYDRAULIC HOSE)
EN 857 1SC (ONE STEEL WIRE BRAIDED HYDRAULIC HOSE)
EN857 2SC (TWO STEEL WIRE BRAIDED HYDRAULIC HOSE)
SAE100 R16 (ONE OR TWO STEEL WIRE BRAIDED HYDRAULIC HOSE)
SAE100 R17 (ONE OR TWO STEEL WIRE BRAIDED HYDRAULIC HOSE)
SAE100 R3 / EN 854 2TE (TWO FIBRE BRAIDED HYDRAULIC HOSE)
SAE100 R6 / EN 854 1TE (ONE FIBRE BRAIDED HYDRAULIC HOSE)
SAE100 R5 (FIBER BRAIDED COVER HYDRAULIC HOSE)
SAE100 R4 (HYDRAULIC OIL SUCTION HOSE)
SAE100 R14 (PTFE SS304 BRAIDED)
SAE100 R7 (ONE WIRE OR FIBRE BRAIDED THERMOPLASTIC HOSE)
SAE100 R8 (TWO WIRE OR FIBRE BRAIDED THERMOPLASTIC HOSE)
