Key Features:

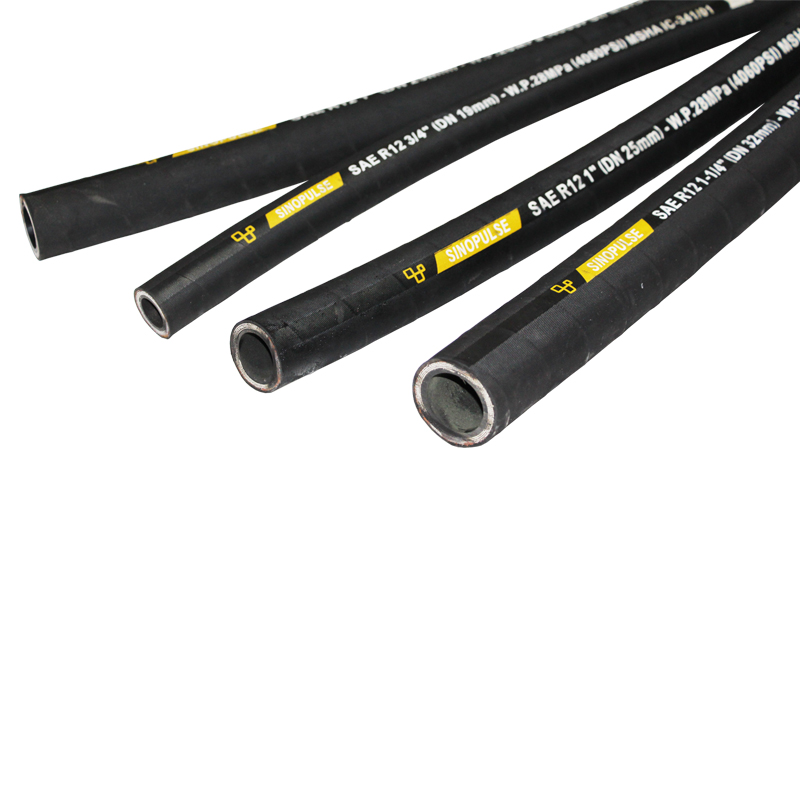

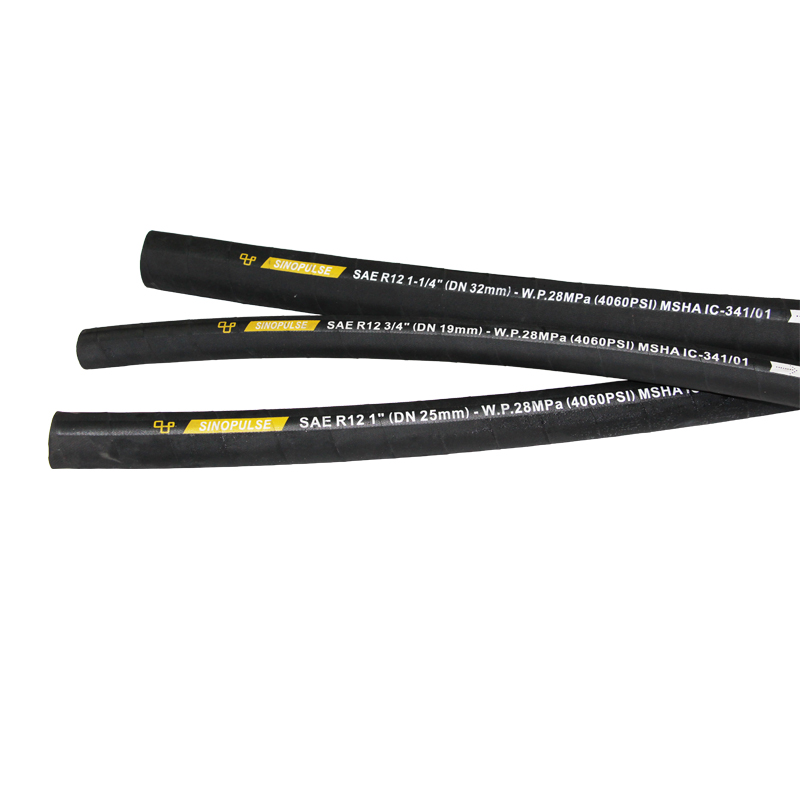

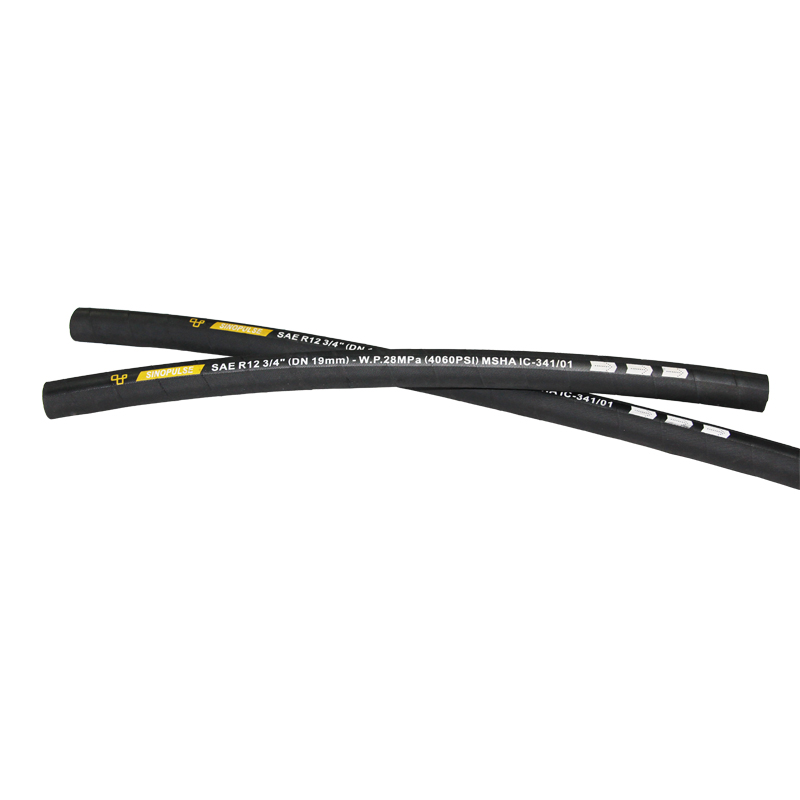

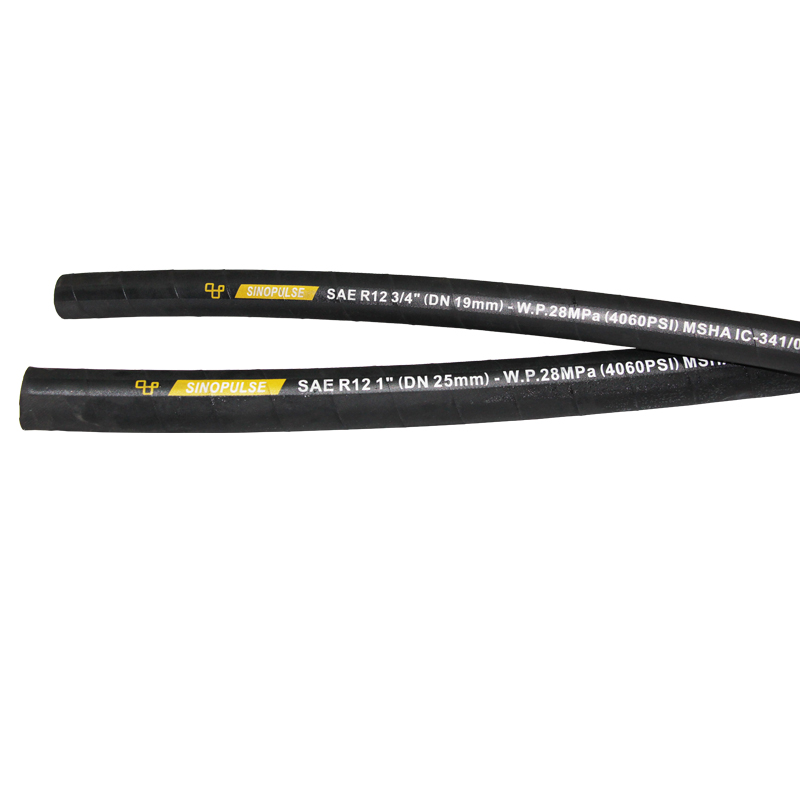

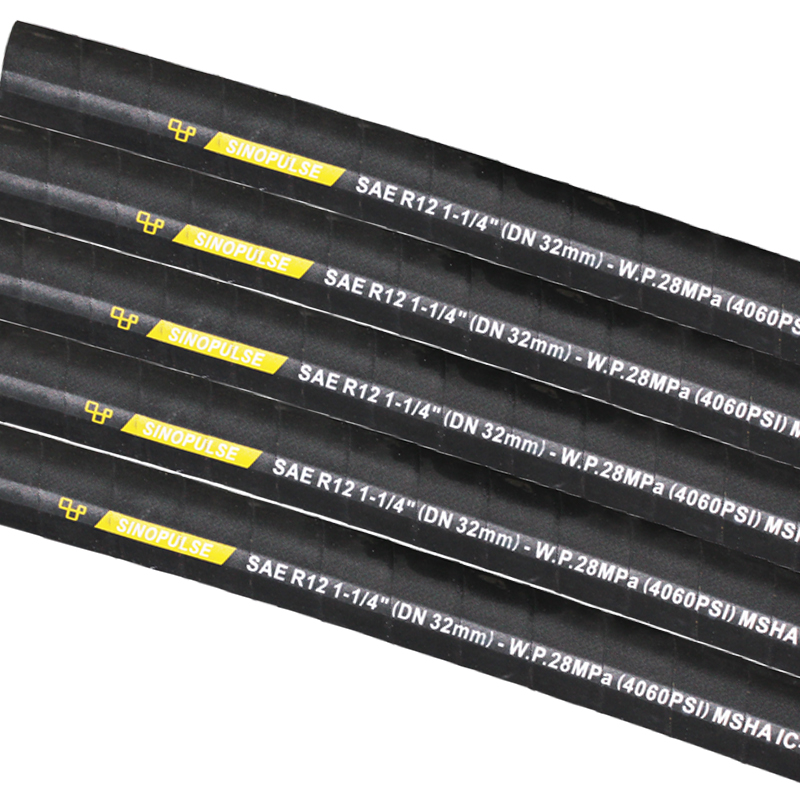

Hydraulic hose R12
EN/DIN and New SAE rated working pressure
Flame resistant property of the cover compoud, MSHA approved
OEM brand hose layline support
High quality and competitive price assured
|
Part No. |
I.D. |
O.D. |
W.P |
B.P |
B.R |
W.T |
|||
|
Dash |
Inch |
mm |
mm |
MPa |
PSI |
MPa |
PSI |
mm |
kg/m |
|
R12-06 |
3/8″ |
9.5 |
20.2 |
28.0 |
4060 |
112 |
16240 |
125 |
0.707 |
|
R12-08 |
1/2″ |
12.7 |
23.5 |
28.0 |
4060 |
112 |
16240 |
180 |
0.871 |
|
R12-10 |
5/8″ |
15.9 |
27.3 |
28.0 |
4060 |
112 |
16240 |
200 |
1.107 |
|
R12-12 |
3/4″ |
19.1 |
31.0 |
28.0 |
4060 |
112 |
16240 |
240 |
1.339 |
|
R12-16 |
1″ |
25.4 |
38.0 |
28.0 |
4060 |
112 |
16240 |
300 |
1.984 |
|
R12-20 |
1.1/4″ |
31.8 |
47.0 |
21.0 |
3045 |
84 |
12180 |
420 |
2.532 |
|
R12-24 |
1.1/2″ |
38.1 |
54.0 |
17.5 |
2540 |
70 |
10150 |
500 |
3.040 |
|
R12-32 |
2″ |
50.8 |
67.5 |
17.5 |
2540 |
70 |
10150 |
640 |
4.586 |
Application:
Very high pressure applications used for petroleum based hydraulic fluids.
Common applications include construction, mining, farming, and high performance industrial equipment.
For hydraulic systems with high peak pressures and arduous operating conditions.
Our Company:
Sinopulse is a factory engaged in hydraulic hose industry for about 20 years.
Our hoses are designed to perform in both high and low pressures and suitable for a variety of applications. The hydraulic hoses can have a high performance and bear the hardest working environments.
Each of our hydraulic hoses meet standards such as SAE 100 and DIN. We also have ISO and MSHA certificate.
Our reinforced hoses can fit all kinds of adapters and fittings.
Our hydraulic hose is designed for using with petroleum- and water-based hydraulic fluids. It can handle gasoline, diesel fuels, mineral oils, glycol, lubricating oils and more.
Hydraulic hoses handle high pressures in many fluid-power applications, from agriculture and manufacturing to all variety of heavy equipment operations.
Sinopulse full range hydraulic hose
SAE100 R1AT/EN 853 1SN (High pressure, High abrasion, flame resistant Hydraulic hose )
SAE100 R2AT/EN853 2SN (Pressure, flexible and high temperature hydraulic hose )
DIN 20023/EN 856 4SP (High pressure , high temperature and flame resistant hydraulic hose )
DIN 20023/EN 856 4SH (Constant Pressure, abrasion resistant hydraulic hose)
SAE100 R12 (High pressure, high temperature and abrasion hydraulic hose )
SAE100 R13 (Constant Pressure, temperature,flexible and abrasion hydraulic hose)
SAE100 R15 (Super high pressure and abrasion hydraulic hose)
EN 857 1SC (Compact flexible and abrasion hydraulic hose )
EN857 2SC (Compact flexible , flame resistant, abrasion hydraulic hose)
SAE100 R16 (Two layer compact flexible Hydraulic hose )
SAE100 R17 (One or two layer compact flexible , abrasion hydraulic hose)
SAE100 R3 / EN 854 2TE (Low pressure , flexible, abrasion hydraulic hose )
SAE100 R6 / EN 854 1TE (one fiber layer , flexible hydraulic hose)
SAE100 R5 (Fiber braided cover , abrasion hydraulic hose)
SAE100 R4 (Pressure Hydraulic suction and discharge hose)
SAE100 R14 (High temperature PTFE SS304 BRAIDED)
SAE100 R7 (Pressure, and high temperature Thermoplastic Hydraulic hose )
SAE100 R8 (Pressure and flexible Thermoplastic hydraulic hose)
