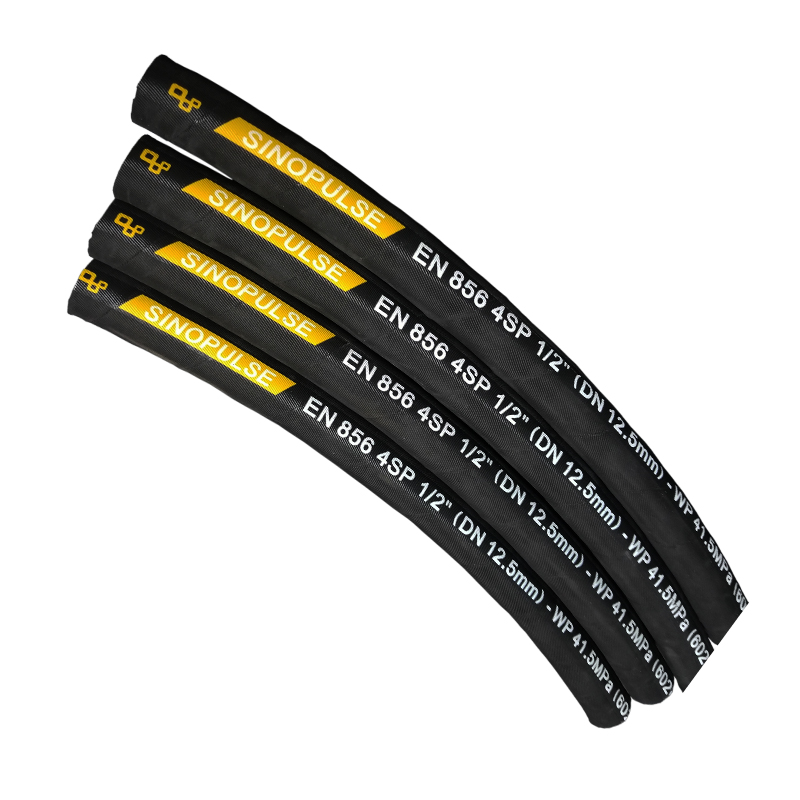

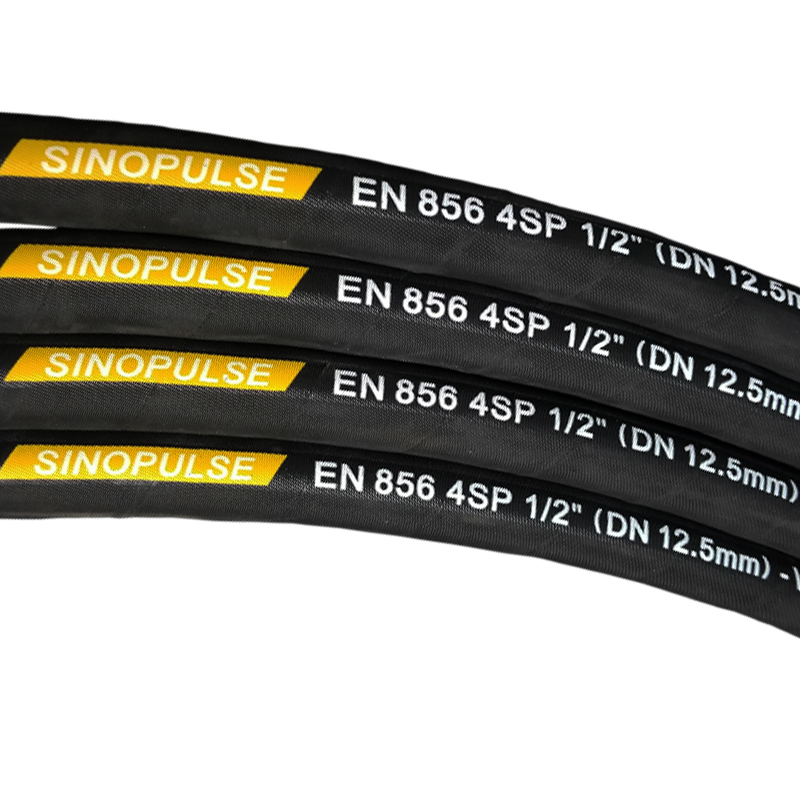

DIN EN856 4SP Four Steel Wire Spiral Hydraulic Hose

DIN EN856 4SP Four Steel Wire Spiral Hydraulic Hose

Short Description:

Structure:
Inner Tube: Oil resistant synthetic rubber,NBR.
Hose Reinforcement: Four high tensile steel wire spiral layers.
Hose Cover: Abrasion and weather resistant synthetic rubber, MSHA accepted.
Temperature: -40℃ to +125 ℃


DOWNLOAD PDF

Product Detail

Product Tags

HYDRAULIC HOSE 1SN-7-factory-1

Key Features



Key Features:

High quality, MSHA and ISO approved

Four steel wire spiral reinforced

High pressure rubber hose

EN856 standard

hydraulic hose 4sp-1
HYDRAULIC HOSE 1SN-9-layline
HYDRAULIC HOSE 1SN-2
HYDRAULIC HOSE 1SN-11-how to order hose assembly

Product Parameter



Part No.

I.D.

O.D.

W.P

B.P

B.R

W.T

Dash

Inch

mm

mm

MPa

PSI

MPa

PSI

mm

kg/m

4SP-04

1/4″

6.4

18.0

45.0

6525

180

26100

150

0.620

4SP-06

3/8″

9.5

20.8

44.5

6453

178

25810

180

0.730

4SP-08

1/2″

12.7

24.0

41.5

6018

166

24070

230

0.900

4SP-10

5/8″

15.9

27.6

35.0

5075

140

20300

250

1.130

4SP-12

3/4″

19.1

31.8

35.0

5075

140

20300

300

1.480

4SP-16

1″

25.4

39.7

28.0

4060

112

16240

340

1.980

4SP-20

1.1/4″

31.8

50.8

21.0

3045

84

12180

460

2.910

4SP-24

1.1/2″

38.1

57.2

18.5

2683

74

10730

560

3.430

4SP-32

2″

50.8

69.8

16.5

2393

66

9570

660

4.890

Application



Application:

Very high pressure applications used for petroleum based hydraulic fluids.

It is an extremely flexible hose designed to operate at high working pressures and finds its applications on modern construction, marine, mining, and forestry equipment.

hydraulic hose 4sp-3

Product Advantage



Our Company:

Sinopulse is a market-leading professional hydraulic hose manufacturer located in Handan city, Hebei province, China.



We mainly produce hydraulic hose R1/1SN, R2/2SN, 4SP, 4SH, R3, R6, R9, R12, etc.

And each of our hydraulic hose is in compliance with stringent industry standards such as SAE100 and DIN.we also have ISO and MSHA certificate. So high quality assured.



Our reinforced hoses can fit a wide variety of adapters and fittings.

Our hydraulic hose is designed for use with petroleum- and water-based hydraulic fluids. It can handle gasoline, diesel fuels, mineral oils, glycol, lubricating oils and more.

Hydraulic hoses handle high pressures in a wide range of fluid-power applications, from agriculture and manufacturing to all variety of heavy equipment operations.

We support hose layline, length, brand/logo customized, OEM accepted.
