Correct selection of ống công nghiệp products for high temperature applications is very important for safe and efficient operation. The following are key factors of high adaptability ống công nghiệp, including material characteristics, structural design and application requirements, to ensure the best performance in extreme high temperature conditions.
Ống công nghiệp Material Considerations
The material composition of an ống công nghiệp determines its resistance to high temperatures and must be carefully evaluated based on the specific thermal range of the application. Common materials include synthetic rubber compounds such as EPDM (ethylene propylene diene monomer) and silicone, which offer excellent heat resistance while maintaining flexibility. EPDM is particularly suitable for flexible steam hose applications due to its ability to withstand continuous exposure to temperatures up to 300°F and intermittent peaks up to 400°F. For more extreme conditions, such as those found in foundries or power generation facilities, silicone rubber hoses provide superior performance with temperature resistance reaching 500°F.
Thermoplastic materials like PTFE are often used in hot oil hose constructions because they combine exceptional thermal stability with chemical resistance. These hoses can operate continuously at temperatures up to 450°F while resisting degradation from petroleum-based fluids. The inner liners of such hoses are frequently reinforced with multiple layers of high-tensile textile or metal braids to prevent collapse under vacuum conditions, particularly important for ống hút dầu applications in high-temperature environments.

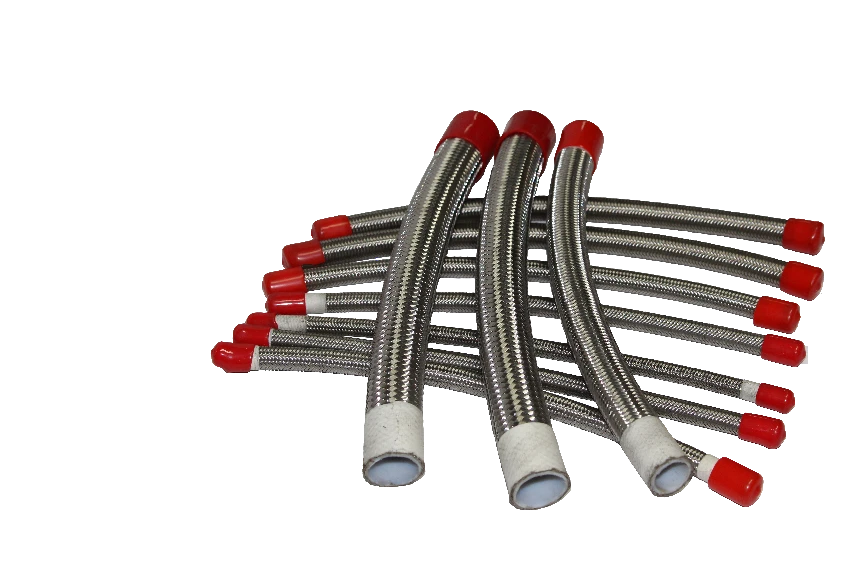

Reinforcement layers significantly enhance the performance of high-temperature hoses. A braided oil pressure line typically incorporates multiple layers of high-grade stainless steel wire braiding between the inner tube and outer cover. This construction not only provides superior burst pressure ratings but also minimizes expansion under high temperatures, ensuring consistent flow characteristics. Similarly, flexible steam pipe designs often feature spiral-wound stainless steel reinforcement that maintains hose shape and prevents kinking while allowing for necessary movement in steam transfer systems.
Ống công nghiệp Structural Design
The structural design of an ống công nghiệp must account for both thermal and mechanical stresses encountered in high-temperature applications. Single-braid constructions are commonly used for air pressure hose systems where moderate temperatures (up to 250°F/121°C) and pressures (up to 300 psi) are present. These hoses typically feature a synthetic rubber inner tube, one layer of high-tensile textile or wire reinforcement, and an abrasion-resistant outer cover. For more demanding applications, such as those requiring a 6mm air hose for precision pneumatic tools in heated environments, the hose may incorporate a tightly woven synthetic fiber braid to maintain flexibility while preventing ballooning under pressure.
Double-braided designs provide enhanced performance for extreme conditions. In ống hút dầu applications involving high-viscosity fluids at elevated temperatures, the dual reinforcement layers prevent hose collapse while maintaining fluid transfer efficiency. The inner braid typically consists of high-tensile synthetic fibers for flexibility, while the outer braid uses corrosion-resistant steel wires for structural support. This combination ensures the hose maintains its shape and flow characteristics even when handling heated oils or other viscous media.
Thermal expansion management is a critical aspect of hose design for high-temperature service. Flexible steam hose products often incorporate special construction techniques to accommodate dimensional changes. Some designs feature corrugated metal cores that allow for expansion and contraction without compromising the steam barrier, while others use specially formulated elastomers that maintain their physical properties across wide temperature ranges. The connection points, where thermal stress is most concentrated, frequently employ forged steel fittings with precision machining to ensure leak-proof seals even after repeated thermal cycling.
Ống công nghiệp Application-Specific Selection
Different industries require tailored ống công nghiệp solutions based on their thermal and operational demands. In food processing, hoses must endure both high-temperature sanitation (up to 180°F/82°C) and hot oil transfer, necessitating FDA-approved hot oil hose constructions with smooth interiors. Hydraulic systems demand braided oil pressure line designs capable of withstanding 200°F/93°C fluids at 5,000 psi pressures, using multiple steel wire braids for reinforcement.
Steam applications present unique challenges where ống hơi bện hoặc flexible steam pipe options are selected based on temperature and pressure ranges. Plant steam service typically uses EPDM-lined hoses for 150 psi at 366°F/186°C, while superheated steam systems require PTFE-lined versions rated for 750°F/400°C. Pneumatic systems in heated environments need specialized ống dẫn khí công nghiệp designs that resist hardening from continuous hot air exposure while maintaining flexibility.
Each application requires careful assessment of temperature extremes, pressure fluctuations, chemical exposure, and mechanical stresses to ensure optimal hose performance and longevity. Manufacturers provide detailed specifications to match hose capabilities with specific operational parameters, preventing premature failures in critical systems.
After a comprehensive evaluation of the material, structure and operating conditions of the industrial table, it is a wise choice to choose industrial hose from Sinopulse under high temperature conditions. This choice and subsequent operation can ensure reliable tower performance while minimizing safety risks and time in a strictly demanding environment.
