SAE 100 R1 AT/DIN EN853 1SN Một ống thủy lực bện bằng thép
The SAE 100 R1 AT hydraulic hose is a single-ply, wire-reinforced, high-pressure hydraulic hose. It is a single-wire braid hydraulic hose, which means it has a single layer of wire reinforcement braided around the inner tube. It is manufactured in accordance with the Society of Automotive Engineers (SAE) Standard for medium- or high-pressure rubber hose for hydraulic systems.
In addition, it meets or exceeds the requirements of SAE 100R1AT and EN853 1SN, ensuring compliance with industry standards. For operating pressure of up to 2320 PSI, this hose provides reliable performance and durability in demanding environments. Trust SINOPULSE to meet your hydraulic hose needs.
The specification of EN 853 1SN/SAE 100 R1 steel wire reinforced hydraulic hose
|
Phần số |
NHẬN DẠNG |
ĐẠI HỌC |
WP |
BP |
BR |
WT |
|||
|
Dấu gạch ngang |
Inch |
mm |
mm |
MPa |
PSI |
MPa |
PSI |
mm |
kg/m |
|
1SN-03 |
3/16″ |
4.8 |
11.5 |
25.0 |
3625 |
100 |
14500 |
90 |
0.210 |
|
1SN-04 |
1/4″ |
6.4 |
13.2 |
22.5 |
3263 |
90 |
13050 |
100 |
0.250 |
|
1SN-05 |
5/16″ |
7.9 |
14.7 |
21.5 |
3118 |
85 |
12325 |
115 |
0.311 |
|
1SN-06 |
3/8″ |
9.5 |
17.1 |
18.0 |
2610 |
72 |
10440 |
130 |
0.360 |
|
1SN-08 |
1/2″ |
12.7 |
20.4 |
16.0 |
2320 |
64 |
9280 |
180 |
0.451 |
|
1SN-10 |
5/8″ |
15.9 |
23.7 |
13.0 |
1885 |
52 |
7540 |
205 |
0.519 |
|
1SN-12 |
3/4″ |
19.1 |
27.3 |
10.5 |
1523 |
42 |
6090 |
240 |
0.651 |
|
1SN-16 |
1″ |
25.4 |
36.0 |
8.7 |
1262 |
35 |
5075 |
300 |
0.909 |
|
1SN-20 |
1,1/4″ |
31.8 |
42.5 |
6.3 |
914 |
25 |
3654 |
420 |
1.300 |
|
1SN-24 |
1,1/2″ |
38.1 |
48.5 |
5.0 |
725 |
20 |
2900 |
500 |
1.690 |
|
1SN-32 |
2″ |
50.8 |
62.0 |
4.0 |
580 |
16 |
2320 |
630 |
1.891 |
EN 853 1SN/SAE 100 R1 Hydraulic Hose Ứng dụng
Industrial machinery: SAE 100R1 hoses are commonly used in industrial machinery such as hydraulic presses, machine tools, and conveying systems. These hoses help convey hydraulic fluids, operate various components, and ensure smooth, reliable operation.
Construction equipment: Hydraulic systems are widely used in construction machinery such as excavators, loaders, and cranes, and SAE 100R1 hoses provide the hydraulic power required to control the movement of different components such as booms, buckets, and outriggers.
Agricultural machinery: Tractors, harvesters, and other agricultural equipment rely heavily on hydraulic systems for functions such as lifting, steering, and operating attachments, and SAE 100R1 hoses are suitable for conveying hydraulic fluids in these applications.
Automotive: SAE 100R1 hoses are also used in the automotive industry for power steering, braking, and suspension systems. These hoses aid in the delivery of hydraulic fluid to ensure proper functioning and control of these systems.

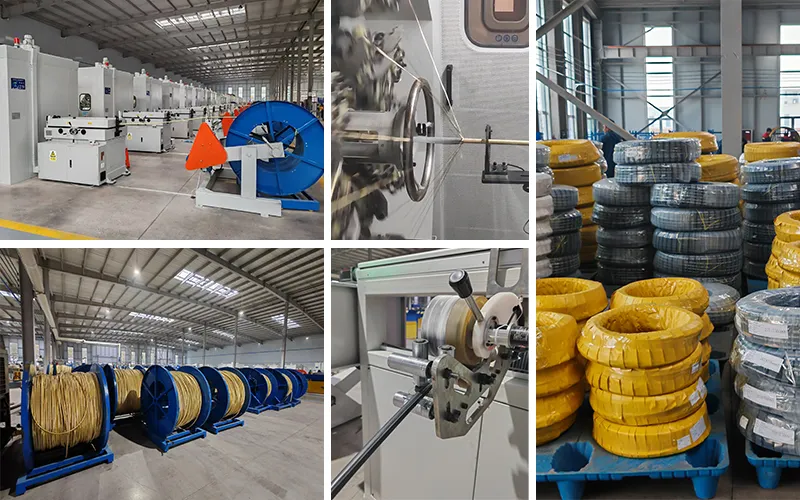

Why choose Sinopulse Company?
Sinopulse là một công ty dẫn đầu thị trường nhà sản xuất ống thủy lực and professional exporter.
We offer hydraulic hoses that can withstand the hardest working environment.
Our hydraulic hoses are designed to perform in both high and low pressures, and be suitable for a variety of applications.
Our hydraulic hoses are all in compliance with stringent industry standards such as SAE 100 and DIN, are also approved by ISO and MSHA.
Our steel wire reinforced hoses can fit in a wide range of adapters and fittings.
Ống thủy lực không chỉ có thể vận chuyển chất lỏng thủy lực gốc dầu mỏ và nước mà còn có thể vận chuyển xăng, nhiên liệu diesel, dầu khoáng, glycol, dầu bôi trơn, v.v.
Ống thủy lực xử lý áp suất cao trong nhiều ứng dụng sử dụng chất lỏng, từ nông nghiệp và sản xuất đến mọi hoạt động của thiết bị hạng nặng.
We can also make hydraulic hose assemblies for customers.
The finished assemblies are hydraulic hoses with crimp fittings pre-attached.
We support customizing the type of hose, length and fittings to create the perfect assembly for your project.
