As a leading provider among hydraulic hose suppliers, HEBEI SINOPULSE TECH GROUP CO.,LTD. is dedicated to equipping customers with practical knowledge to accurately identify types of hydraulic hose for diverse industrial applications. Our comprehensive product lineup covers industry-standard hydraulic hose variants, classified by global standards, materials, and use cases. This guide outlines systematic identification steps—from recognizing classification systems to verifying key parameters—ensuring customers select the right hydraulic hose type for optimal performance and safety.
HEBEI SINOPULSE TECH GROUP CO., LTD. explains that types of hydraulic hose are primarily classified by international standards such as SAE (Society of Automotive Engineers), DIN (Deutsches Institut für Normung), and ISO (International Organization for Standardization), which define critical specifications for consistency.
1. SAE Standard Hydraulic Hoses (Most Common)
Designed by the Society of Automotive Engineers (SAE), this is the most widely used hydraulic hose system globally.
Common Models:
SAE 100 R1 (Single-layer steel wire braid)
SAE 100 R2 (Double-layer steel wire braid)
SAE 100 R5 (Fiber braid + outer fabric coating)
SAE 100 R12 (Multi-layer steel wire spiral winding)
SAE 100 R13 (Ultra-high pressure, 4-6 layers spiral winding)
SAE 100 R15 (Higher pressure rating, heavy-duty applications)
SAE 100 R16 / R17 (Lightweight design, high flexibility)
SAE 100 R14 (PTFE Teflon inner tube)
SAE 100 R7 / R8 (Thermoplastic tube, lightweight, wear-resistant)
SAE 100 R4 (Oil suction pipe / oil return pipe)
2. DIN EN Standards (Widely used in Europe)
For example:
EN 853 1SN / 2SN (corresponding to R1 / R2)

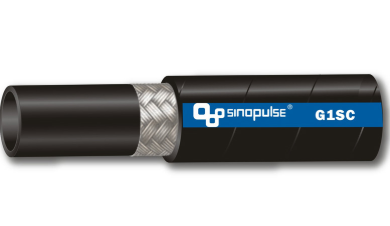

EN 857 1SC / 2SC (Thinner outer layer, more flexible)
EN 856 4SP / 4SH (Ultra-high pressure spiral steel wire)
EN 854 1TE / 2TE / 3TE (Fiber braided, low-pressure system)
3. ISO Standards
ISO 1436: Fiber or steel wire braided
ISO 3862: Steel wire spiral wound high-pressure hose
ISO 4079: Fiber braided reinforced hose
ISO 11237: Compact steel wire braid (similar to EN 857)
Our product range strictly adheres to these standards, with each hydraulic hose type marked with standard designations for easy identification. Understanding these classification systems helps customers quickly narrow down options, as reputable hydraulic hose suppliers align their products with global standards to ensure interchangeability and reliability across machinery and regions.
- The core materials and construction of a hydraulic hose are key differentiators when identifying its type, as they directly impact performance and application suitability. HEBEI SINOPULSE TECH GROUP CO.,LTD. produces types of hydraulic hose with diverse material combinations: inner tubes made of synthetic rubber, thermoplastic, or PTFE (polytetrafluoroethylene) for compatibility with different fluids (oil, water, chemicals), and reinforcement layers of braided steel wire, spiral steel wire, or textile for pressure resistance.
- For instance, rubber-based hydraulic hose types with steel wire braiding excel in high-pressure industrial settings, while thermoplastic variants offer flexibility for compact machinery. By examining material composition—visible through the outer cover or specified in product documentation—customers can identify hydraulic hose types tailored to their fluid type, temperature range, and pressure requirements. As trusted hydraulic hose suppliers, we provide detailed material breakdowns for each product to support accurate identification.
- Types of hydraulic hose are engineered with application-specific designs, making use case analysis a critical step in identification. HEBEI SINOPULSE TECH GROUP CO., LTD. categorizes its hydraulic hose lineup to address diverse industry needs: high-pressure spiral-wound hoses for construction machinery, low-pressure suction hoses for agricultural equipment, chemical-resistant PTFE hoses for industrial processing, and compact braided hoses for automotive systems.
- Each type features design adaptations—such as thicker reinforcement for heavy-duty applications or flexible outer covers for tight installations—that align with specific operating conditions.
- By matching the intended application (e.g., mining, manufacturing, marine) to the hydraulic hose’s design features, customers can identify the right type. Our technical team collaborates with clients to map application requirements (pressure, temperature, fluid, space constraints) to suitable types of hydraulic hose, ensuring optimal performance and longevity.
Global standards classify types of hydraulic hose based on construction (reinforcement, inner tube material), pressure ratings, and dimensional tolerances (ID/OD). HEBEI SINOPULSE TECH GROUP CO.,LTD. explains that SAE, DIN, and ISO establish uniform criteria, ensuring hydraulic hose types from different hydraulic hose suppliers are interchangeable. For example, the SAE 100R series defines braided and spiral-wound hoses, while DIN EN 853 specifies wire-braided types—simplifying identification by providing a common language for customers and suppliers.
Material composition and construction directly indicate a hydraulic hose type’s capabilities. HEBEI SINOPULSE TECH GROUP CO.,LTD. notes that inner tube material (rubber, PTFE) signals fluid compatibility, while reinforcement type (braided wire, spiral wire) indicates pressure resistance. For instance, PTFE-lined hoses are chemical-resistant, and spiral-wound steel reinforcement denotes high-pressure use—allowing customers to identify types of hydraulic hose by these physical attributes, supported by supplier documentation.
Customers can match applications to types of hydraulic hose by mapping key requirements (pressure, temperature, fluid, space) to design features. HEBEI SINOPULSE TECH GROUP CO.,LTD. advises consulting with hydraulic hose suppliers to align use cases (e.g., construction, agriculture, industrial) with hose capabilities: high-pressure spiral hoses for heavy machinery, flexible braided hoses for tight spaces, and chemical-resistant types for processing. This targeted approach ensures the identified hydraulic hose type performs optimally in its intended environment.
Labels and markings on hydraulic hose types include standard designation, pressure rating, ID/OD, material, and fluid compatibility—all essential for identification. HEBEI SINOPULSE TECH GROUP CO.,LTD. ensures these markings are compliant and durable, allowing customers to quickly cross-reference with their needs. For example, a "DIN EN 857 2SC" marking identifies a two-wire braided hydraulic hose, while pressure ratings confirm it suits high-pressure applications—simplifying identification without technical expertise.
Reputable hydraulic hose suppliers like HEBEI SINOPULSE TECH GROUP CO.,LTD. provide accurate classification, detailed specifications, and technical support to ensure correct hydraulic hose type identification. We offer expertise in matching standards, materials, and parameters to applications, access to comprehensive product data, and customized recommendations. Collaborating with trusted suppliers eliminates misidentification risks, ensuring customers select types of hydraulic hose that deliver safety, efficiency, and long-term value.
