Caratteristiche principali:
Approvato da MSHA
EN/DIN e Nuovo SAE standard pressione di lavoro
Proprietà ignifuga del composto di copertura
Marchio OEM

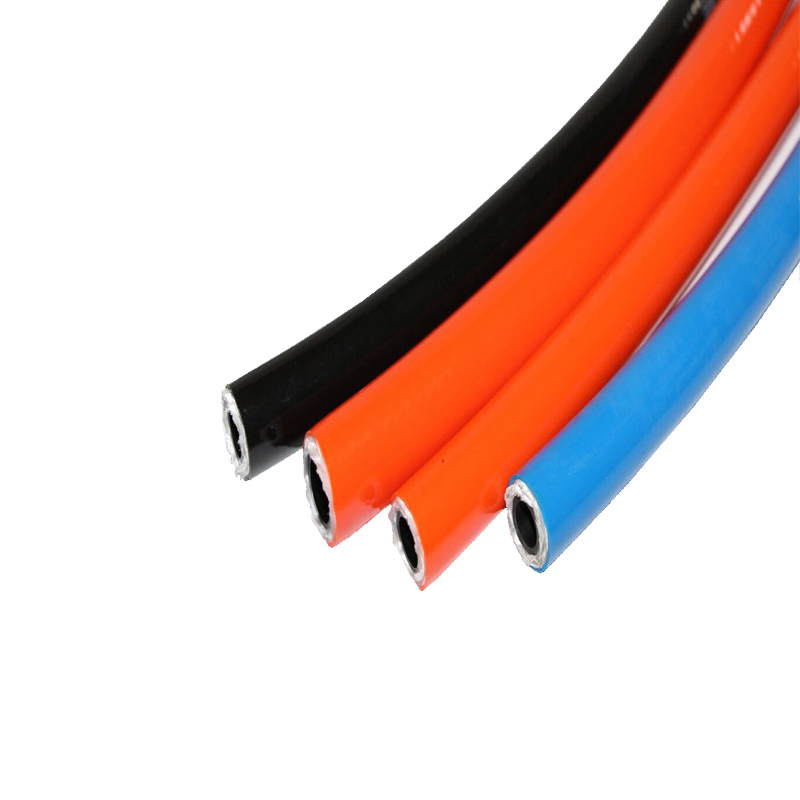

Alternative color: red, black, blue, yellow, orange, gray
|
Numero parte |
ID |
OD |
Parola chiave |
BP |
Brasile |
Peso |
|||
|
Trattino |
Pollice |
mm |
mm |
MPa |
PSI |
MPa |
PSI |
mm |
kg/m |
|
R7-02 |
1/8″ |
3.3 |
8.5 |
17.2 |
2494 |
69 |
9991 |
13 |
0.038 |
|
R7-03 |
3/16″ |
4.8 |
10.8 |
20.7 |
3002 |
83 |
11992 |
20 |
0.080 |
|
R7-04 |
1/4″ |
6.4 |
13.0 |
20.7 |
3002 |
83 |
11992 |
33 |
0.120 |
|
R7-05 |
5/16″ |
7.9 |
15.1 |
17.2 |
2494 |
69 |
9991 |
46 |
0.145 |
|
R7-06 |
3/8″ |
9.5 |
17.0 |
15.5 |
2248 |
62 |
9005 |
51 |
0.170 |
|
R7-08 |
1/2″ |
12.7 |
20.7 |
13.8 |
2001 |
55 |
8004 |
76 |
0.250 |
|
R7-10 |
5/8″ |
15.9 |
23.0 |
13.8 |
2001 |
55 |
8004 |
86 |
0.300 |
|
R7-12 |
3/4″ |
19.1 |
26.0 |
11.5 |
1668 |
45 |
6525 |
150 |
0.346 |
|
R7-16 |
1″ |
25.4 |
32.0 |
6.9 |
1001 |
28 |
4060 |
180 |
0.422 |
Applicazione:
For use with prtroleum, water and synthetic based fluids at medium pressure.
Esso is suitable for delivering synthetic, petroleum or water-based hydraulic fluids in the working temperature of -40 °C to +93 °C. It is non-conductive due to its appropriate materials.
La nostra azienda:
Sinopulse Hose Factory Co.,Ltd is the professional manufacturer of hydraulic hose, industrial rubber hose and hose fittings from China, founded in 2001, we located at Feixiang Industrial Zone, Handan city, Hebei province, China.
Our products passed the ISO9001:2008 certification and MSHA. We meet the international standard SAE J517 and DIN EN.
All the products are widely used for construction machines, minings, agriculture machines, petroleum industrial and industrial equipments.
Welcome all the international friends come to China and visit our factory!
Disponiamo di un'ampia gamma di tubi idraulici, in grado di soddisfare le vostre diverse applicazioni.
SAE100 R1AT/EN 853 1SN (ONE STEEL WIRE BRAIDED HYDRAULIC HOSE)
SAE100 R2AT/EN853 2SN (TWO STEEL WIRE BRAIDED HYDRAULIC HOSE)
DIN 20023/EN 856 4SP (FOUR STEEL WIRE SPIRAL HYDRAULIC HOSE)
DIN 20023/EN 856 4SH (FOUR STEEL WIRE SPIRAL HYDRAULIC HOSE)
SAE100 R12 (FOUR STEEL WIRE SPIRAL HYDRAULIC HOSE)
SAE100 R13 (FOUR OR SIX STEEL WIRE SPIRAL HYDRAULIC HOSE)
SAE100 R15 (SIX STEEL WIRE SPIRAL HYDRAULIC HOSE)
EN 857 1SC (ONE STEEL WIRE BRAIDED HYDRAULIC HOSE)
EN857 2SC (TWO STEEL WIRE BRAIDED HYDRAULIC HOSE)
SAE100 R16 (ONE OR TWO STEEL WIRE BRAIDED HYDRAULIC HOSE)
SAE100 R17 (ONE OR TWO STEEL WIRE BRAIDED HYDRAULIC HOSE)
SAE100 R3 / EN 854 2TE (TWO FIBRE BRAIDED HYDRAULIC HOSE)
SAE100 R6 / EN 854 1TE (ONE FIBRE BRAIDED HYDRAULIC HOSE)
SAE100 R5 (FIBER BRAIDED COVER HYDRAULIC HOSE)
SAE100 R4 (HYDRAULIC OIL SUCTION HOSE)
SAE100 R14 (PTFE SS304 BRAIDED)
SAE100 R7 (ONE WIRE OR FIBRE BRAIDED THERMOPLASTIC HOSE)
SAE100 R8 (TWO WIRE OR FIBRE BRAIDED THERMOPLASTIC HOSE)
