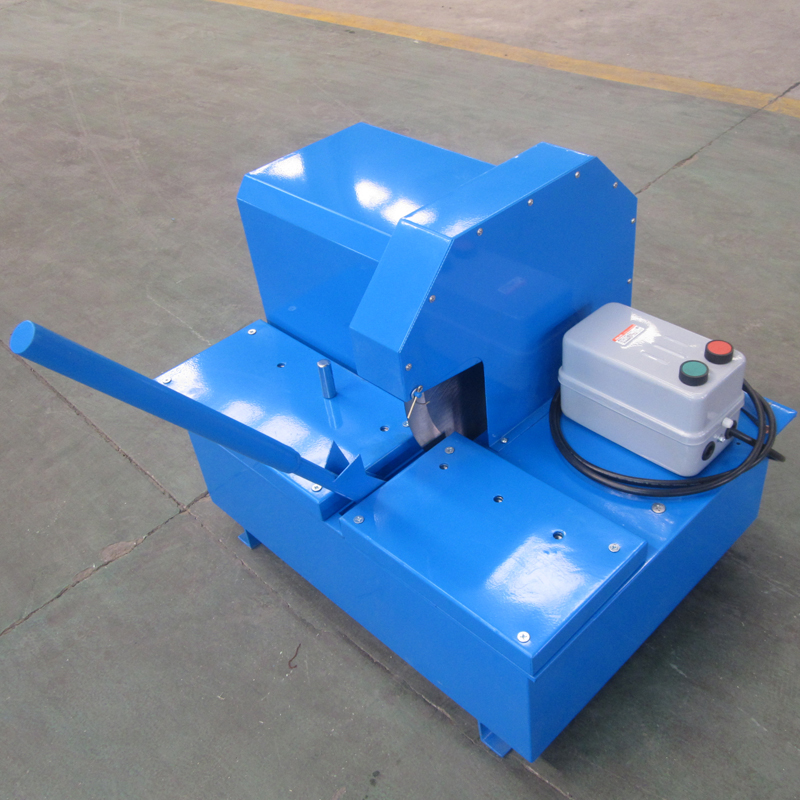

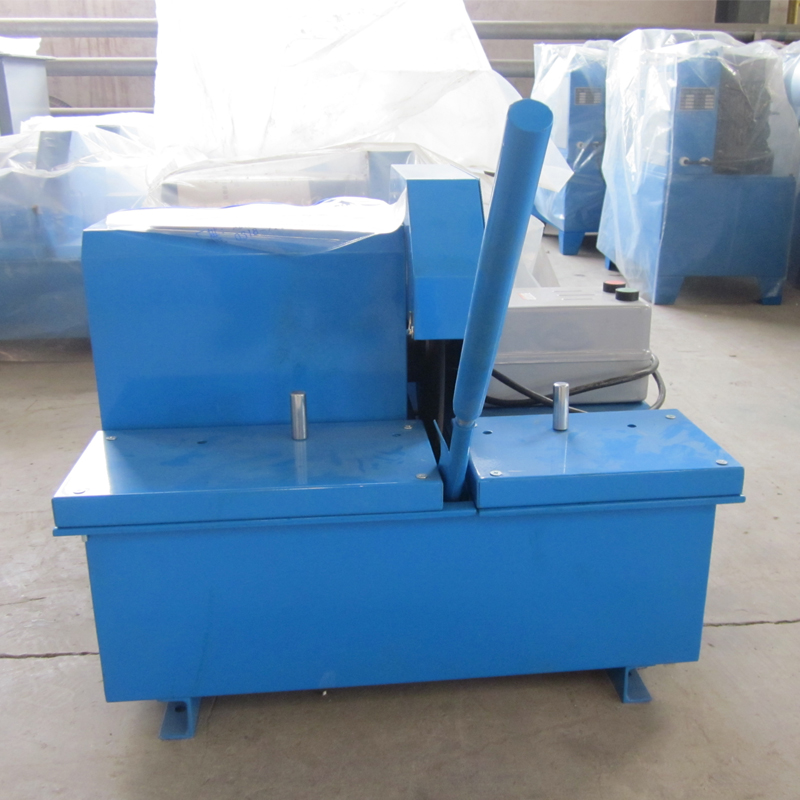

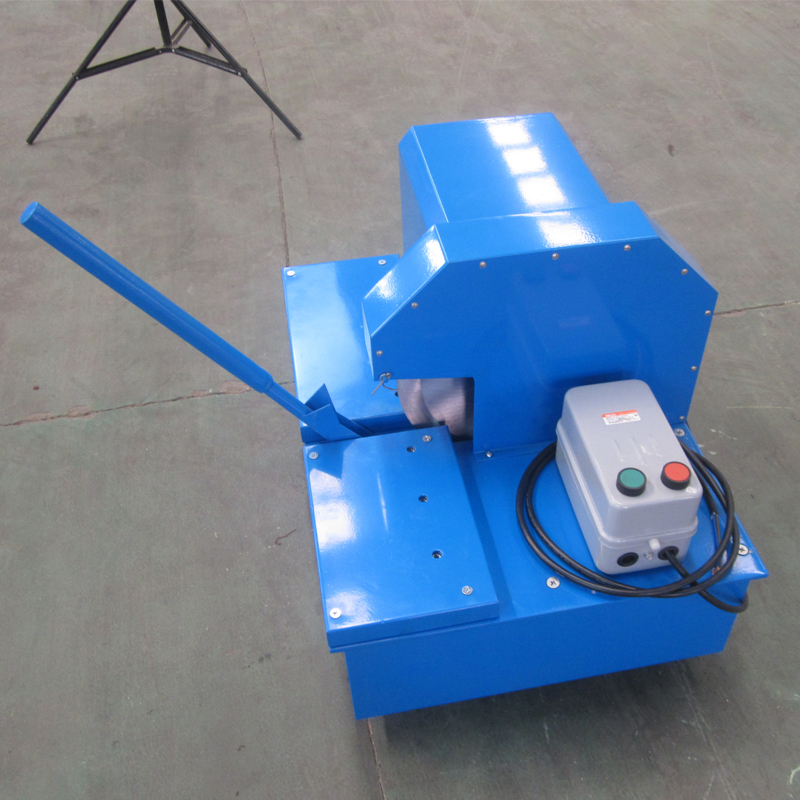

The Sinopulse Cutting machine C05 have the most Simple structure, convenient operation, is the most cost-effective hose cutting tools. It's simple and compact and has no requirements for the workplace, Low cost, suitable for store retail, can meet customer's customized needs.
In generally, the machine are 220V, we also can produce 380V with three-phase electric machine. the measure : L*W*H:650mm*410mm*450mm and only 70kg.
It can cut the hose size from 3/16" to 2" at any length.
| Part No. : | C05 |
| Cutting Range: | 2" |
| Max | 51m |
| Motor power : | 3kW |
| Standard voltage : | 380V/220V |
| Dimension LxWxH | 650mm*410mm*450mm |
| Weight: | 70Kg |
1.Automatic Smooth cutting face
2.Cutting speed adjustable
3.Foot pedal control
4.Safety operation and high efficient
This model is suitable for cutting all kinds of steel wire braided hose1SN, 2SN R1,R2, R5, R4, R16, R17, 1SC, 2SC, steel wire spiraled hose R12, R13, R15, 4SP, 4SH, adding cloth hose and cotton reinforced hose range from 6mm to 51 mm (1/4”-2” ).
It is the best choice for making hose assemblies maintenance and manufacturers
