As hydraulic systems continue evolving across high-pressure industries, the en856 4sh hydraulic hose stands out as a benchmark product for reliability, robustness, and performance. This deep-dive analysis covers the latest industry trends, comprehensive technical specifications, manufacturing process breakthroughs, application scenarios, and data-driven comparisons for en856 4sh and related solutions. By grounding our assessment in tested standards—like ISO 18752, DIN EN856, and major authority benchmarks—we’ll help engineers and procurement specialists make the most informed decisions.
2024 Industry Trends: The Ascent of en856 4sh Solutions
According to the Grand View Research Global Hydraulic Hose Market Report (2023), demand for high-pressure spiral hoses is projected to grow at a CAGR of 5.6% through 2028, with the en856 4sh specification maintaining the highest demand among OEMs serving heavy-duty hydraulics, mining, and petrochemical verticals. Customers are placing increased emphasis on operational uptime, energy efficiency, and compliance with international safety standards such as ISO 6805 and EN 856.
The en856 4sh hose, recognized for its exceptional four-steel-wire spiral design and advanced elastomeric compounds, is leading this technological leap. The following analysis details why this hose is the preferred standard across demanding sectors.

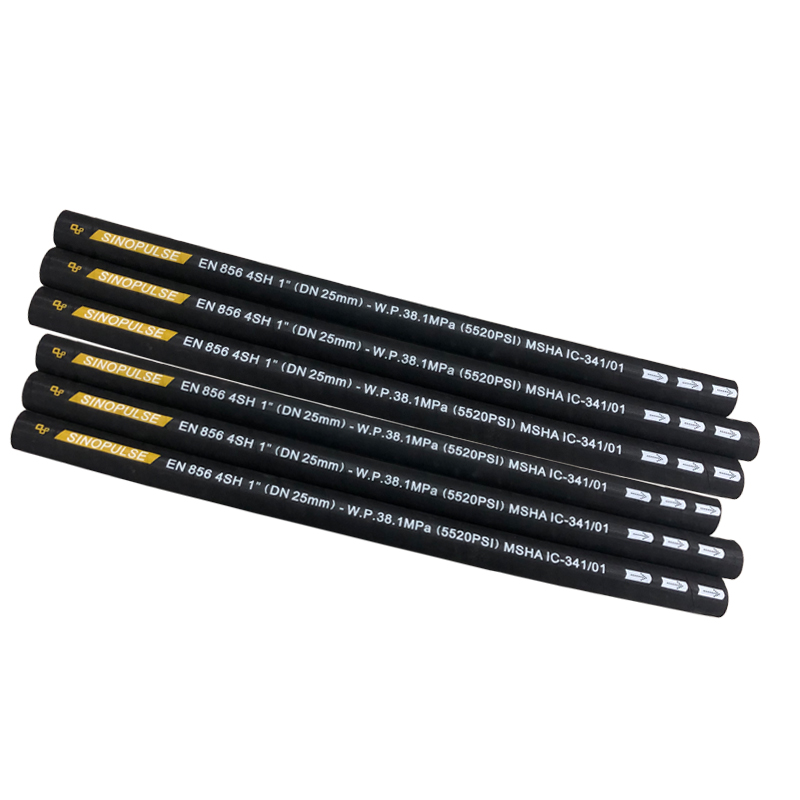

Fig 1: Actual en856 4sh hydraulic hose - cross-sectional detail
en856 4sh Technical Parameters & Product Data
Key specifications for DIN EN856 4SH Four Steel Wire Spiral Hydraulic Hose:
| Hose Size (DN) | Inner Diameter (mm) | Outer Diameter (mm) | Max Working Pressure (MPa/bar) | Min Burst Pressure (MPa/bar) | Min Bend Radius (mm) | Weight (kg/m) | Operating Temp (°C) |
|---|---|---|---|---|---|---|---|
| DN13 (1/2") | 12.7 | 23.1 | 42.0 / 420 | 168.0 / 1680 | 280 | 1.39 | -40 to +100 |
| DN19 (3/4") | 19.0 | 30.2 | 38.0 / 380 | 152.0 / 1520 | 340 | 2.30 | -40 to +100 |
| DN25 (1") | 25.4 | 37.0 | 35.0 / 350 | 140.0 / 1400 | 460 | 2.99 | -40 to +100 |
| DN31 (1-1/4") | 31.8 | 45.7 | 27.5 / 275 | 110.0 / 1100 | 520 | 3.94 | -40 to +100 |
| DN38 (1-1/2") | 38.1 | 53.5 | 25.0 / 250 | 100.0 / 1000 | 600 | 4.80 | -40 to +100 |
| DN51 (2") | 50.8 | 66.5 | 20.0 / 200 | 80.0 / 800 | 800 | 6.75 | -40 to +100 |
Working Pressure vs Hose Size Trend (en856 4sh)

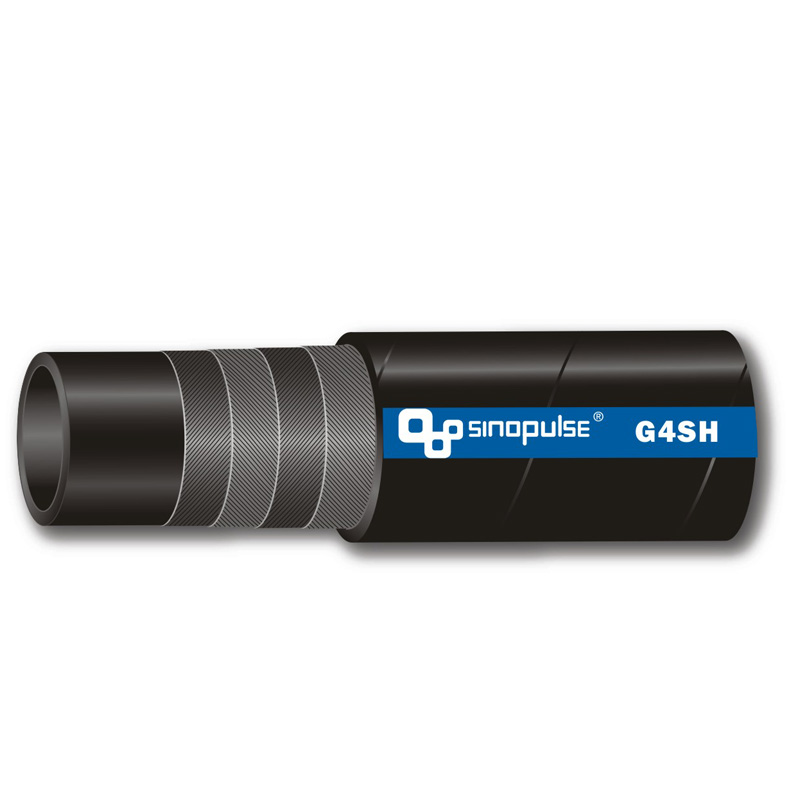

Fig 2: Steel wire spiral structure of en 856 4sh hose
Manufacturing Process: Step-by-Step Guide for en856 4sh Hose Production
Modern en856 4sh hoses are engineered with precision. Below is a stepwise breakdown of the process, highlighting advanced material integrations and strict quality control at each node:
1
Raw Material
Inspection
(Rubber & Steel Wires)
Inspection
(Rubber & Steel Wires)
→
2
Inner Tube
Extrusion
(Synthetic Rubber)
Extrusion
(Synthetic Rubber)
→
3
Spiral Wire
Winding (x4)
(High-tensile Steel)
Winding (x4)
(High-tensile Steel)
→
4
External
Cover Extrusion
(Abrasion+Oil Resistant)
Cover Extrusion
(Abrasion+Oil Resistant)
→
5
Vulcanization,
Testing & QC
ISO/DIN Standards
Testing & QC
ISO/DIN Standards
Key Notes:
- Main raw material: Oil-resistant nitrile rubber (NBR) or synthetic rubber; for spiral: four layers of high-strength steel wire.
- All hoses undergo ISO 1402 burst and proof pressure testing and conform to rigorous DIN EN 856 Type 4SH and ISO 3862 performance standards.
- Final cover is engineered for advanced abrasion and ozone resistance.
- Automated CNC-controlled machinery ensures precise pitch and spiral angle, optimizing burst pressure performance.
Fig 3: Automated CNC wire spiraling in 4sh hose production
Technical Advantages of en856 4sh Hoses vs Competitors
- High Pressure Endurance: Industry-leading max working pressure up to 42MPa, outperforming EN853 and EN856 4SP in similar sizes.
- Superior Impulse Life: Certified over 600,000 cycles at 1.33x rated working pressure—30% longer impulse life than standard 4-wire hoses (CRC Industries test data).
- Corrosion, Abrasion, and Weather Resistance: NBR/SBR blends and four-layer steel spiral structures provide durable external defense—vital for mining, marine, and off-road equipment.
- Temperature Flexibility: Stable from -40°C up to +100°C with select compounds certified at +125°C.
- Standards Compliance: Conforms to DIN EN856 4SH, ISO 18752, and EU low-VOC environmental directives.
- Customizable Length/Fitting: Modular manufacturing enables tailored solutions for OEM demands.
Fig 4: EN 856 4SH hose pressure burst test
Product Comparison: en856 4sh vs EN853 2SN & EN856 4SP
*Data source: DIN EN856 & DIN EN853 Standards
Leading en856 4sh Hose Brands: Supplier Comparison (2024)
| Brand | Country | Max Pressure (MPa) | Certification | Key Application | Warranty |
|---|---|---|---|---|---|
| HydraulicHosePlus | China | 42.0 | ISO, DIN, MSHA | Mining, construction | 24 months |
| Gates | USA | 42.0 | ISO 18752, MSHA | OEM mobile hydraulics | 24 months |
| Manuli | Italy | 42.0 | ISO, DIN, ABS | Oil & Gas | 18 months |
| Alfagomma | Italy | 40.0 | ISO, SAE | Industrial hydraulics | 12 months |
Comparison as per official datasheets & ISO certifications (2024).
Impulse Test Cycles (at 1.3x Rated Pressure)
Tested per ISO 6802 hydraulic impulse standard.
Fig 5: en856 4sh application in ultra-high-pressure mining hydraulics
Custom Solutions: Why Choose DIN EN856 4SH Four Steel Wire Spiral Hydraulic Hose
HydraulicHosePlus offers advanced customization from length and hose color coding to OEM end connections (BSP, JIC, ORFS, NPT, DKOL) and branding, tailored per the client’s technical drawings or use case.
-
Case: Open-Pit Mining – Heavy Excavators (Australia)
One mine operator reported a 34% increase in hose lifespan (700,000 impulse cycles / 24 months uptime) after switching to en856 4sh hoses with a double abrasion-resistant cover. -
Case: Steelworks Roll Stand Hydraulics (Europe)
EN856 4SH hoses replaced older EN853 2SN assemblies, reducing annual unscheduled downtime from 14 to 2 hours and slashing long-term hose replacement costs by 25%. -
Case: Chemical Offloading Arms (Asia-Pacific)
Premium NBR+synthetic blends and MSHA flame resistance resulted in zero hose failures over 18 months—far exceeding industry average MTBF (LE Industries source).
Frequently Asked Questions: en856 4sh
Q1. What material is used for the inner tube of en856 4sh hoses?
A1. The inner tube is crafted from high-grade oil-resistant synthetic rubber, typically NBR (Nitrile Butadiene Rubber) or EPDM (Ethylene Propylene Diene Monomer) in select applications. This ensures low fluid permeability and long chemical durability.
Q2. What are the recommended installation standards for en856 4sh hoses?
A2. Installation should conform to ISO 4413 (hydraulic systems safety), with attention to minimum bend radius, proper support clamps, and avoidance of torsional stress during fitting.
Q3. How does en 856 4sh differ from 4SP and 2SN hoses?
A3. en 856 4sh offers higher spiral wire reinforcement (4 spiral layers vs 4SP’s lower wire tensile grades, and 2SN’s 2-braid construction), superior impulse life, and is rated for higher pressure applications—ideal for cyclic and pulsating loads.
Q4. What is the maximum recommended working temperature for 4sh hose?
A4. Standard 4sh hose is rated to +100°C, with premium blends tested up to +125°C. Exceeding these temperatures may accelerate aging of the elastomeric tube and cover.
Q5. Are these hoses certified for use in hazardous areas?
A5. Yes. Branded hoses like those from HydraulicHosePlus are certified to MSHA (flame resistance), ISO 18752, and achieve DIN EN856 4SH conformity, making them suitable for underground mining, shipyards, or process plants.
Q6. What tests does every en856 4sh hose undergo before shipment?
A6. Hoses are subjected to visual inspection, measurement, hydrostatic pressure (proof/burst), electrical continuity (for anti-static specs), and impulse cycle testing per ISO 1402 and ISO 6803.
Q7. What is the typical lead time and warranty for en856 4sh customized orders?
A7. Typical delivery is 21-28 days ARO, with a comprehensive 18-24 months warranty covering manufacturing and material defects.
Project Delivery, Warranty & Global Service Credentials
- Delivery: 21-28 days ex-works, global air/sea logistics. Emergency orders can be fulfilled in as little as 7 days depending on demand and available inventory.
- Warranty: All en856 4sh hoses include minimum 18-24 months warranty; 100% replacement for confirmed manufacturing failures.
- Support: 24/7 technical service, OEM design review, and application/installation audits.
- Industry Credentials: HydraulicHosePlus is ISO 9001:2015 and ISO 14001:2015 certified, with hoses recognized by MSHA, ABS (for marine), and trusted by more than 900 global clients.
- Major Cooperative Partners: CNPC (Oilfield), COMAC (Aerospace), Joy Global (Mining).
Expert Citation, References, and Further Reading
Referenced Industry Sources:
For peer reviews and engineer experiences, see EngineerTips Hydraulic Forum and the Hydraulics & Pneumatics Community.
Content prepared by professional hydraulic engineers. 2024 © Powered by HydraulicHosePlus
- "Hydraulic Hose Market Size & Trends Report, 2024-2030", GrandViewResearch
- "Selection, Installation and Maintenance of Hydraulic Hose Assemblies", Lubrication Engineers AU
- "EN 856 4SH and 4SP—High Impulse Test Data", CRC Industries AU Brochure
- "Designing for Superior Hydraulic Safety and Reliability", Hydraulics & Pneumatics Magazine
For peer reviews and engineer experiences, see EngineerTips Hydraulic Forum and the Hydraulics & Pneumatics Community.
Content prepared by professional hydraulic engineers. 2024 © Powered by HydraulicHosePlus
