SNP-32D is mainly used for buckling processing for high pressure rubber hose assembly in the mechanical engineering. The machine has better performance to crimping the hose assemblies which has big force power, low noise, and operation easily. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.
There are 13 sets standard deis comes together with the machines, and we develop the quick change tools for the install and unload the Dies, it will save your working time to assemble different size for the hose and fittings.
Besides, under all the configuration of this crimping machine 32D, this crimping tool can assemble the hose up to 2 inch of 6 steel wire hydraulic hose, and the hose assembly effect from it is perfect.
| Numero parte: | 32D |
| Dimensioni del tubo: | 2” 6S |
| Gamma di swagging: | ¤ 6-87mm |
| Master Die Shoe Length: | 85mm |
| Tensione standard: | 380V/50Hz |
| Potenza del motore: | 4kW |
| Opzione Tensione e Potenza: | 220V/2,2kW |
| Pompa: | 19L/min |
| Number of Swagging/Hour: | 1000 |
| Livello di rumore: | 70dB |
| Apertura massima: | ¤+34mm |
| Forza di crimpatura: | 5260kN |
| Diametro L*W*H: | 650mmx500mmx1300mm |
| Peso senza olio: | 350KG |
1) computer numerically controlled Hydrauic hose crimping machine
The computer controller hydraulic hose crimping machine have more advantage, it is more convenient to operate, compare with the traditional manual adjustment, the crimping precision is 0.01mm, it is 10 times than the traditional crimping machine.
2) Materiale
We adopted the imported and famous domestic power motor, and the chromium oil cylinder cover, oil tank, and the piston rod.
3) Sistema di conduzione idraulica
Our Hydraulic conduction system are stable and great longevity. It is durable and oil right , the hose pressing have better performance.

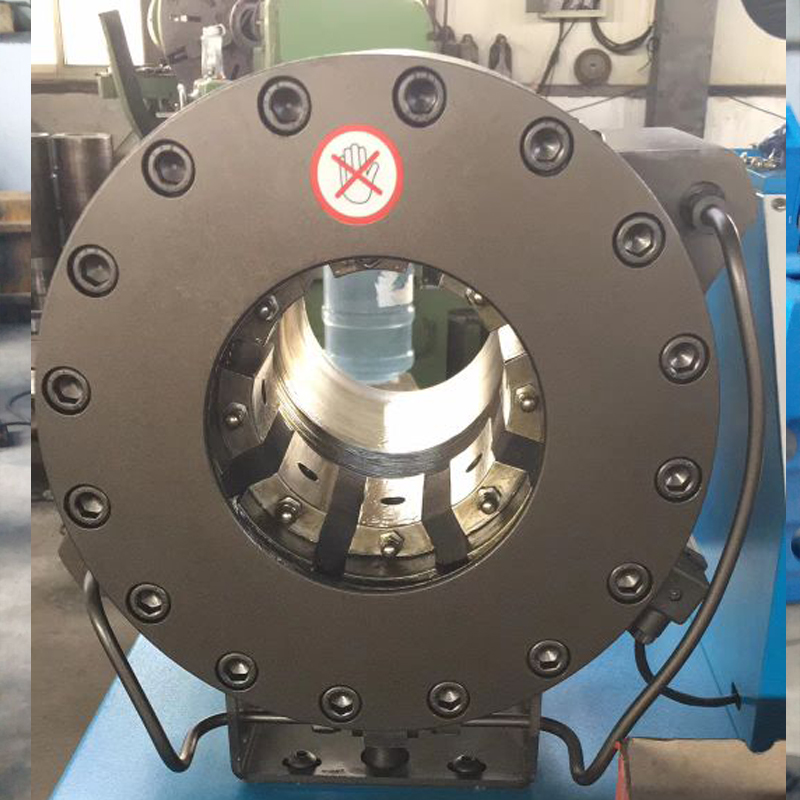

4) Collegamento della matrice
The crimping dies are neat and nice, more convenient for install because it is magnetism connection
Main Technical Feature
1.Efficient,powerful pump
2.Quick change tool
3. Die set rack
4. Dispositivo di controllo di precisione, dotato di lampada di segnalazione
5.Microcomputer control series
Thank for choosing SINOPULSE hydraulic machinery, the microcomputer control series hose crimping machine are our new products, which crimping accuracy is greatly-improved and consistency of re-crimping is strong. Considering the phenomenon that the hose crimping tool always use for crimping the non-standard bend, we enhance opening and passing ability.
The Optimized design of hydraulic system makes the equipment works more stable.
Our people will strain every nerve for you to create satisfactory products.
This hose crimping machine is widely used for making hose assembles for all kinds of construction machines, agriculture machines, and all kinds of industrial equipment. SNP32D hose crimper are the most hot sale model which can crimping the hose size range from 1/4" to 2"
