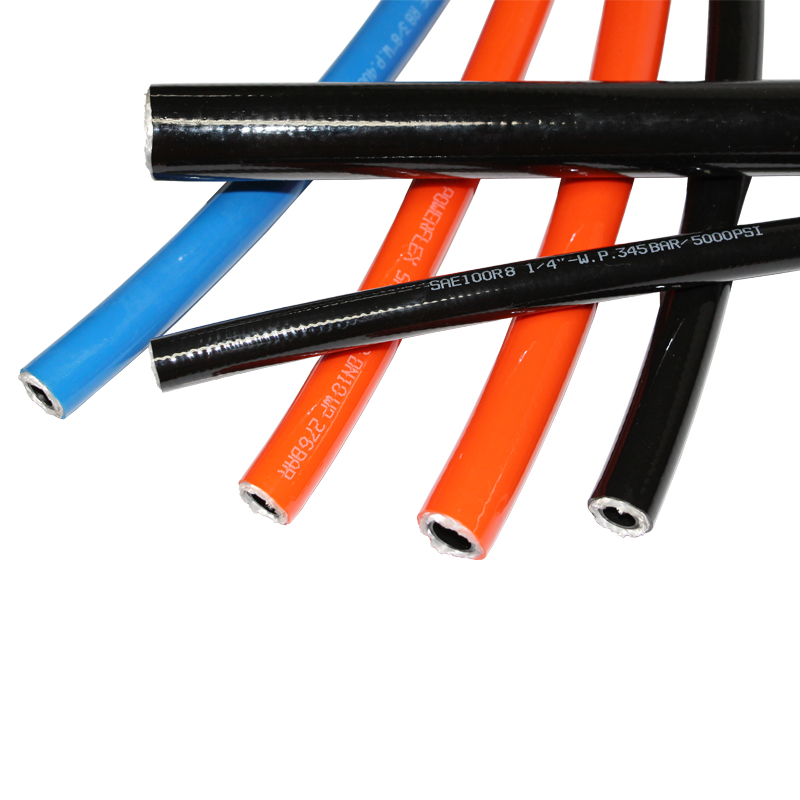

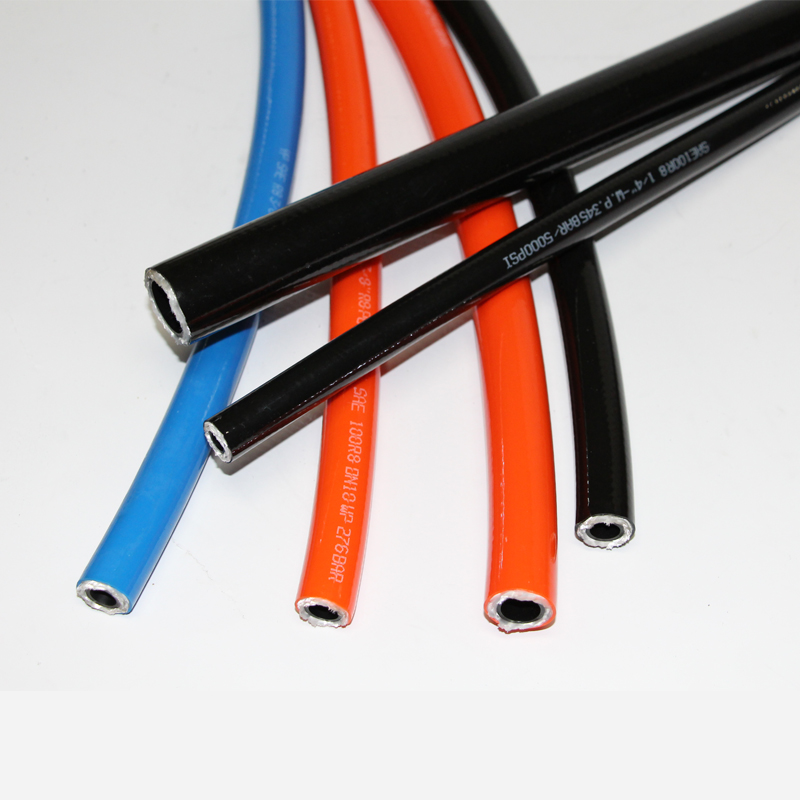

Introduction to SAE100 R8 Thermoplastic Hydraulic Hose
In the realm of high-pressure fluid conveyance, the choice of hydraulic hose is paramount to system integrity, operational efficiency, and safety. Among the advanced solutions, the r8 hose, specifically engineered to SAE 100R8 standards, stands out as a thermoplastic hydraulic hose designed for demanding applications. This specialized hose is characterized by its lightweight construction, exceptional flexibility, and robust performance under elevated pressures and varying environmental conditions. Its unique material composition offers distinct advantages over traditional rubber hoses, making it an increasingly preferred choice across diverse industrial sectors.
Industry Trends in High-Pressure Hydraulic Systems
The global industrial landscape is witnessing a persistent trend towards more compact, efficient, and higher-performing hydraulic systems. This evolution drives the demand for fluid conveyance solutions that can withstand increased operating pressures, offer extended service life, and contribute to overall system weight reduction. Additionally, environmental regulations and the push for energy efficiency necessitate hoses with lower volumetric expansion and enhanced chemical compatibility, especially with new generations of hydraulic fluids. The market for high-pressure hydraulic hose, valued at approximately USD 2.5 billion in 2022, is projected to grow at a CAGR of over 4% from 2023 to 2030, largely due to advancements in material science and manufacturing processes. r8 hose, with its thermoplastic construction, aligns perfectly with these trends, offering a solution that is both technically superior and environmentally conscious. Its electrical non-conductivity feature is also gaining traction in applications where electrical isolation is critical for safety and system integrity.
Detailed Manufacturing Process of SAE100 R8 Thermoplastic Hydraulic Hose
The production of a high-quality r8 hose involves a sophisticated multi-stage manufacturing process, meticulously designed to ensure superior performance and adherence to stringent industry standards like SAE J517 and ISO 3949. Each layer contributes to the hose's overall strength, flexibility, and resistance properties.
Process Flow Overview:
- Inner Tube Extrusion: High-performance thermoplastic elastomers (TPE) or polyester are precisely extruded to form the seamless, smooth inner tube. This material is chosen for its excellent chemical resistance, low permeation, and hydraulic fluid compatibility. The process demands tight dimensional control to ensure optimal flow characteristics and prevent leakage.
- Reinforcement Layer Application: The inner tube then proceeds to the braiding or spiraling station. Here, high-strength synthetic fibers, typically polyester or aramid, are wound or braided in multiple plies around the core. This critical step provides the hose with its exceptional pressure rating and structural integrity. The precise tension and angle of the reinforcement are vital for meeting burst pressure and impulse cycle requirements.
- Outer Cover Extrusion: A robust thermoplastic polyurethane (TPU) or polyamide (PA) outer cover is then extruded over the reinforced core. This exterior layer is formulated to offer superior abrasion, ozone, UV, and weather resistance, protecting the internal components from external damage and environmental degradation. Its durable nature contributes significantly to the hose's extended service life.
- Curing and Cooling: The assembled hose undergoes a controlled curing process (often involving heat for thermoplastic setting) to ensure all layers are properly bonded and the material properties are fully developed. This is followed by a controlled cooling process to stabilize the hose structure and dimensions.
- Testing and Quality Assurance: Every batch of r8 hose undergoes rigorous testing to validate its performance. This includes burst pressure testing, impulse testing (simulating pressure cycles), volumetric expansion tests, bend radius tests, adhesion tests, and electrical conductivity tests (for non-conductive hoses). Adherence to ISO 3949 and SAE J517 standards is meticulously checked.
Target industries benefiting from the exacting standards of this manufacturing process include petrochemical, metallurgy, construction, agriculture, material handling, and automotive. Advantages in typical application scenarios include significant energy saving due to lower volumetric expansion and superior corrosion resistance due to the advanced thermoplastic materials.
Figure 1: Cross-section illustrating the multi-layered construction of a typical hydraulic hose.
Technical Specifications and Performance Parameters
Understanding the technical specifications of r8 hose is crucial for proper system design and application matching. These hoses are engineered to meet specific performance criteria under various operational conditions.
SAE100 R8 Thermoplastic Hydraulic Hose Key Specifications:
| Parameter | Description / Value Range (Typical) |
|---|---|
| Standard Compliance | SAE J517 100R8, ISO 3949 |
| Inner Tube Material | Thermoplastic Polyester or Polyetherester |
| Reinforcement | Two braids of high-tensile synthetic fiber |
| Outer Cover Material | Thermoplastic Polyurethane (TPU) or Polyamide (PA) |
| Temperature Range | -40°C to +100°C (-40°F to +212°F) |
| Max. Working Pressure (WP) | 350 bar (5075 psi) to 500 bar (7250 psi), depending on size |
| Min. Burst Pressure (BP) | Typically 4x Working Pressure |
| Min. Bend Radius | Significantly smaller than rubber hoses (e.g., 50mm for 1/4" ID) |
| Electrical Properties | Non-conductive (with resistance typically > 1 MΩ/m) |
| Applications | High-pressure hydraulic lines, fluid power systems, industrial robotics, material handling |
These parameters underscore the robust engineering behind SAE 100R8 hoses, making them suitable for applications requiring high pressure, flexibility, and resistance to environmental factors.
Technical Advantages of r8 hose
- Lightweight and Compact Design: Compared to conventional rubber hoses with steel wire reinforcement, r8 hose offers a significantly lighter weight, often reducing system mass by up to 50%. This is critical in applications where weight reduction is a priority, such as aerial lift platforms, mobile equipment, and robotics, improving fuel efficiency and maneuverability.
- Superior Chemical Resistance: The thermoplastic inner tube and outer cover provide excellent resistance to a wide range of hydraulic fluids, including petroleum-based, water-glycol, and some synthetic esters. This broad compatibility extends the hose's lifespan and reduces the risk of material degradation in challenging chemical environments.
- Low Volumetric Expansion: Thermoplastic hoses exhibit minimal volumetric expansion under pressure. This characteristic ensures faster response times and improved system control, making them ideal for precision hydraulic applications where consistent and rapid actuation is required.
- Electrical Non-Conductivity: A key advantage of many r8 hose constructions is their inherent electrical non-conductivity. This feature provides an essential safety buffer in environments where operators may come into contact with energized equipment, such as utility vehicles and electrical maintenance platforms, conforming to standards like ANSI A92.2.
- Excellent Abrasion and Weather Resistance: The robust thermoplastic outer cover provides superior resistance to abrasion, ozone, and UV radiation, ensuring prolonged service life even in harsh outdoor conditions or demanding industrial settings. This durability minimizes maintenance requirements and replacement costs.
- Smaller Bend Radius: The flexible thermoplastic materials allow for significantly tighter bend radii compared to rubber hoses, facilitating easier routing in confined spaces and reducing the need for elaborate fitting configurations. This can simplify system design and installation.
Application Scenarios and Case Studies
The versatility and robust performance of r8 hose make it indispensable across a spectrum of industries and applications:
- Material Handling Equipment: Used in forklifts, stackers, and reach trucks for lift and steering mechanisms due to its flexibility and durability in repetitive motion cycles.
- Construction Equipment: For auxiliary hydraulic lines in compact excavators, skid steers, and mini loaders, where space is limited and high pressures are common.
- Aerial Work Platforms (AWPs): Essential for insulating bucket trucks and scissor lifts, ensuring operator safety with its non-conductive properties when working near power lines.
- Railway and Transportation: In braking systems, door mechanisms, and suspension systems where resistance to vibration and excellent long-term performance are crucial.
- Industrial Robotics: For robotic arms and automation lines requiring compact, flexible hoses that maintain performance through complex articulation.
Application Case Study 1: Enhanced Productivity in a Distribution Center
A large logistics and distribution center faced persistent issues with premature wear and kinking in the rubber hydraulic hoses on their fleet of electric forklifts, leading to frequent downtime and increased maintenance costs. After consulting with a hydraulic hose specialist, they transitioned to using SAE 100R8 thermoplastic hose for the lift and tilt cylinders. The smaller bend radius of the r8 hose allowed for cleaner routing, significantly reducing kinking. Its superior abrasion resistance minimized external damage from rubbing against chassis components. Within six months, the center reported a 30% reduction in hose-related failures and an overall 15% increase in operational uptime, directly attributable to the enhanced durability and flexibility of the new hoses. The lighter weight also slightly improved the forklifts' energy efficiency.
Application Case Study 2: Safety Enhancement in Petrochemical Operations
In a petrochemical processing plant, maintenance procedures often involved portable hydraulic tools in areas with potential electrical hazards. The plant's safety audit highlighted the risk posed by conductive hydraulic hoses. Implementing a non-conductive r8 hose solution for these portable tools was a critical upgrade. The inherent dielectric properties of the thermoplastic hose ensured a higher level of electrical insulation, drastically mitigating the risk of electrical shock to operators. This strategic shift not only met stringent internal safety protocols but also provided a robust solution capable of handling the corrosive environment, showcasing the dual benefits of thermoplastic hose technology in critical industrial applications.
Figure 2: Hydraulic hose assembly in a precision industrial application.
Vendor Comparison: Choosing the Right SAE 100R8 Supplier
Selecting the appropriate supplier for r8 hose is as critical as selecting the hose itself. Factors beyond just product specifications influence long-term reliability and cost-effectiveness. A strategic vendor comparison should consider several key dimensions:
| Criterion | High-Performing Vendor Attributes | Considerations for Evaluation |
|---|---|---|
| Product Quality & Compliance | ISO 9001 certified, SAE J517, ISO 3949 conformity, stringent internal QC. | Request certifications, test reports, and factory audit capabilities. |
| Technical Expertise & Support | Dedicated engineering team, application support, custom solution capabilities. | Evaluate responsiveness, depth of technical knowledge, and problem-solving track record. |
| Customization & Flexibility | Ability to customize lengths, colors, covers, fittings, and integrate private labeling. | Assess minimum order quantities (MOQ) for custom orders and lead times. |
| Logistics & Lead Times | Efficient supply chain, reliable lead times, global distribution network. | Request typical lead times for standard and custom orders; inquire about emergency fulfillment. |
| Pricing & Value Proposition | Competitive pricing balanced with quality, total cost of ownership (TCO) focus. | Compare not just unit price, but also freight, warranty, and potential for long-term savings. |
| Post-Sales Support & Warranty | Clear warranty terms, accessible customer service, troubleshooting assistance. | Review warranty duration and scope; test customer service responsiveness. |
Engaging with vendors who prioritize these aspects ensures not just a product purchase, but a partnership that enhances operational reliability and efficiency.
Customized Solutions and Engineering Support
Many industrial applications possess unique challenges that off-the-shelf solutions may not fully address. Leading suppliers of r8 hose offer comprehensive customized solutions to meet precise client requirements. This includes:
- Specific Lengths and Assemblies: Hoses cut to exact specifications and pre-assembled with a variety of end fittings (e.g., JIC, NPT, ORFS) to ensure perfect system integration and minimize on-site labor.
- Color-Coding and Branding: Custom outer cover colors for easy circuit identification or integration of private branding/logos for OEM applications.
- Specialized Covers: Options for enhanced flame retardancy, anti-static properties, or extreme temperature resistance tailored to hazardous or demanding environments.
- Material Optimization: Engineering consultation to select the optimal thermoplastic material for specific fluid compatibility or pressure/temperature profiles.
Beyond customization, expert engineering support plays a vital role. This includes collaborative design for new applications, material science consultation, failure analysis, and system optimization recommendations. Such support ensures that the chosen r8 hose solution not only meets immediate needs but also contributes to long-term operational excellence and system reliability.
Ensuring Trust and Authority ( Components)
For B2B decision-makers, trust and verifiable authority are paramount. Our commitment to expertise, experience, authoritativeness, and trustworthiness is demonstrated through:
- Certifications and Compliance: Products, including our r8 hose, are manufactured under strict ISO 9001:2015 quality management systems. Adherence to international standards such as SAE J517, ISO 3949, and relevant EN norms ensures consistent quality and performance. Our manufacturing facilities are regularly audited to maintain these certifications.
- Industry Partnerships and Client Testimonials: We partner with leading OEMs and industrial integrators globally, supplying critical hydraulic components. Our long-standing relationships with companies across petrochemical, heavy machinery, and automation sectors underscore our reliability. Customer feedback consistently highlights product durability and exceptional technical support.
- Years of Service and Expertise: With decades of specialized experience in hydraulic fluid conveyance, our engineering and product development teams possess deep domain knowledge. This expertise translates into innovative product solutions and unparalleled customer guidance.
- Rigorous Testing and Data Analysis: All products undergo extensive in-house and third-party testing, including impulse, burst, and flex-fatigue tests, often exceeding industry standards. Data from these tests are available to demonstrate product resilience and confirm specified performance parameters, building confidence in our offerings.
Figure 3: Quality assurance and testing procedures for hydraulic hoses.
Frequently Asked Questions (FAQ)
Q1: What is the primary difference between SAE 100R8 and SAE 100R7 hoses?
A1: Both R7 and R8 are thermoplastic hydraulic hoses. The key difference lies in their pressure ratings and reinforcement. SAE 100R7 specifies single or multiple plies of synthetic fiber reinforcement for medium-pressure applications, while SAE 100R8 is designed with two or more plies of high-tensile synthetic fiber for high-pressure applications, offering significantly higher working pressures.
Q2: Can r8 hose be used with biodegradable hydraulic fluids?
A2: Yes, typically. The thermoplastic materials used in SAE 100R8 hoses generally exhibit excellent compatibility with a wide range of hydraulic fluids, including petroleum-based, water-glycol, and many synthetic biodegradable oils. However, it is always recommended to consult the manufacturer's compatibility chart or perform specific material compatibility tests for critical applications with novel fluid types.
Q3: What are the main benefits of using thermoplastic r8 hose over traditional rubber hoses?
A3: Primary benefits include lighter weight, smaller bend radius, excellent chemical resistance, electrical non-conductivity (for most variants), superior abrasion and weather resistance, and low volumetric expansion, leading to better system response and energy efficiency. These attributes make them ideal for specialized and high-performance applications.
Q4: How does installation differ for r8 hose?
A4: While the general principles of hydraulic hose installation apply, thermoplastic hoses often require specific crimping tools and fittings designed for their material properties to ensure a secure, leak-free connection. Always follow the manufacturer's assembly instructions for proper installation and maximum service life.
Lead Time, Warranty, and Customer Support
- Lead Time and Fulfillment: We maintain a robust inventory of standard r8 hose products and components to ensure prompt delivery. Typical lead times for standard orders range from 3-7 business days, while customized solutions may require 2-4 weeks, depending on complexity and material availability. Expedited shipping options are available upon request to meet urgent project deadlines.
- Warranty Commitments: All our hydraulic hoses, including SAE 100R8 products, are backed by a comprehensive 12-month warranty against manufacturing defects from the date of purchase. This warranty covers material and workmanship under normal operating conditions. Full warranty terms and conditions are available upon request.
- Customer Support: Our dedicated customer support team and technical specialists are available to provide comprehensive pre-sales consultation, application assistance, installation guidance, and troubleshooting. We offer multi-channel support via phone, email, and live chat to ensure timely and effective resolution of inquiries, cementing our commitment to long-term client satisfaction.
References
- SAE International. "SAE J517: Hydraulic Hose." Warrendale, PA: SAE International, 2023.
- International Organization for Standardization. "ISO 3949: Plastic hoses and hose assemblies - Thermoplastics materials for hydraulic applications - Specification." Geneva, Switzerland: ISO, 2018.
- National Fluid Power Association (NFPA). "Fluid Power Industry Forecast." Milwaukee, WI: NFPA, 2023.
- Parker Hannifin Corporation. "Hose Products Division Technical Handbook." Cleveland, OH: Parker Hannifin, 2022.
