Measuring hydraulic hoses accurately is crucial for ensuring they fit properly and perform optimally in fluid systems. Whether you’re replacing an old hose, installing a new one in a machine, or simply looking for the right forklift hydraulic hose, the measurement process is key. This guide will help you understand how to measure hydraulic hose, including the proper way to measure the length, diameter, and pressure rating.
Measuring the Diameter of Hydraulic Hose
The first step in measuring hydraulic hose is determining its diameter. The inner diameter (ID) is particularly important, as it dictates the flow capacity and the type of hydraulic system it can support. Here's how to measure the diameter:

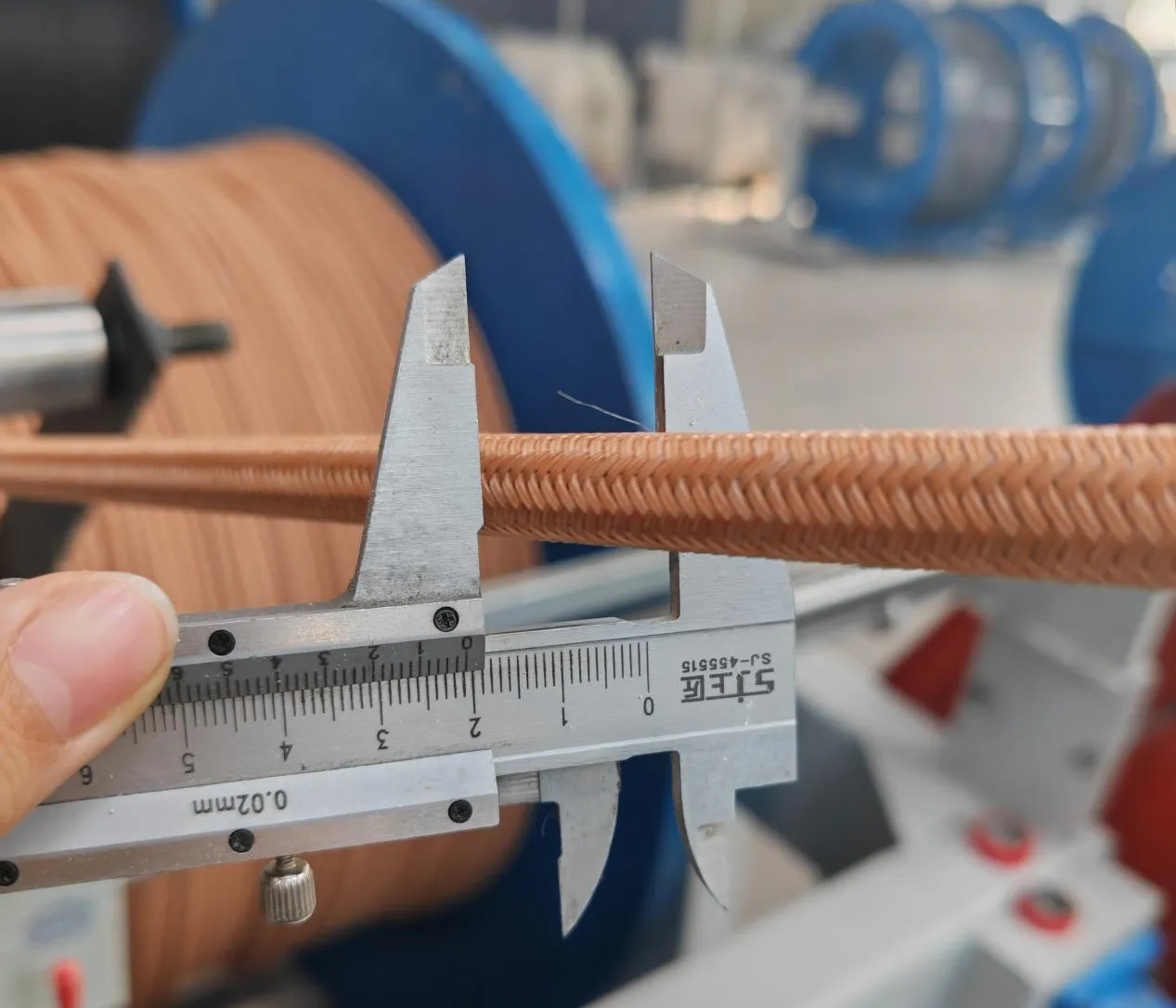

Inner Diameter (ID): Use a caliper to measure the internal opening of the hose. For example, if you are dealing with a 1/4 inch high pressure hose or 5/8 high pressure hose, ensure you measure the internal space where the fluid will flow. The correct ID ensures that the system operates with the right fluid flow and pressure.
Outer Diameter (OD): The outer diameter is also important for determining the hose's flexibility and strength. This is the measurement from the outer edges of the hose, including the reinforcement layers (e.g., for a 4 wire hydraulic hose).
Measuring the Length of Hydraulic Hose
Correct hose length is essential for proper installation and functionality. When measuring hydraulic hoses, keep in mind the following:
Straight Line Measurement: Measure the hose from end to end in a straight line. If you’re measuring a hydraulic return hose or any other hose for a hydraulic system, avoid stretching the hose during measurement. A hose that is too long or too short can cause unnecessary stress on the fittings or fail to reach necessary connections.
Account for Bends: Some applications, like a forklift hydraulic hose, require hoses to bend in tight spaces. Measure the length required for the hose to be installed without excessive kinks, as these can reduce the hose's lifespan and efficiency.
Consider Working Length: When you measure the hose, account for the working length, which means the length the hose will extend to during operation, especially if the system moves or shifts.
Choosing the Right Hose for Pressure and Application
The hydraulic hose service also involves ensuring the hose can handle the pressure it will be exposed to in a system. Measuring the pressure rating is critical to ensure safety and performance.
Pressure Rating: Make sure to choose the right hose for the pressure it will experience. For example, 4 wire spiral hydraulic hose are designed to withstand higher pressures, making them suitable for industrial applications. On the other hand, a fabric reinforced hydraulic hose might be used for lighter applications but still needs to meet the appropriate pressure rating.
Selecting the Right Hose for Specific Needs: Hoses like hydraulic return hose are used to return hydraulic fluid to the reservoir. Ensure you measure and select a hose that suits its specific application, whether for high-pressure systems or low-pressure return lines.
Measuring hydraulic hoses is a straightforward but critical process to ensure proper fit, functionality, and safety in your hydraulic system. By measuring the inner and outer diameters, accounting for the length, and understanding the pressure rating, you can choose the appropriate hose for your needs, whether it’s a forklift hydraulic hose, 5/8 high pressure hose, or any other custom hydraulic hose application. Proper measurements help maintain system efficiency, reduce downtime, and prolong the life of your hydraulic components.
