In the high-stakes world of hydraulic systems, selecting the right hose can mean the difference between seamless operation and costly breakdowns. Two prominent players in the tipi di tubo flessibile idraulico landscape are 4SP hose E 4SH hose, both engineered for heavy-duty applications but with distinct characteristics. As a leading produttore di tubi idraulici, SINOPULSE breaks down their differences to help you make informed decisions that align with your system’s demands.
1. Understanding 4SP Hose: The Workhorse for High-Pressure Needs
4SP hose belongs to the DIN EN856 standard family, where "4SP" denotes a hydraulic hose specification with four layers of spiral-wound steel wire reinforcement. This design grants it exceptional resistance to high-pressure surges, making it a staple in industrial and mobile equipment. Key features include:
- Pressure Rating: Typically rated for working pressures between 200 bar (2900 PSI) and 400 bar (5800 PSI), depending on the hose diameter.
- Construction: Four layers of steel wire spirals embedded in synthetic rubber, providing a balance of flexibility and robustness.
- Outer Cover: A abrasion-resistant rubber or thermoplastic layer that shields against mechanical stress and environmental hazards like moisture or UV rays.
Common applications include construction machinery (excavators, loaders), agricultural equipment, and medium-duty industrial hydraulics where consistent high pressure is required without extreme surges.

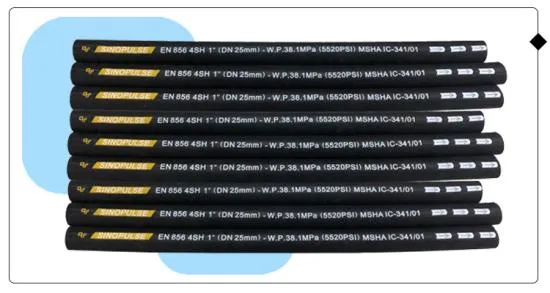

2. Introducing 4SH Hose: Conquering Ultra-High-Pressure Frontiers
4SH hose, also compliant with DIN EN856, takes pressure resistance to the next level. The "4SH" designation signifies four layers of steel wire reinforcement but with a tighter spiral pitch and heavier wire gauge, enabling it to handle more intense pressure fluctuations. Key attributes include:
- Pressure Rating: Working pressures ranging from 300 bar (4350 PSI) up to 600 bar (8700 PSI), making it suitable for extreme-duty applications.
- Structure: The four steel wire layers are wound under higher tension, creating a denser reinforcement that resists deformation under sustained ultra-high pressure.
- Material Excellence: Often paired with premium inner tube materials like FKM (fluororubber) for chemical resistance.
4SH hoses excel in industries like mining, oil and gas, and aerospace, where hydraulic systems face sudden pressure spikes or require conveying high-viscosity fluids under stringent conditions.
3. Key Differences: When to Choose 4SP vs 4SH Hose
a. Pressure Performance: The Defining Factor
The most critical distinction lies in their pressure capabilities:
- 4SP Hose: Ideal for consistent high-pressure environments without frequent extreme surges. It balances cost-effectiveness with reliability, making it a versatile choice for most industrial applications.
- 4SH Hose: Engineered for systems prone to unpredictable pressure peaks or requiring sustained ultra-high pressure (e.g., hydraulic presses, deep-sea drilling rigs). Its robust design minimizes the risk of burst failures in high-stakes scenarios.
b. Flexibility and Bend Radius
While both feature four-layer reinforcement:
- 4SP Hoseoffers moderate flexibility, with a minimum bend radius typically 10–12 times the hose diameter, suitable for machinery with standard articulation.
- 4SH Hose, due to its heavier wire gauge, has a slightly larger minimum bend radius (12–15 times diameter), requiring more careful routing in tight spaces but delivering unmatched stability under load.
c. Material and Construction Nuances
- Inner Tube: 4SP often uses NBR (nitrile rubber) for general oil compatibility, while 4SH may employ FKM to handle aggressive fluids.
- Outer Cover: Both have abrasion-resistant coatings, but 4SH may include additional layers or specialized compounds for enhanced durability in abrasive environments like mining sites.
d. Weight and Installation
- 4SP Hoseis lighter and easier to install, making it preferable for mobile equipment where weight reduction matters (e.g., agricultural machinery).
- 4SH Hose, while heavier, is non-negotiable for applications where failure is not an option, such as in nuclear or military hydraulics.
4. How to Choose the Right Hydraulic Hose for Your Application
a. Evaluate Pressure Requirements
- Start by measuring your system’s maximum operating pressure and surge potential. If pressures frequently exceed 400 bar, 4SH hoseprovides the necessary safety margin. For consistent 200–350 bar systems, 4SP hose offers a cost-efficient solution.
b. Consider Environmental Factors
- Temperature: High-heat environments (e.g., engine bays) may require 4SH’s premium inner tube materials, while 4SP suffices in moderate temps.
- Fluid Compatibility: Aggressive chemicals or synthetic oils demand FKM-lined 4SH, whereas mineral oils work well with NBR-lined 4SP.
c. Prioritize Industry Standards
Both hoses comply with DIN EN856, but ensure your hydraulic hose specifications align with additional certifications (e.g., SAE 100R12 for 4SP, or custom ratings for 4SH in aerospace).
Choosing between 4SP hose E 4SH hose hinges on understanding your system’s pressure demands, environmental challenges, and performance priorities. While 4SP serves as a reliable workhorse for most high-pressure applications, 4SH stands as the ultimate solution for ultra-high-pressure frontiers where safety and durability are non-negotiable.
As a produttore di tubi idraulici with decades of expertise, SINOPULSE offers both types engineered to exacting hydraulic hose specifications, ensuring each hose meets the rigorous demands of its intended use. Whether outfitting a construction fleet or a deep-sea exploration rig, the right choice today prevents downtime tomorrow.
Ready to optimize your hydraulic system? Explore our range of tipi di tubo flessibile idraulico and let our technical experts guide you to the perfect 4SP or 4SH solution. Precision in pressure management starts with choosing the hose that works as hard as your machinery.
