Field Notes on the Workhorse: [Sae100 R4]

I’ve specced more suction/return lines than I care to admit, and—honestly—this category is where uptime is won or lost. The Sae100 R4 wire-inserted hydraulic suction hose is a quiet hero: low pressure, high reliability, very grumpy if you cheat on bend radius. Let’s walk through what matters, from standards to shop-floor reality.

What’s trending in suction/return hoses

Two big shifts: (1) fleets are standardizing on MSHA-accepted covers for cross-site compliance, and (2) more OEMs are asking for tighter vacuum performance (≈ −0.9 bar) and cleaner tubes for modern hydraulic oils (incl. bio-based fluids). It seems that R4 isn’t “just suction” anymore—it’s now a contamination and compliance story too.

Technical snapshot and specs

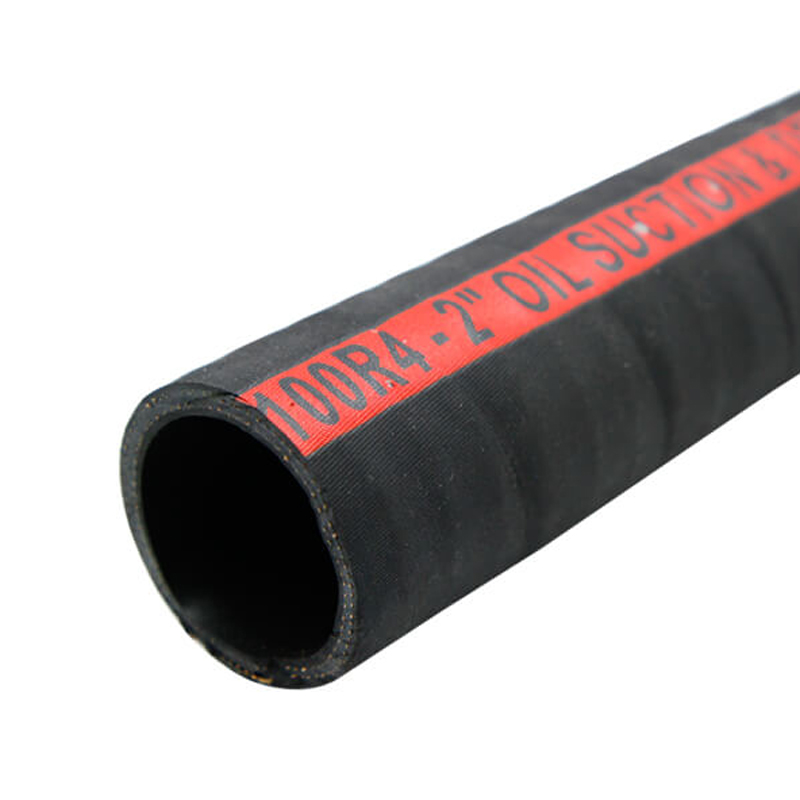

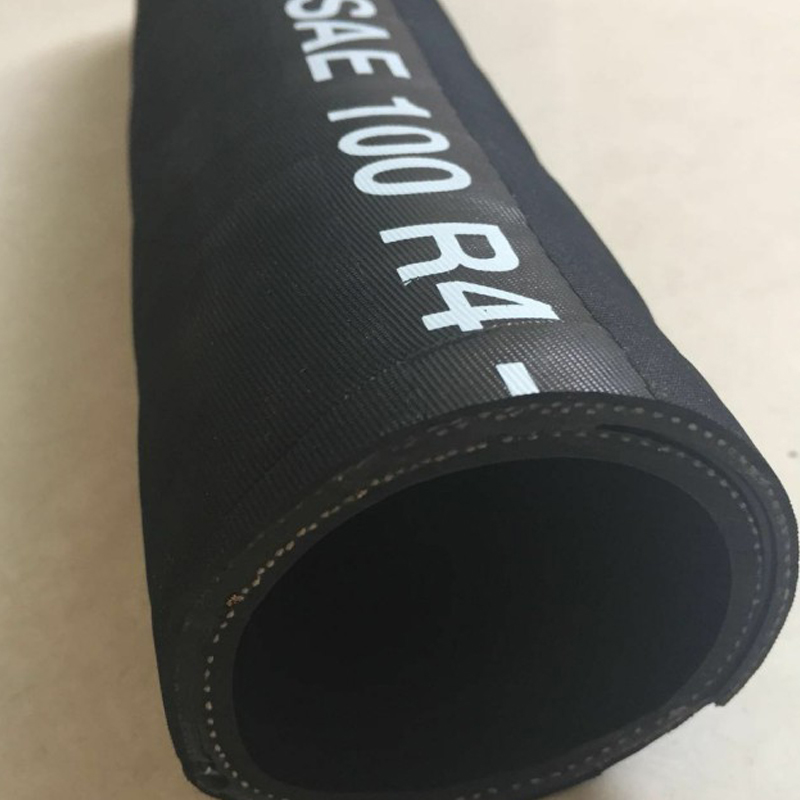

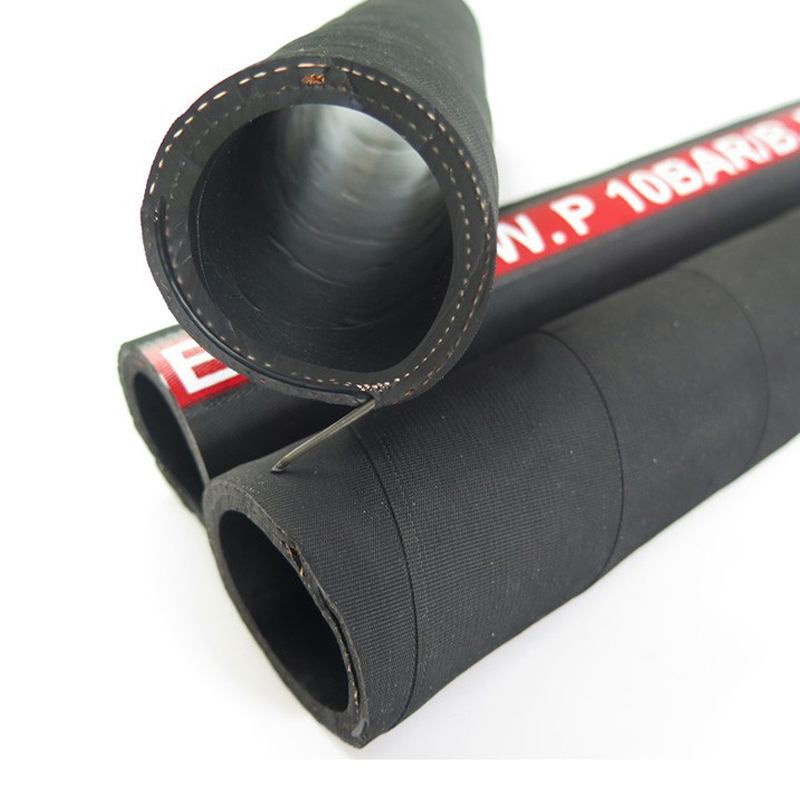

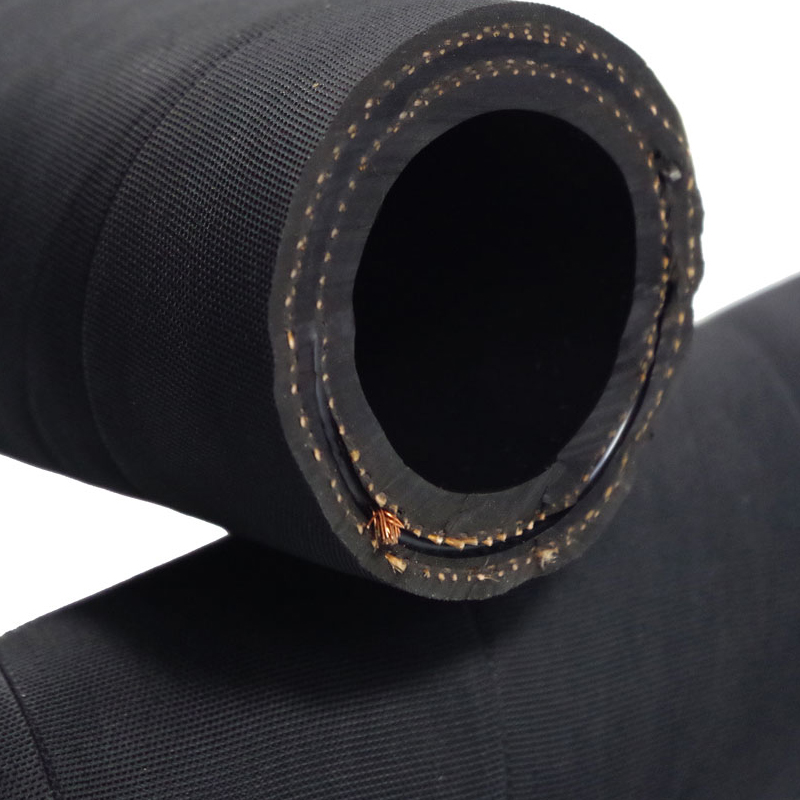

Structure (short version): oil-resistant synthetic rubber tube, textile reinforcement with a body steel wire helix, and a black, abrasion/weather-resistant MSHA-accepted cover. Temperature rating: −40°C to +100°C. That’s the brochure. In real plant conditions, the helix prevents collapse under high vacuum, while the textile piles handle flex and vibration.

Parameter	Typical for Sae100 R4	Notes
Inner tube	Oil-resistant synthetic rubber (NBR-based)	Optimized for mineral & many bio-oils; check compatibility
Reinforcement	Textile braid/plies + steel wire helix	Helix prevents vacuum collapse
Cover	Black, abrasion & weather resistant; MSHA accepted	Surface ozone resistance per ISO 7326 ≈ good
Temp range	−40°C to +100°C	Short excursions above may reduce life
Vacuum rating	Up to ≈ −0.9 bar (at 23°C)	Real-world use may vary with size/temperature
Proof/Burst	Proof ≈ 2× WP; Burst ≥ 4× WP	Per SAE J517 requirements for R4

Manufacturing flow and testing

Materials are blended, tube is extruded, textile reinforcement laid, steel helix inserted, then the cover is extruded. After vulcanization, hoses are cooled, cut, cleaned, and ink-jetted. Tests include hydrostatic proof (ISO 1402), vacuum collapse, dimensional checks, adhesion, and cover abrasion. For mines, the MSHA flame test is the box to tick. Service life? I tell buyers: ≈ 3–5 years in mixed duty, longer if you protect from kinks, heat, and oil incompatibility.

Where it actually works

Return and suction lines on excavators, crushers, harvesters, presses
Low-pressure return on hydraulic power units and marine steering circuits
Fuel/oil transfer (verify media compatibility), coolant return on large gensets

Many customers say the Sae100 R4 behaves best when fittings are properly skived and clamped—no shortcuts. Minimum bend radius is not a suggestion.

Vendor comparison (quick take)

Vendor	Origin	MSHA Cover	Lead Time	Customization	3rd-Party Test
Hydraulic Hose Plus	Handan, Hebei, China	Yes (accepted)	≈ 2–4 weeks	Sizes, branding, cut-to-length	Available on request
EU Vendor A	EU	Yes	≈ 3–6 weeks	Broad; higher MOQ	Standard
US Vendor B	USA	Yes	≈ 1–3 weeks	Fast prototypes	Standard

Customization and certifications

Options include ID from around 3/4" to 4", cover branding, color striping, antistatic compounds, and pre-cut/cleaned kits. Certifications often requested: MSHA acceptance, RoHS/REACH declarations, and conformity to SAE J517 (Type R4). Ask for a vacuum test report and a proof-pressure chart at your ordered sizes—simple, but surprisingly often overlooked.

Mini case notes

Quarry plant retrofitted return lines with Sae100 R4; drop in cavitation alarms fell by ≈ 30% after replacing kinked runs and re-routing to meet bend radius.
A marine yard standardized on MSHA-accepted cover R4; inspector signoffs sped up, and hose abrasion complaints tapered off within two maintenance cycles.

Bottom line

If your suction line collapses, the whole system sulks. Spec the helix, respect the bend radius, and confirm the vacuum rating at your operating temperature. The Sae100 R4 is built for that discipline.

Citations

SAE J517: Hydraulic Hose and Hose Assemblies—Requirements and Specifications (Type R4).
ISO 1402: Rubber and plastics hoses—Hydrostatic testing.
ISO 7326: Rubber and plastics hoses—Assessment of ozone resistance.
MSHA, Acceptance Marking for Flame-Resistant Hose Covers and Hose Assemblies.
