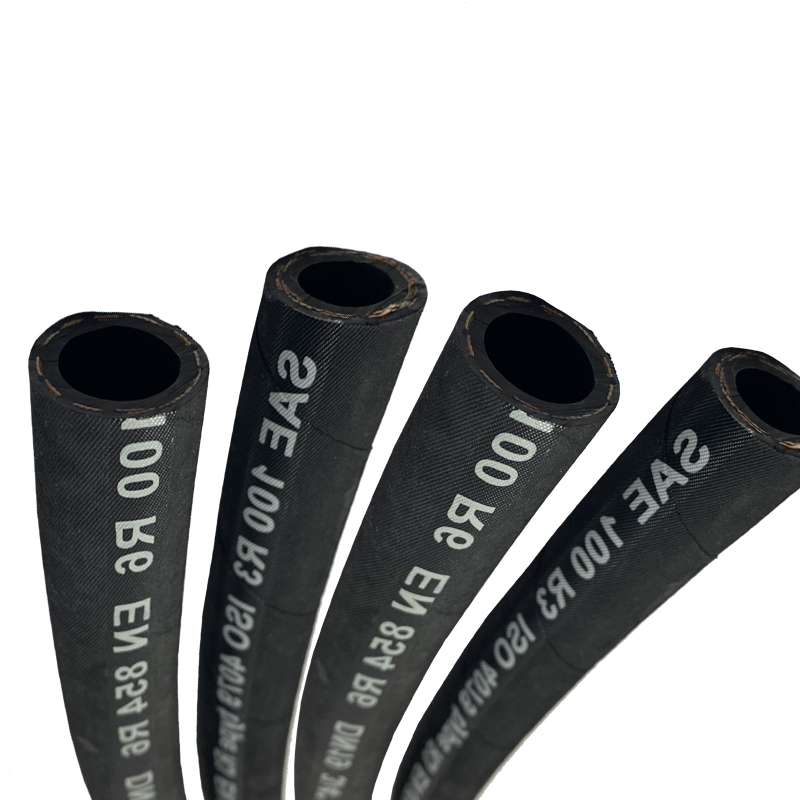

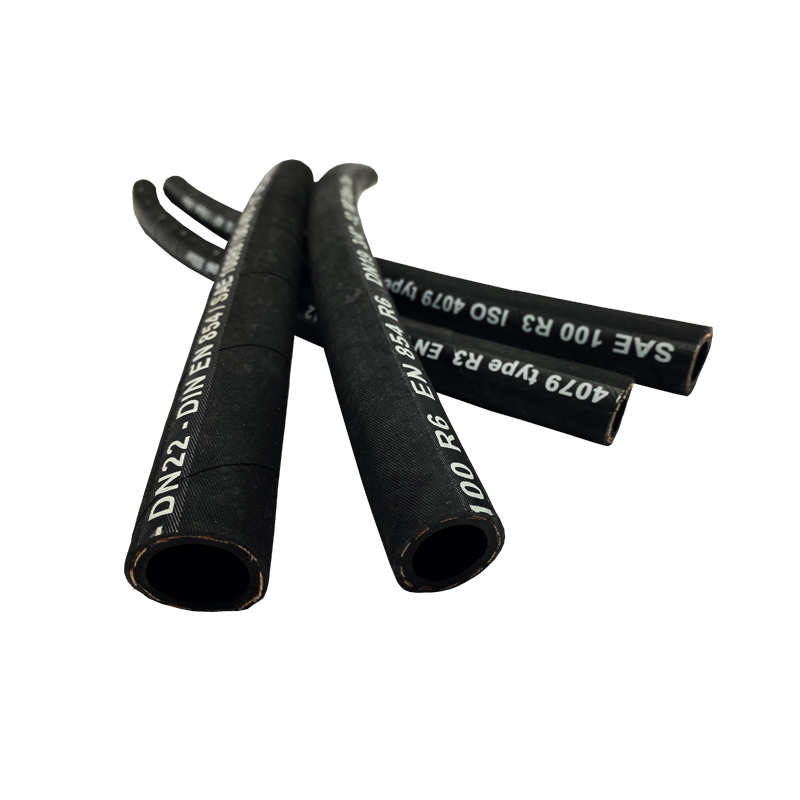

SAE 100 R6 Hose: Low-Pressure, Flexible Oil & Fuel Lines

Understanding SAE 100 R6 Hose: A B2B Perspective on Low-Pressure Hydraulic Solutions

In the intricate landscape of industrial fluid transfer, selecting the appropriate hydraulic hose is paramount for operational efficiency, safety, and longevity. This comprehensive guide delves into the specifics of the SAE 100 R6 hose, a critical component in low-pressure hydraulic systems. Engineered for versatility and reliability, the SAE 100 R6 hose is a single fiber braided hydraulic hose designed to meet stringent industry demands, offering a balanced combination of flexibility, durability, and cost-effectiveness for a wide range of applications.

This piece explores its manufacturing excellence, technical specifications, diverse application scenarios, and the competitive advantages it offers, aiming to provide B2B decision-makers and technical engineers with authoritative insights for optimal system design and procurement.

Industry Trends and the Role of Low-Pressure Hoses

Current industry trends in hydraulic systems are driven by the need for increased efficiency, reduced downtime, and enhanced environmental sustainability. This translates into demands for lighter, more flexible, and more durable components. While high-pressure systems often grab attention, the integral role of low-pressure hoses, such as the SAE 100 R6 hose, cannot be overstated. They are essential for return lines, suction lines, and general industrial fluid transfer where moderate pressures are sufficient, contributing significantly to overall system performance and cost optimization.

The market is seeing a push towards materials offering better resistance to various fluids, higher temperature ratings, and longer service life. Furthermore, ease of installation and maintenance is becoming a key differentiator, where the flexibility of hoses like the SAE 100 R6 hose provides a distinct advantage. As machinery becomes more compact and complex, the ability to route hoses in confined spaces without compromising integrity is paramount.

Manufacturing Process of SAE 100 R6 Hose

The production of a SAE 100 R6 hose involves a sophisticated, multi-stage manufacturing process to ensure compliance with international standards and deliver consistent performance. Emphasizing precision and material quality, the process is designed for optimal durability and operational reliability.

Key Process Steps:

1. Material Selection and Preparation: The process begins with the careful selection of high-quality synthetic rubber compounds for the inner tube and outer cover. For the inner tube, oil-resistant synthetic rubber is chosen to ensure compatibility with a wide range of hydraulic fluids, including petroleum-based and water-glycol fluids. The outer cover typically consists of an abrasion- and weather-resistant synthetic rubber, offering protection against environmental factors and physical wear. The reinforcement layer utilizes high-tensile strength textile fiber.
2. Inner Tube Extrusion: The chosen synthetic rubber compound for the inner tube is fed into an extruder. Under precise temperature and pressure control, the material is melted and forced through a die to form a seamless, uniformly thick tube. This stage is critical for ensuring the hose's fluid compatibility and preventing leakage.
3. Textile Braiding (Reinforcement): Following extrusion, the inner tube is transferred to a braiding machine. Here, a single layer of high-strength textile yarn is precisely braided around the inner tube. This braiding process is crucial for providing the hose with its specified pressure resistance and structural integrity. The angle and tension of the braid are meticulously controlled to meet SAE J517 100R6 specifications.
4. Outer Cover Extrusion: After the reinforcement layer is applied, another layer of synthetic rubber compound is extruded over the braided assembly. This outer cover protects the reinforcement from abrasion, ozone, weathering, and oil, significantly extending the hose's service life, especially in harsh industrial environments.
5. Vulcanization (Curing): The assembled hose then undergoes a vulcanization process, typically in an autoclave. This thermal process chemically cross-links the rubber polymers, transforming the material from a plastic state into a durable, elastic rubber with enhanced mechanical properties, heat resistance, and chemical stability. Precise temperature and duration are vital here.
6. Finishing and Testing: Post-vulcanization, the hose is cut to specified lengths, and any final finishing, such as marking with relevant specifications and branding, is applied. Rigorous testing is then performed. This includes pressure testing (proof pressure, burst pressure) to ensure it can withstand its rated working pressure, flexibility tests, and dimensional checks. Compliance with standards such as ISO 1436:2014 Type R6 and SAE J517 100R6 is verified during this stage.

Target industries for the SAE 100 R6 hose include petrochemical, metallurgy, water supply & drainage, agricultural machinery, and general industrial sectors. In typical application scenarios, its advantages like flexibility and corrosion resistance (due to the robust outer cover) contribute to reduced maintenance and extended equipment lifespan.

Technical Specifications and Parameters

The SAE 100 R6 hose is designed for low-pressure applications, characterized by its construction and performance metrics. Its structure typically comprises three main layers:

• Inner Tube: Made from oil-resistant synthetic rubber, ensuring minimal fluid contamination and excellent chemical compatibility.
• Reinforcement: A single braid of suitable textile fiber, providing the necessary strength for low to moderate pressure handling while maintaining superior flexibility.
• Outer Cover: Abrasion, ozone, and weather-resistant synthetic rubber, protecting the internal components from environmental degradation and physical damage.

These structural elements contribute to its distinct performance profile. Below is a detailed specification table summarizing typical parameters for the SAE 100 R6 hose:

SAE 100 R6 Hose Specification Table

Comparison: SAE 100 R6 vs. SAE 100 R3 Hose

While both the SAE 100 R6 hose and the 100R3 hose (also known as sae 100r3 hose or simply sae 100r3) are designed for low to medium pressure applications, there are distinct differences in their construction and pressure ratings that make them suitable for different scenarios. Understanding these differences is crucial for optimal system design.

Key Distinctions:

• Reinforcement: The primary difference lies in the reinforcement layers. The SAE 100 R6 hose features a single textile braid reinforcement, whereas the SAE 100 R3 hose typically has two textile braids. This double braiding provides greater structural integrity and higher pressure resistance for R3.
• Working Pressure: Due to the difference in reinforcement, SAE 100 R3 hoses generally have higher working pressure ratings compared to SAE 100 R6. An R3 hose might handle working pressures up to 3000 PSI for smaller sizes, significantly higher than R6's typical 500 PSI maximum.
• Flexibility: The single braid of the SAE 100 R6 hose makes it more flexible and lighter than its R3 counterpart, which is advantageous for installations requiring tight bends or where weight is a concern.
• Cost: Generally, R6 hoses are more cost-effective than R3 hoses due to simpler construction with less reinforcement material.

SAE 100 R6 vs. SAE 100 R3 Comparison Table

Application Scenarios and Technical Advantages

The versatility and specific design parameters of the SAE 100 R6 hose make it ideal for a multitude of low-pressure fluid transfer tasks across various industries. Its core technical advantages translate directly into operational benefits for businesses.

Typical Application Scenarios:

• Hydraulic Return Lines: This is a primary application. After performing work, hydraulic fluid returns to the reservoir at low pressure. The SAE 100 R6 hose offers the necessary flow capacity and flexibility for these critical return paths.
• Suction Lines: Where pumps draw fluid from a reservoir, R6 hoses can be used, provided vacuum ratings are appropriate for the specific application. Their robust construction resists collapse under suction.
• Automotive and Agricultural Machinery: For non-critical hydraulic lines, power steering return lines, and lubrication systems where flexibility and oil resistance are key. The sae 100 r6 fuel hose variant is also utilized in fuel transfer systems for light-duty applications.
• Industrial Equipment: General industrial fluid transfer, pneumatic systems, and process control applications that do not require high pressure. This includes systems in manufacturing, processing plants, and material handling.
• Construction Equipment: While heavy-duty lines require higher pressure ratings, R6 hoses are suitable for ancillary systems, cooling lines, and drain lines in construction machinery.

Technical Advantages:

• Superior Flexibility: The single textile braid reinforcement grants the SAE 100 R6 hose exceptional flexibility. This simplifies routing in confined spaces, reduces installation time and effort, and minimizes the risk of kinking, which can obstruct fluid flow.
• Cost-Effectiveness: For applications demanding low-pressure capability, R6 hoses offer a highly economical solution without compromising reliability. This allows businesses to optimize material costs without sacrificing performance where high-pressure alternatives are over-specified.
• Lightweight Design: Compared to multi-braid or wire-reinforced hoses, the SAE 100 R6 hose is significantly lighter, contributing to overall weight reduction in mobile equipment and easier handling during assembly and maintenance.
• Broad Fluid Compatibility: Designed with an oil-resistant synthetic rubber inner tube, it accommodates a wide array of hydraulic fluids, including petroleum-based oils, air, and water-glycol mixtures, making it a versatile choice.
• Excellent Weather and Abrasion Resistance: The robust synthetic rubber outer cover provides reliable protection against environmental elements like ozone, UV radiation, and general abrasion, ensuring extended service life in demanding outdoor or industrial settings.
• Compliance with Standards: Adherence to SAE J517 100R6 and ISO 1436-1 Type R6 ensures global interchangeability and guaranteed performance benchmarks, offering peace of mind to engineers and procurement teams.
• Energy Saving Potential: In systems where precise routing and minimal pressure drops are critical, the smooth bore and flexibility of the SAE 100 R6 hose can contribute to more efficient fluid flow, potentially leading to marginal energy savings in the overall hydraulic circuit.

Vendor Comparison and Customized Solutions

Choosing the right supplier for SAE 100 R6 hose products is a critical decision for B2B entities. A reputable vendor should not only offer high-quality products but also provide robust technical support, customization capabilities, and reliable logistics. Key factors for vendor comparison include:

• Certifications: Verify that the vendor's products comply with international standards like ISO 9001 for quality management and that their hoses meet SAE J517 100R6 and ISO 1436-1 Type R6.
• Product Range and Stock: Assess the breadth of their SAE 100 R6 hose offerings in terms of size, temperature ratings, and available lengths. Adequate stock levels ensure quick fulfillment.
• Technical Support: A vendor with expert engineering teams can assist with complex application queries, material compatibility, and system design challenges.
• Customization Capabilities: For specialized applications, the ability to provide customized solutions is invaluable. This might include:
  • Specific Lengths: Hoses cut to precise required lengths, reducing waste and installation time.
  • End Fittings: Pre-crimped or custom-assembled hose assemblies with various end fittings (e.g., NPT, JIC, BSP, ORFS) to ensure seamless integration into existing systems.
  • Material Variations: While the core R6 specification is fixed, minor adjustments to the outer cover material for enhanced flame resistance, specific chemical resistance, or extreme abrasion resistance can be offered by advanced manufacturers.
  • Private Labeling/Branding: For OEMs, custom branding on the hose surface.
• Reputation and Experience: Look for vendors with a proven track record, positive customer feedback, and significant years of service in the hydraulic hose industry. Partner clients and case studies can offer further validation.

Application Case Studies

Real-world applications demonstrate the tangible benefits of integrating the SAE 100 R6 hose into various systems. These examples highlight its performance and adaptability:

Case Study 1: Agricultural Equipment Manufacturer Streamlines Hydraulic Systems

A leading manufacturer of agricultural sprayers faced challenges with rigid hydraulic lines for their low-pressure return circuits. Traditional solutions were difficult to route through the complex chassis and often experienced fatigue failures due to vibration. By switching to a customized SAE 100 R6 hose assembly, pre-cut to specific lengths and fitted with JIC swivel fittings, they achieved:

• 20% Reduction in Assembly Time: The superior flexibility and pre-assembled nature of the R6 hoses drastically sped up installation.
• 30% Decrease in Warranty Claims: Improved vibration dampening and resistance to fatigue led to fewer hose failures in the field.
• Enhanced Design Flexibility: Engineers could optimize layouts more easily, improving overall equipment aesthetics and serviceability.

Customer Feedback: "The flexibility of the R6 hose was a game-changer for our assembly line. It significantly reduced labor costs and improved the reliability of our products in the field."

Case Study 2: Industrial Robotics Integrator Improves Fluid Transfer Efficiency

An industrial robotics company specializing in automated welding cells required a lightweight and flexible hose for transferring cooling fluid to the welding gun. Space constraints and the constant motion of the robotic arm made traditional hoses unsuitable. They implemented a custom-length SAE 100 R6 hose solution as a critical component in their cooling loop.

• Minimized Drag and Weight: The lightweight nature of the R6 hose reduced strain on robotic actuators, contributing to smoother and faster movements.
• Extended Service Life in Dynamic Applications: The R6's flexibility allowed it to withstand continuous flexing and bending within the robot's operating envelope without premature wear.
• Optimal Fluid Flow: The smooth inner bore ensured consistent coolant delivery, preventing overheating of critical components.

Customer Feedback: "The reliability of the SAE 100 R6 hose in continuous motion is impressive. It has allowed us to achieve better performance and uptime for our robotic systems."

FAQ Module

Frequently Asked Questions about SAE 100 R6 Hose

• Q: What is the primary application of a SAE 100 R6 hose?

  A: The SAE 100 R6 hose is predominantly used for low-pressure hydraulic return lines, suction lines, and general industrial fluid transfer where flexibility and lighter weight are prioritized over high-pressure capability.

• Q: Can the SAE 100 R6 hose be used for fuel transfer?

  A: Yes, certain variants are specifically designed and rated as a sae 100 r6 fuel hose for low-pressure fuel transfer in automotive and industrial applications. Always verify fluid compatibility with the manufacturer's specifications.

• Q: What distinguishes R6 from SAE 100 R3 hose?

  A: The key difference is the reinforcement. R6 has a single textile braid, offering greater flexibility and lower pressure ratings, while R3 has two textile braids, providing higher pressure resistance at the expense of some flexibility.

• Q: What is the typical service life of an SAE 100 R6 hose?

  A: Service life varies significantly based on application, operating conditions (temperature, pressure cycles, fluid type), and maintenance. With proper installation and within specified parameters, a well-manufactured R6 hose can last for several years. Regular inspection for wear and tear is recommended.

• Q: What temperature range can the SAE 100 R6 hose withstand?

  A: Typically, the operating temperature range for R6 hose is from -40°C to +100°C (-40°F to +212°F). It's crucial not to exceed these limits to prevent material degradation.

Lead Time, Warranty, and Customer Support

For B2B clients, timely delivery and reliable post-purchase support are as crucial as product quality. We are committed to providing exceptional service:

• Lead Time/Fulfillment: Standard orders for bulk SAE 100 R6 hose or common assemblies typically ship within 3-5 business days from order confirmation. Custom solutions or large-volume orders may require 10-15 business days, with specific timelines provided at the time of quotation. We maintain a robust inventory to support just-in-time delivery for our key partners.
• Warranty Commitments: All our SAE 100 R6 hose products and assemblies come with a comprehensive 12-month warranty against manufacturing defects from the date of purchase. This warranty covers material and workmanship under normal operating conditions and specified parameters. Full warranty terms and conditions are available upon request.
• Customer Support: Our dedicated B2B customer support team is available during business hours to assist with technical inquiries, order tracking, and after-sales service. We offer multi-channel support including phone, email, and a dedicated online portal for registered clients. Our engineers and product specialists are ready to provide expert guidance to ensure optimal product selection and performance in your applications.

Conclusion

The SAE 100 R6 hose stands as a testament to efficient, reliable, and cost-effective fluid transfer solutions for low-pressure hydraulic and industrial applications. Its distinct advantages in flexibility, lightweight design, and robust resistance to environmental factors make it an indispensable component across various sectors. By understanding its detailed specifications, manufacturing process, and comparison with alternatives like the sae 100r3 hose, businesses can make informed decisions that enhance operational efficiency and system longevity. Partnering with a knowledgeable vendor who provides quality products, customized solutions, and steadfast support ensures that your hydraulic systems perform optimally, driving productivity and reducing total cost of ownership.

References

1. SAE International. SAE J517: Hydraulic Hose. Warrendale, PA: SAE International, 2017.
2. International Organization for Standardization. ISO 1436-1: Rubber hoses and hose assemblies — Wire-braid reinforced hydraulic types — Specification. Geneva, Switzerland: ISO, 2014.
3. Parker Hannifin Corporation. Hydraulic Hose, Fittings, & Equipment. Cleveland, OH: Parker Hannifin Corp., 2023.
4. Eaton Corporation. Hydraulic Hose, Fittings, & Assemblies Catalog. Dublin, Ireland: Eaton Corporation, 2022.
5. Gates Corporation. Industrial & Hydraulic Hose Catalog. Denver, CO: Gates Corporation, 2023.
