Concrete Pump Hose 800psi: Field Notes, Specs, and What Really Matters On-Site

If you’re evaluating a concrete pump hose, here’s the straight talk. I’ve watched crews lose hours over a bad hose choice, and—surprisingly—most issues come down to mismatch between pressure ratings, liner quality, and abrasion control. This model from Handan, Hebei, has been getting traction lately, and for good reason.

What’s trending in pump lines

Two clear shifts: contractors asking for tougher tube compounds (NR/BR blends) and steadier QC tied to ISO/EN standards. Also, more short-length “end hoses” for finishing work. Honestly, the market is tidying up—buyers now ask for test sheets, not just a price.

Core construction and specs

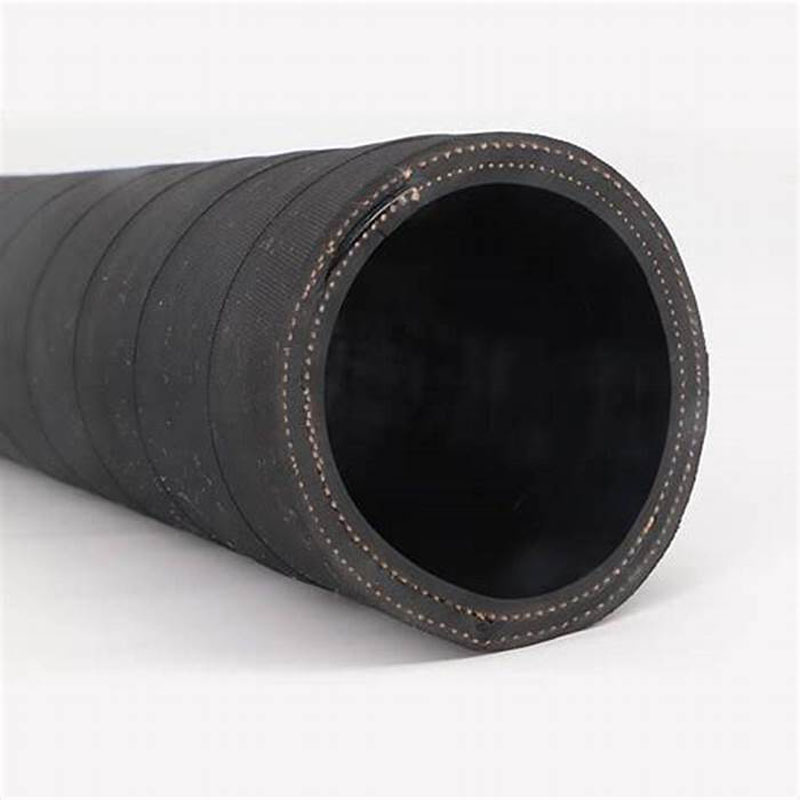

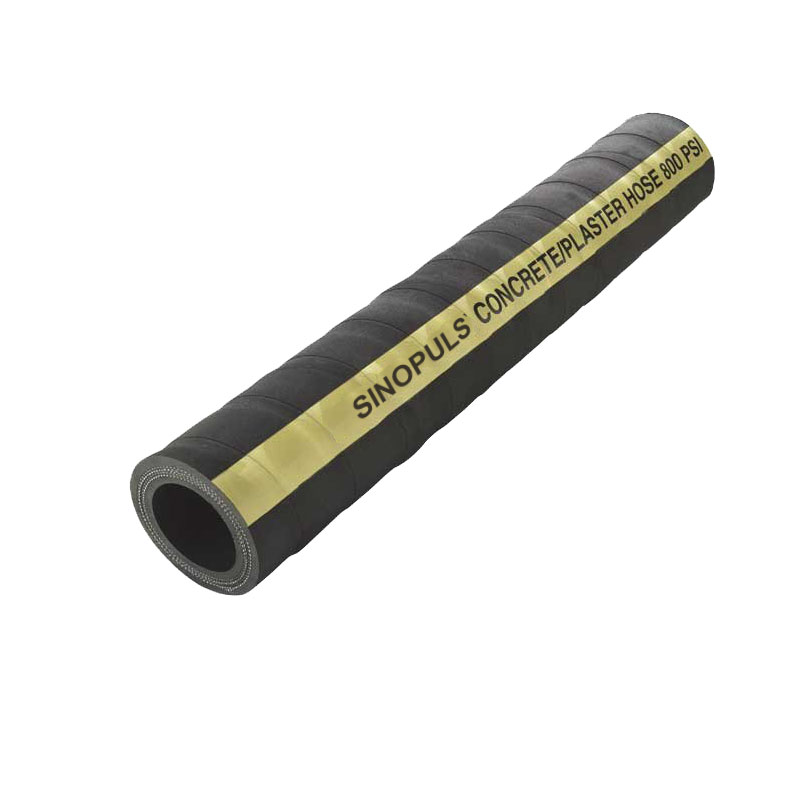

The concrete pump hose here uses a wear-resistant NR & BR tube (black), 1–2 ply high-tensile polyester reinforcement, and an NR & SBR wrapped cover. Temperature window is -20℃ (-4℉) to 80℃ (176℉). Working pressure ranges by size and ply: 10 bar or 20 bar; burst 30 bar or 60 bar (3:1 safety). The “800psi” label is a series name; higher working ratings can be customized by ID and ply—ask, because real-world use may vary.

Process, testing, and service life

Materials are calendared NR/BR for the tube and NR/SBR for the cover; reinforcement is braided polyester. The hose is built on a mandrel, wrapped, then vulcanized. QC usually follows ISO 28017 hydrostatic checks, ASTM D380 hydro tests, and abrasion checks per ISO 4649. A reasonable field life is 6–18 months depending on mix design (sharp aggregate eats tubes faster), bend radius discipline, and cleanout habits.

Sample QC snapshot (internal, typical): hydrostatic test to 2× WP with no seepage; abrasion loss ≈80 mm³; adhesion peel ≈6 N/mm. Take those as indicative, not a promise—I guess it depends on batch and handling.

Where crews are using it

• High-rise and mid-rise line pumping
• Shotcrete in tunnels and slope stabilization
• Precast yards, block plants, and ready-mix yards
• End hose at the boom for slab finishing and columns

Many customers say the concrete pump hose feels lighter than wire-reinforced options at similar IDs, which helps at the nozzle.

Vendor comparison (quick, imperfect, but helpful)

Customization and fittings

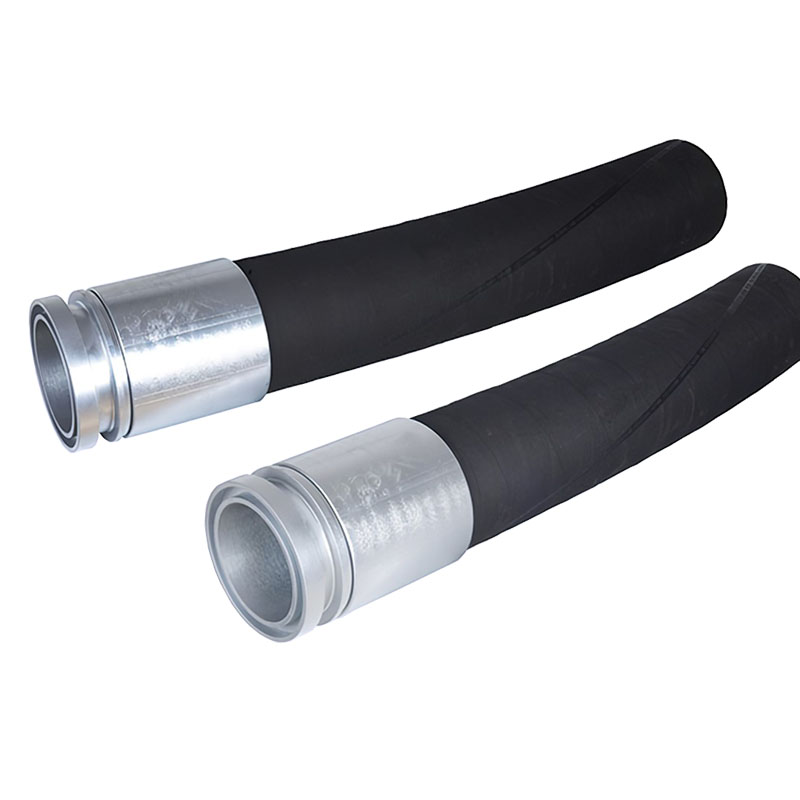

Common IDs: 2″–6″; lengths: 3–6 m standard. Ends: Victaulic, camlock, or plain for crimping. Ply count: 1 or 2. If you truly need an 800 psi working rating, request a reinforced variant and confirm test data. That’s the safe way, to be honest.

Mini case study

Residential mid-rise, 18 floors, Southeast Asia. Two 4 m end hoses on a boom, plus a 3 m line for columns. Mix had 20 mm aggregate; line pressures observed around 16–18 bar. Crews reported smoother handling at the nozzle and changed out the concrete pump hose after roughly 9 months—mostly due to bend wear near the tip (as usual).

Origin and contact

Manufactured in South Of Xingfu Road, Feixiang Industrial Zone, Handan City, Hebei, China. If you’re vetting suppliers, ask for hydro test reports, abrasion numbers, and an EN 12001 safety checklist. It’s a quick filter—and it saves headaches later.

Citations

1. ISO 28017: Rubber hoses and hose assemblies for high-pressure concrete pumping — Specification.
2. EN 12001: Rubber or plastics hoses and hose assemblies for concrete pumping — Safety requirements.
3. ACI 304.2R: Placing Concrete by Pumping Methods (American Concrete Institute).
